For rectangular columns
Bauframe VZ 60 kN column formwork

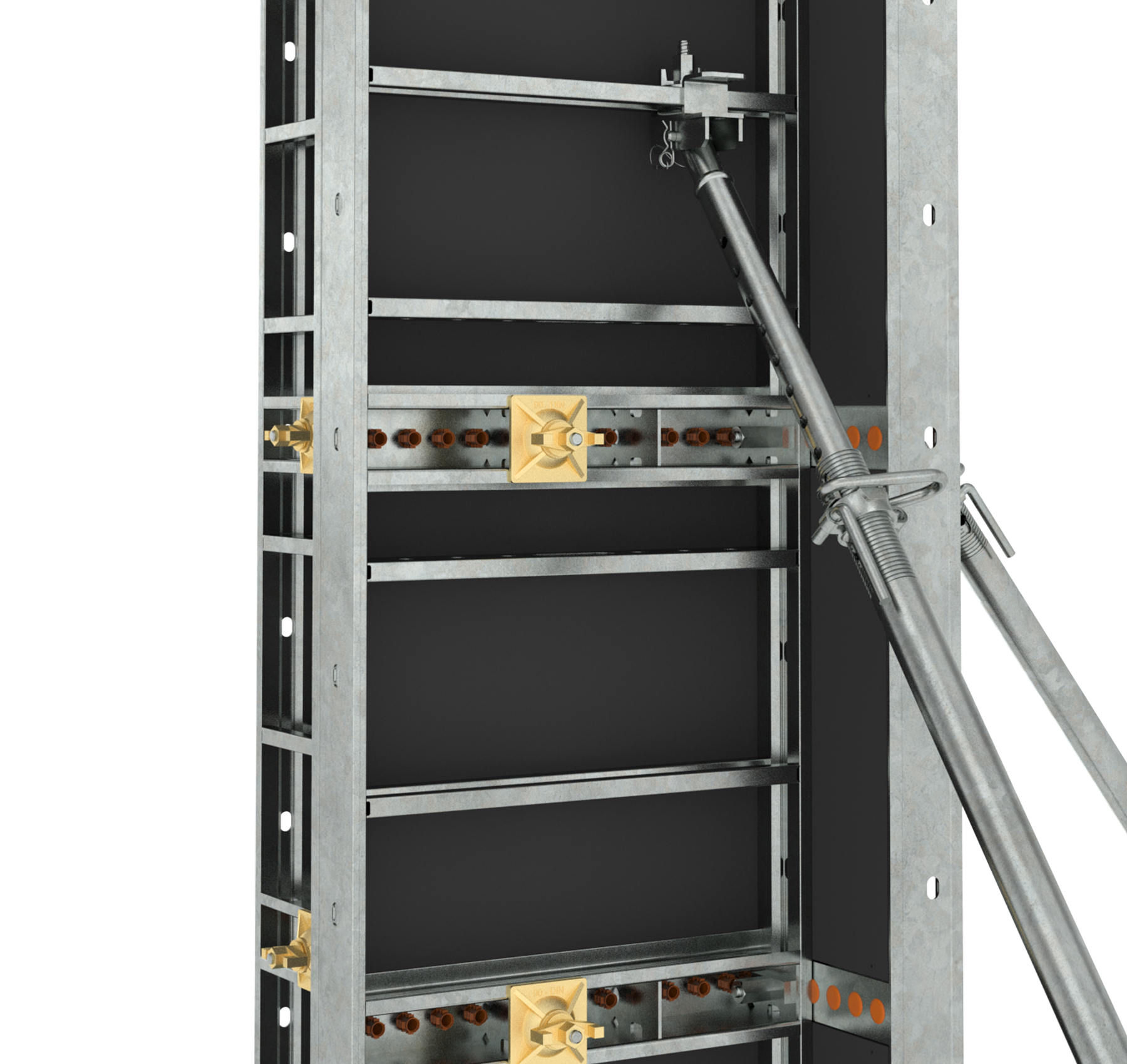

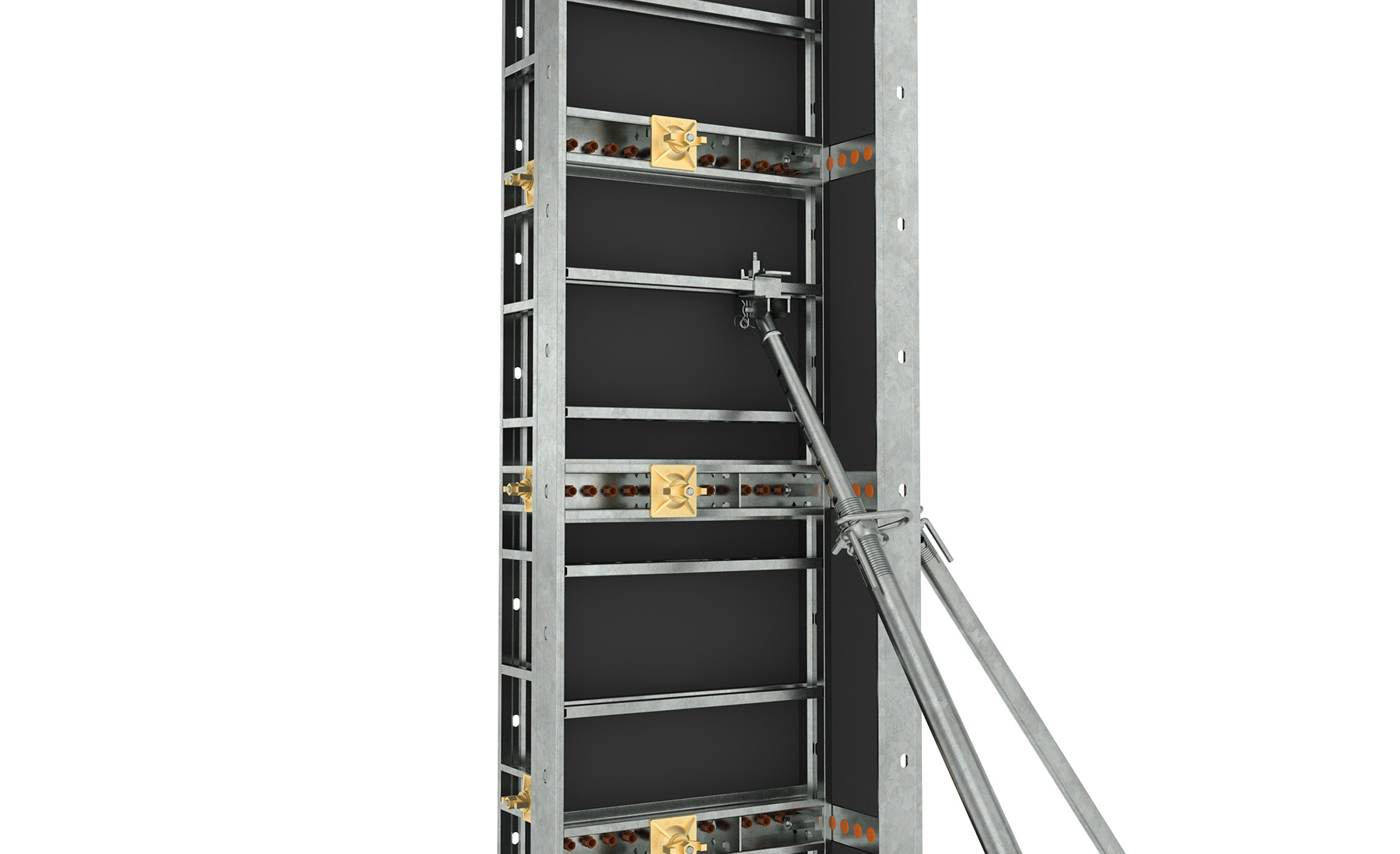

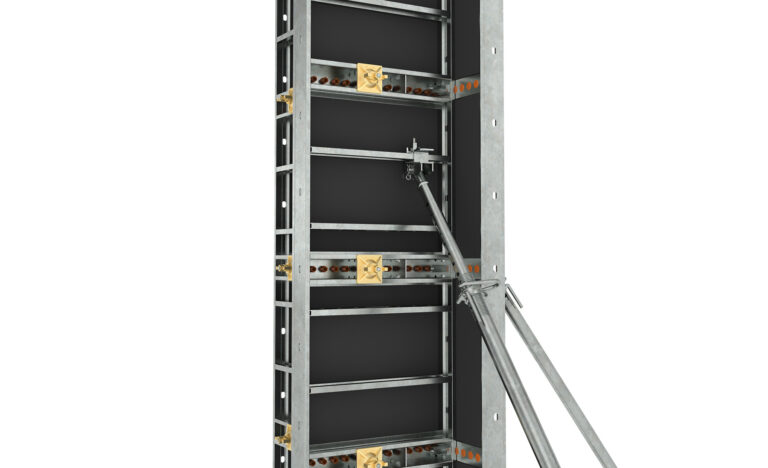

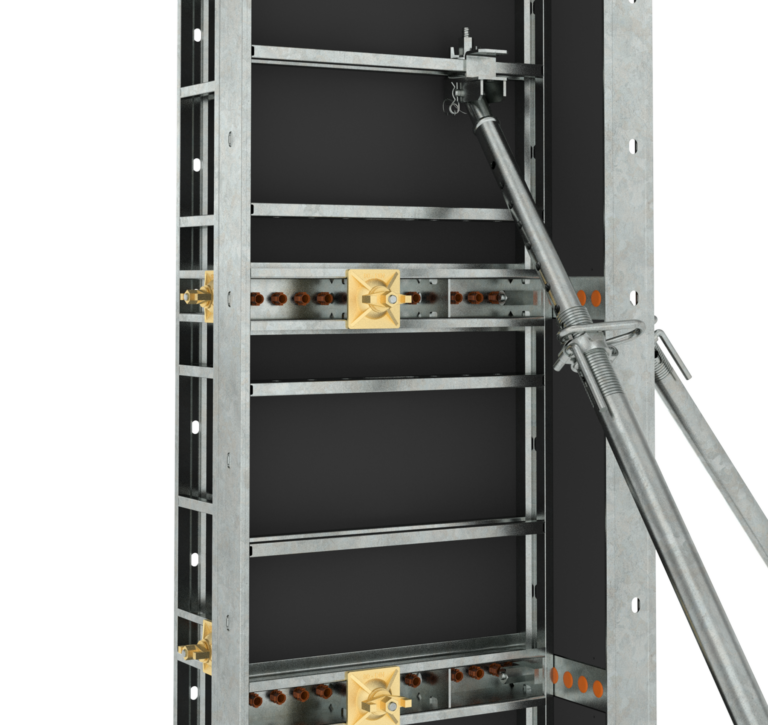

A multi-hole panel from the Bauframe 60 kN system, designed for forming rectangular columns. Steel profiles with holes spaced every 5 cm allow panels to be set in a right-hand configuration and connected into a rigid, high-strength column structure.
60 kN/m² concrete pressure resistance
5 cm hole spacing
Compatible with Rasto
Switch between the information by clicking the tabs.
Basic specifications
Panel widths
70/90 cm
Panel heights
90/150/270/300 cm
Hole spacing
5 cm
Frame
external steel profile 121×20 mm and internal 105×25 mm
Galvanizing
fully hot-dip galvanized
Facing
high-quality 15 mm birch plywood
Max. concrete pressure
60 kN/m2
Compatibility
Bauframe, Bauframe ALU, Bauschal, Rasto, MidiBox, Rhino
Standard connectors
Baukrane wedge clamps, VZ pin + nut
Application
columns and reinforced concrete cores
Delivery and order terms
Shipping to
Poland and EU countries
Delivery method
Full container and truckload shipments, delivered directly to the construction site or customer’s warehouse
Lead time
24-48 hours for items available from stock
Minimum order
We quote complete formwork systems based on the project requirements. Purchase only.
Offer for contractors and wholesalers
Special terms for contractors and wholesalers – contact us for a sales quote.
Do you need a quote for a specific formwork quantity?
Make a call
Write on WhatsApp
What sets Bauframe VZ 60 kN column formwork apart?
5 cm hole spacing

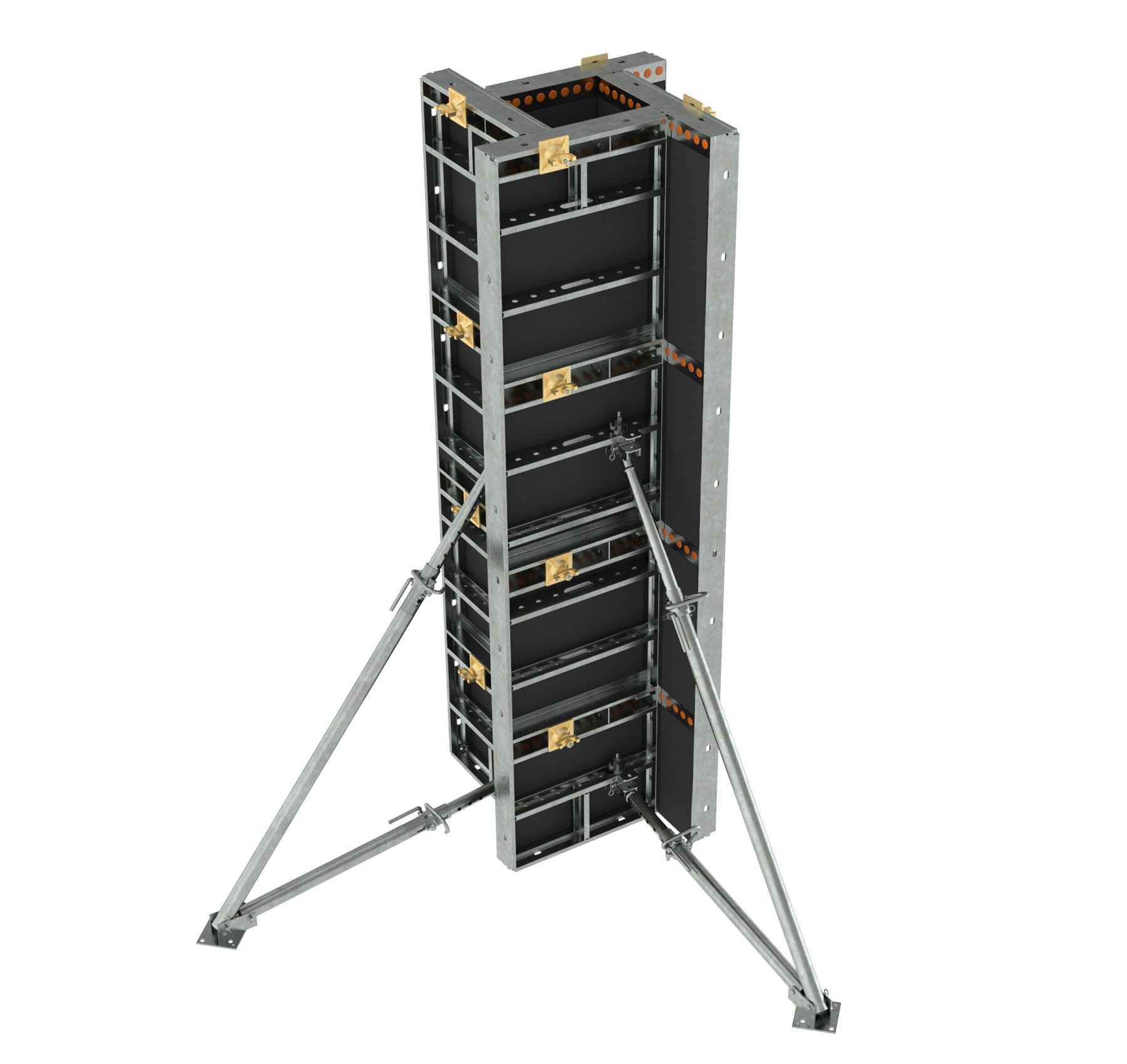

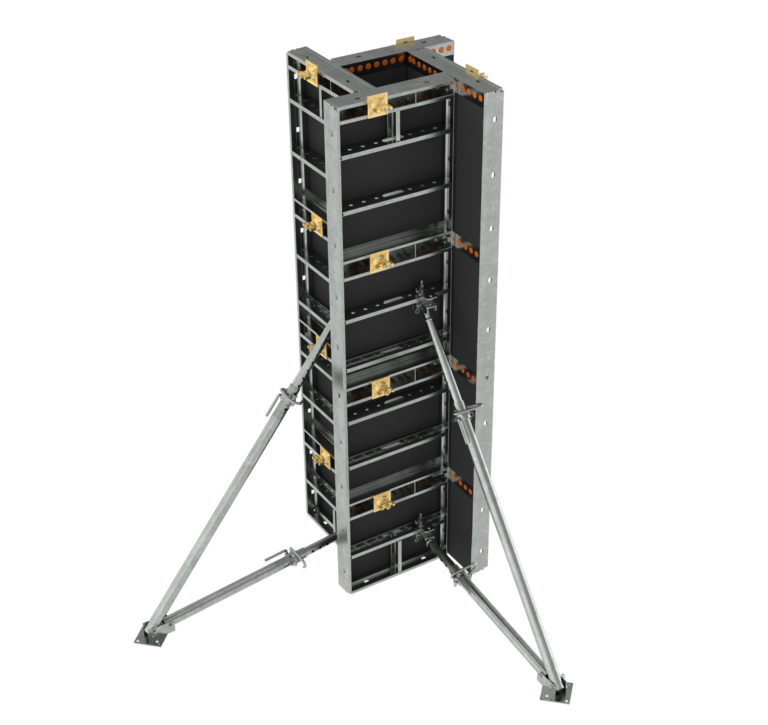

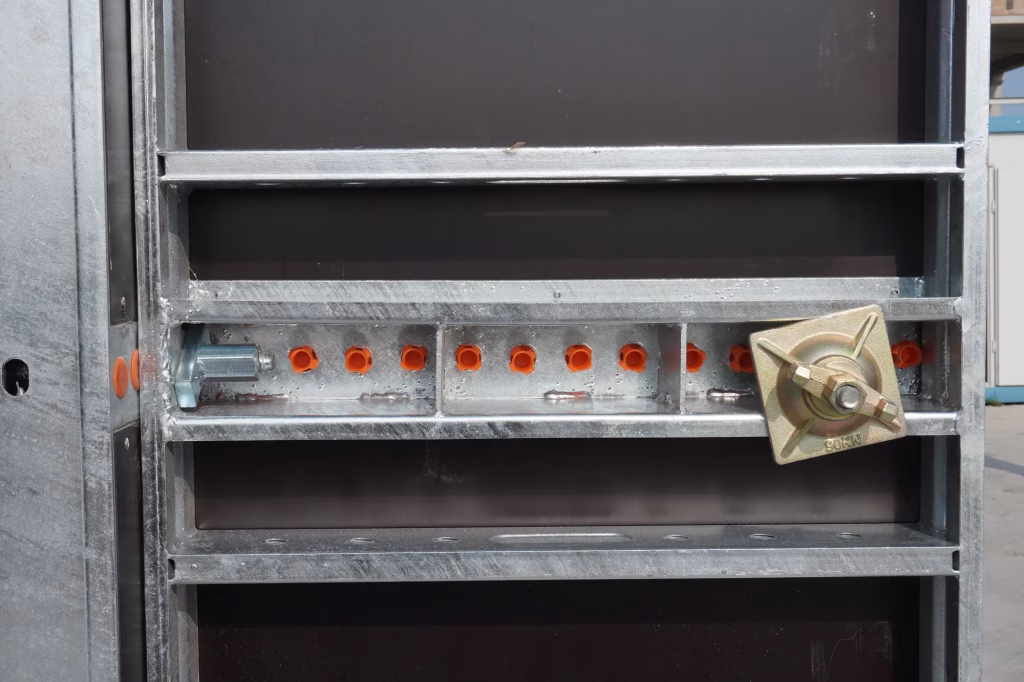

Steel profiles with holes spaced every 5 cm allow adjustment of the distance between panels, so the assembly can be matched to the required column cross-section. Four VZ panels connected directly to each other form a closed, rigid rectangular column structure – with no additional frames or clamps required.
For walls and columns

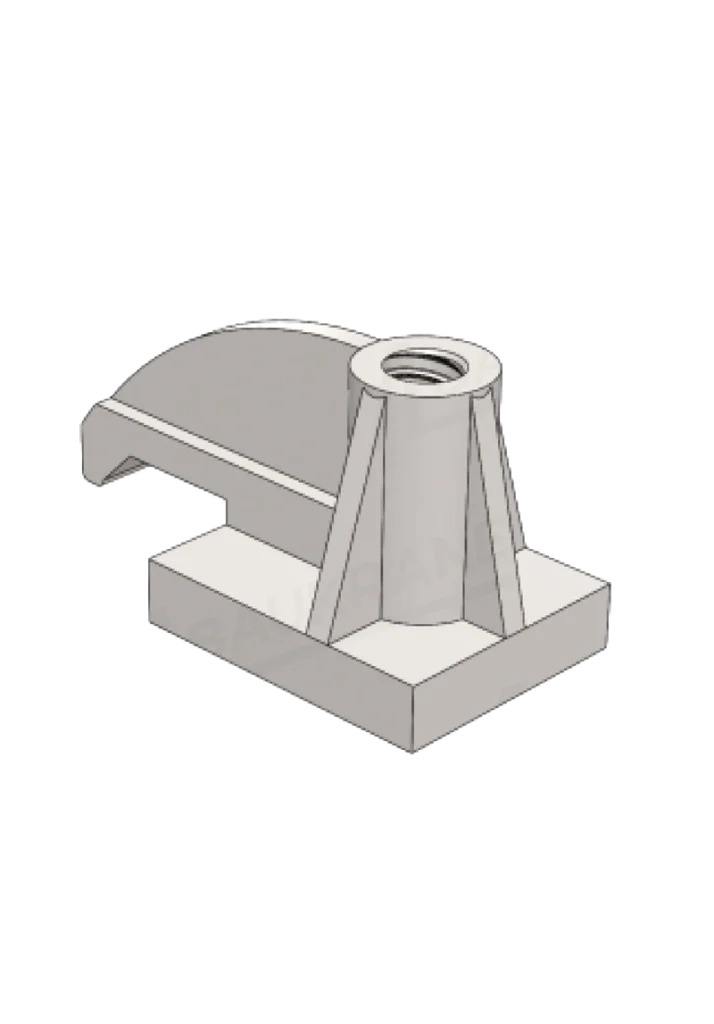

The VZ panel is not a separate column-only formwork system. It is part of the same Bauframe set used for walls. The VZ corner connector allows it to be joined with a standard Bauframe panel when forming corners. Contractors don’t need to store two separate systems or plan logistics around two different products – one Bauframe system handles both columns and walls.
Reinforced frame corners
The frame profile corners are reinforced, increasing resistance to deformation during transport, handling, and use under load. The formwork withstands fresh concrete pressure of 60 kN/m² throughout its entire service life.
Universal accessories
Bauframe VZ panels connect using universal Baukrane accessories or any accessories compatible with Rasto-type systems. Building out a complete formwork system is simpler, and the risk of assembly errors is reduced.
Compatible with Rasto
Bauframe VZ connects with both the steel and aluminium variants of Bauframe. If you are already working with Rasto-type formwork on site, VZ panels will connect to your existing system without replacing any accessories. This matters especially when expanding your formwork set mid-project or working across multiple sites at the same time.
Request a quote for Bauframe VZ 60 kN formwork – for your construction project or wholesale offer.
We will determine the required number of components, prepare a quotation, and confirm availability within 24 hours. A complete system is available for purchase.
Make a call
Write on WhatsApp
Check out Baukrane projects
Bauframe VZ indexes
7241070150
PANEL BAUFRAME 70×150 VZ
70.0
150.0
50.53
7241070270
PANEL BAUFRAME 70×270 VZ
70.0
270.0
86.34
7241170271
PANEL BAUFRAME 70×270 VZ M-BOARD
70.0
270.0
0.0
7241070300
PANEL BAUFRAME 70×300 VZ
70.0
300.0
111.59
7241070090
PANEL BAUFRAME 70×90 VZ
70.0
90.0
40.46
7241190150
PANEL BAUFRAME 90×150 VZ
90.0
150.0
61.16
7241190270
PANEL BAUFRAME 90×270 VZ
90.0
270.0
106.0
7241190271
PANEL BAUFRAME 90×270 VZ M-BOARD
90.0
270.0
0.0
7241190300
PANEL BAUFRAME 90×300 VZ
90.0
300.0
140.0
7241190090
PANEL BAUFRAME 90×90 VZ
90.0
90.0
51.68
7270005300
Supplementary insert 5×300
21.45
7270005270
Supplementary insert 5×270
18.92
7270005150
Supplementary insert 5×150
11.66
7271000002
Baukrane wedge lock
4.2
7271000003
Baukrane UNI wedge lock
5.5
7271000090

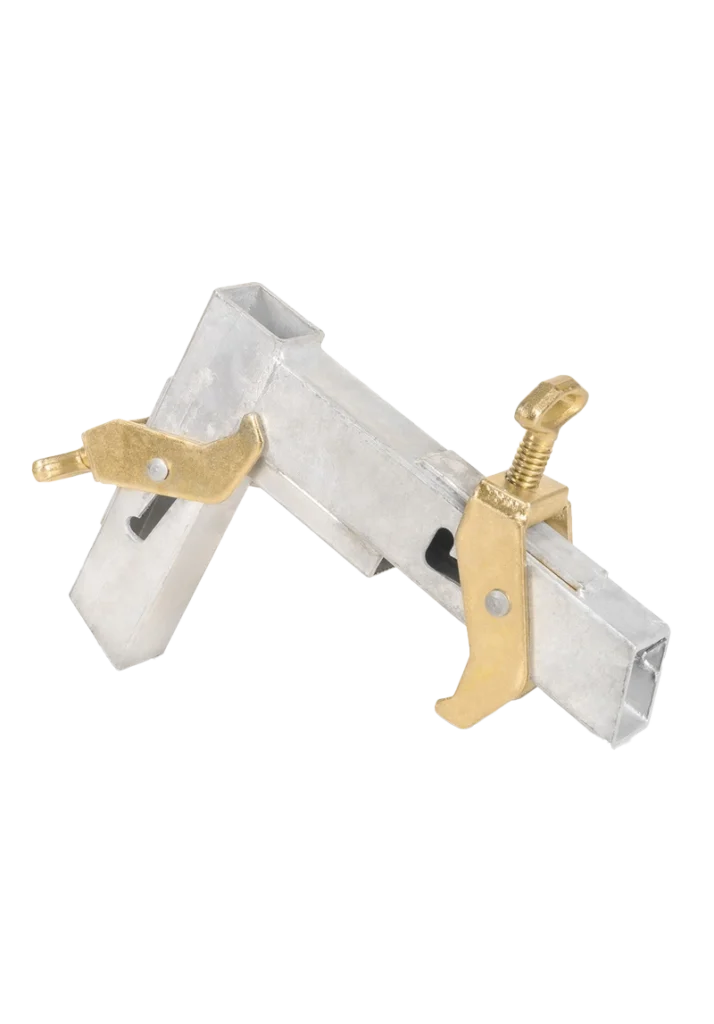

Corner lock
6.5
7270000120
Centering tie 120
0.79
7270015200
Centering tie 200
0.9
7270000030
Rigid alignment clamp 30
0.71
7270000050
Rigid alignment clamp 50
1.02
7241400300
BAUFRAME external corner 0×300
0
300
7241400270
BAUFRAME external corner 0×270
0
270
7241400150
BAUFRAME external corner 0×150
0
150
7241400090
BAUFRAME external corner 0×90
0
90
7241330300
BAUFRAME internal corner 30×30×300
30
300
81.2
7241330270
BAUFRAME internal corner 30×30×270
30
270
72.2
7241330150
BAUFRAME internal corner 30×30×150
30
150
42.46
7241330090
BAUFRAME internal corner 30×30×90
30
90
27.58
7242230300
BAUFRAME ALU internal corner 30×30×300
30
300
44.74
7242230270
BAUFRAME ALU internal corner 30×30×270
30
270
40.26
Photo Gallery of Bauframe VZ 60 kN
