Load capacity 50 kN
Bautekk VT 50 kN lightweight column formwork
The Bautekk VT 50 kN multi-hole formwork panel is part of the Bautekk 50 kN system, designed for forming walls and rectangular columns with variable cross-sections. Steel profiles with holes spaced every 5 cm allow adjustment of the distance between panels and connection into a closed, rigid rectangular column structure – with no additional components required.
Manual assembly without crane<
5 cm hole spacing
Compatible with Tekko
Switch between information by clicking About the Product and Technical Information
Basic specifications
Panel widths
60/70/90 cm
Panel heights
90/120/150 cm
Hole spacing
5 cm
Frame
steel profile, 8 cm thick
Panel weight
27.01 kg – 59.10 kg
Facing
12 mm birch plywood
Strength
50 kN / m²
Standard connectors
Bautekk connector, VZ pin and VZ nut
Compatibility
Tekko, Pionbox, Budouni, Minibox
Application
columns and reinforced concrete cores
Delivery and order terms
Shipping to
Poland and EU countries
Delivery method
Full container and truckload shipments, delivered directly to the construction site or customer’s warehouse
Lead time
24-48 hours for items available from stock
Minimum order
We quote complete formwork systems based on the project requirements. Purchase only.
Offer for contractors and wholesalers
Special terms for contractors and wholesalers – contact us for a sales quote.
Do you need a quote for a specific formwork quantity?
Make a call
Write on WhatsApp
What distinguishes the BAUTEKK VT 50kN lightweight column formwork?

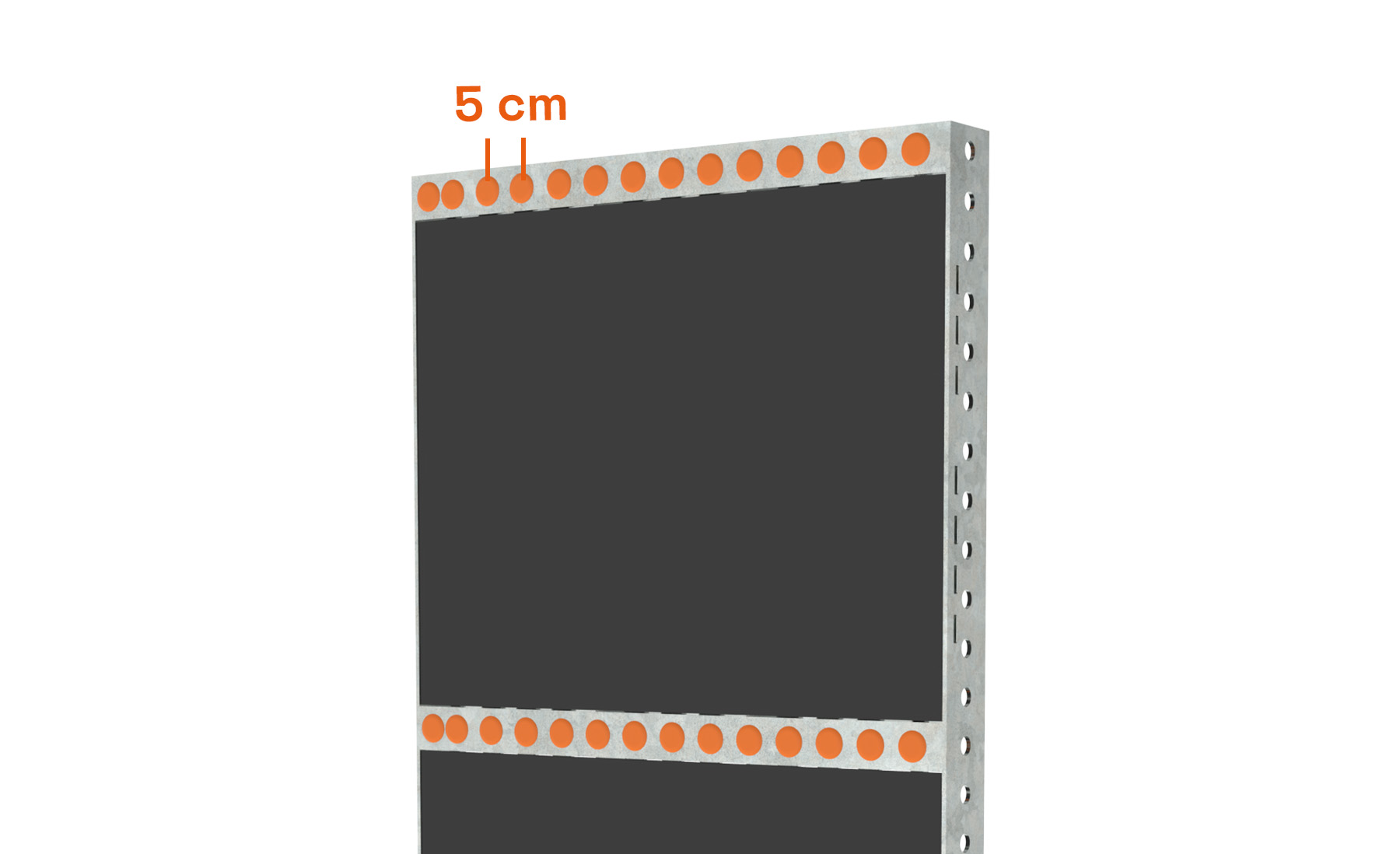

Holes every 5 cm
Steel profiles with holes spaced 5 cm apart allow for adjustment of the distance between the panels, so the set can be adapted to the required column cross-section. Four VT panels connected with corner tensioners form a closed, rigid rectangular column structure—without additional frames or clamps.
A wall and a pole from the same set
The Bautekk VT panel is a component of the Bautekk formwork system. If required, the same set of panels can be used to form rectangular columns, reinforced concrete walls, and foundations. One formwork system in stock, two applications on site.
Easy to transport and install
The 8-cm-thick frame profile and 12-mm plywood result in a lower weight per panel compared to heavier wall systems. The kit can be carried and installed by hand. It works well where access to heavy equipment is limited or site conditions do not allow for its use.
Compatible with Tekko
Bautekk VT is compatible with Tekko-type systems. You can integrate the panels with your existing formwork system without replacing the connectors or the entire formwork system.
Request a quote for Bautekk VT 50 kN column formwork – for your construction project or wholesale offer.
We will determine the required number of components, prepare a quotation, and confirm availability within 24 hours. A complete system is available for purchase.
Make a call
Write on WhatsApp
Indexes of Bautekk VT 50kN formwork
7221S60120
PANEL BAUTEKK 60×120 VT
60.0
120.0
32.88
7221S60150
PANEL BAUTEKK 60×150 VT
60.0
150.0
40.83
72210S6090
PANEL BAUTEKK 60×90 VT
60.0
90.0
27.1
7221S70120
PANEL BAUTEKK 70×120 VT
70.0
120.0
36.42
7221S70150
PANEL BAUTEKK 70×150 VT
70.0
150.0
49.6
72210S7090
PANEL BAUTEKK 70×90 VT
70.0
90.0
29.48
7221S90120
PANEL BAUTEKK 90×120 VT
90.0
120.0
43.31
7221S90150
PANEL BAUTEKK 90×150 VT
90.0
150.0
59.1
72210S9090
PANEL BAUTEKK 90×90 VT
90.0
90.0
35.33
7270B00001
Bautekk connector
0.6
7270B00004
Bautekk tensioning pin Ø15mm
1.5
7270B00002
Bautekk wedge
0.15
7000000070
Nut Ø70
0.5
7000000100
Nut Ø100
0.8
7000120120
Hinged nut 113×113 square
1.1
7270B00003
Bautekk pin
0.15
7270B00005
Bautekk double pin
0.15
72700B0021
Bautekk corner clamp
0.4
7270015075
DW-15 tie rod 75cm
1.12
Photo gallery of Bautekk VT 50kN
Download the Baukrane catalogue and see the full offer.
Request a quote for Bautekk VT 50 kN formwork – for your construction project or wholesale offer.
We will determine the required number of components, prepare a quotation, and confirm availability within 24 hours. A complete system is available for purchase.
