Load capacity 60 kN/m²
The permissible concrete pressure is as high as 60 kN/m².
BAUFRAME ALU 60 kN
Ultralight aluminium wall formwork for manual assembly without the use of a crane. Ideal for all reinforced concrete projects where the use of heavy equipment is impossible or difficult.
Low weight

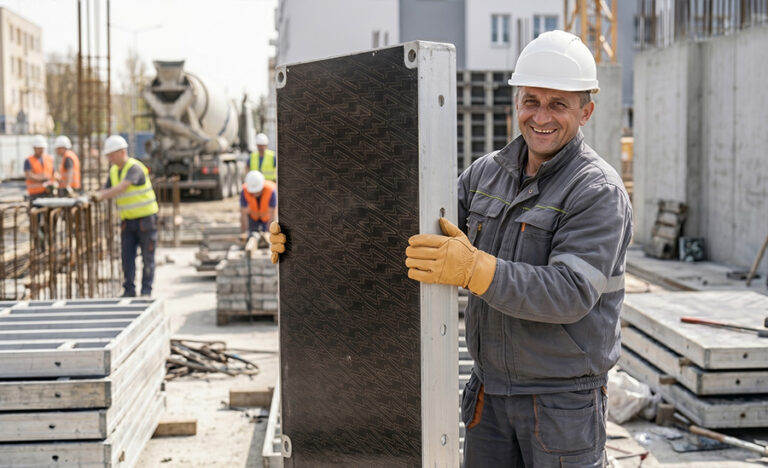

A single panel can be carried by two people.
Compatible with Rasto
It can be connected with other formworks of the Rasto type.
Switch between pieces of information by clicking on the tabs.
Where mobility and work speed matter
BAUFRAME-ALU is an aluminium wall formwork designed for casting reinforced concrete walls up to 6 metres high in residential and industrial construction. The lightweight structure made of hardened 6261 aluminium alloy allows the formwork to be assembled without the use of a crane. Two people are enough to carry a single panel. It can be combined with Rasto-type formwork panels and universal Baukrane accessories.
Technical specifications
Width of panels
25/30/45/50/55/60/65/75/90 cm
Panel heights
150/270/300 cm
Universal panels
70 x 90 cm
Inner corner
30 x 30 cm
Hinged corner
15 x 15 cm, 30 x 30 cm
Angle range
60° do 150°
Frame
a profile with a thickness of 12 cm
Shuttering skin
15 mm birch plywood
Avarage weight
23,45 kg/m²
Max. concrete pressure
60 kN/m²
Compatibility
Bauframe, Bauschal, Rasto
Standard connectors
Baukrane wedge clamp
Are you interested in BAUFRAME formwork? Contact us using phone or WhatsApp.
Call us
Write on WhatsApp
How does BAUFRAME ALU stands out from other formworks?
Load capacity 60 kN/m²
The frame of each panel is made of hardened 6261 aluminium alloy, with an external profile 121 mm high and 20 mm wide, and an internal profile 105 mm high and 20 mm wide. The structure designed in this way withstands the pressure of fresh concrete mix at the level of 60 kN/m² — identical to the steel version of the system, with 30% less weight.
Compatible with Rasto
It can be combined with the steel BAUFRAME version, the heavy-duty BAUSCHAL system, as well as other Rasto-type panels. Reduce formwork costs by combining BAUFRAME ALU with other formwork systems on site. The panels can be connected using Baukrane universal formwork accessories. Multi-hole panels are also available in the ALU variant.
Manual assembly without a crane
The most popular 90×300 panel weighs only 63 kg, and the system’s surface weight is 23.45 kg/m². Thanks to this, the panels can be carried and set up manually, without involving lifting equipment. On construction sites where a crane is not available or its use is difficult, BAUFRAME ALU makes it possible to maintain continuity of formwork operations.
Durable birch plywood
The panel sheathing is made of 15 mm birch plywood covered with a phenolic film with a weight of 220 g/cm². Thanks to this, the formwork will work for a long time without the need to replace the plywood.
Steel support plate protect the plywood
Through holes for tie rods are protected with aluminium rings set directly into the plywood. They protect the plywood from damage by the tie rods, which extends the time between sheath replacements and reduces the operating costs of the formwork. M Board plastic plywood is available on special order.
Construction of walls up to 6 metres
The formwork system allows the casting of reinforced concrete walls up to 6 metres in height, proving effective for most typical layouts in residential and industrial construction.
Are you interested in the product? Contact us now!
Make a call
Write on WhatsApp
Are you interested in purchasing equipment?
Contact us using phone or WhatsApp.
Call us
+48 570 555 579Write on WhatsApp
Send message
BAUFRAME ALU indexes
7242030150
PŁYTA BAUFRAME ALU 30×150
30
150
18,95
7242045150
PŁYTA BAUFRAME ALU 45×150
45
150
22,25
7242050150
PŁYTA BAUFRAME ALU 50×150
50
150
24,38
7242060150
PŁYTA BAUFRAME ALU 60×150
60
150
26,9
7242065150
PŁYTA BAUFRAME ALU 65×150
65
150
28,14
7242170150
PŁYTA BAUFRAME ALU 70×150 VZ
70
150
39,85
7242075150
PŁYTA BAUFRAME ALU 75×150
75
150
30,77
7242090150
PŁYTA BAUFRAME ALU 90×150
90
150
35,47
7242030270
PŁYTA BAUFRAME ALU 30×270
30
270
27,66
7242040270
PŁYTA BAUFRAME ALU 40×270
40
270
32,09
7242230150
NAROŻNIK WEWNĘTRZNY BAUFRAME ALU 30×150
30
150
28
7242230270
NAROŻNIK WEWNĘTRZNY BAUFRAME ALU 30×270
30
270
40,26
7242230300
NAROŻNIK WEWNĘTRZNY BAUFRAME ALU 30×300
30
300
44,74
7270005300
Supplementary insert 5×300
21,45
7270005270
Supplementary insert 5×270
18,92
7270005150
Supplementary insert 5×150
11,66
7271000002
Baukrane wedge lock
4,2
7271000003
Baukrane UNI wedge lock
5,5
7271000090
Corner lock
6,5
7270000120
Centre pull 120
0,79
7270015200
Centre puller 200
0,9
7270000030
Bolt tensioner 30
0,71
7270000050
Bolt tensioner 50
1,02
