Load capacity 14 kN
The load capacity is as much as 14 kN.
ECOPROP prop 14 kN
An alternative to the most popular painted Italian-type props on the market. Convenient handling thanks to the adjustment nut on the external thread as well as galvanic zinc coating.
Full hot-dip galvanizing
The prop is protected with hot-dip galvanizing.
Switch between sections by clicking on the tabs.
The ideal
price-to-quality ratio
Ecoprop is a prop fully protected with electro-galvanizing. A construction prop ideal for small and medium slabs thanks to its 14 kN load capacity. The convenient adjustment nut allows for quick striking of the slab. A very good alternative to painted Italian-type props.
Technical specifications
Prop type
300
350
400
500
Outer tube diameter [mm]
60.0
60.0
60.0
60.0
Outer tube wall thickness [mm]
1.8
1.8
2.0
2.0
Inner tube diameter [mm]
50.0
50.0
50.0
50.0
Inner tube wall thickness [mm]
1.8
1.8
2.2
2.2
Base plate thickness [mm]
5.0
5.0
5.0
5.0
Foot plate dimensions [mm]
120×120
120×120
120×120
120×120
Minimum working length [mm]
1750.0
2100.0
2210.0
2800.0
Maximum working length [mm]
3000.0
3500.0
4000.0
5000.0
Weight [kg]
9.4
10.5
13.3
16.0
Are you interested in Ecoprop? Contact us using phone or WhatsApp.
Make a call
Write on WhatsApp
How does Ecoprop stand out from other props?

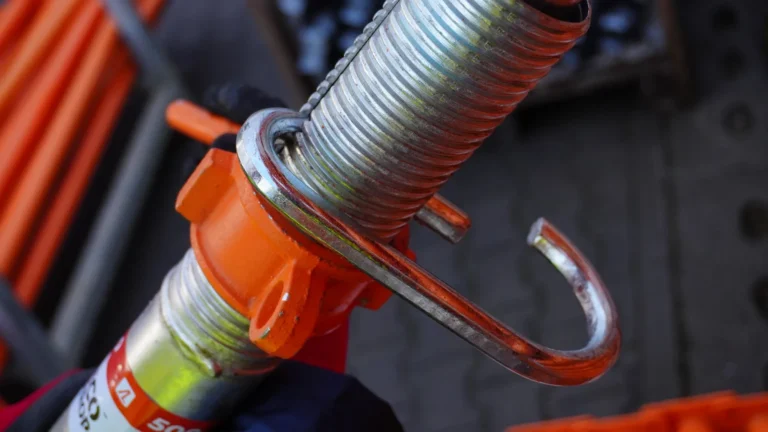

External thread with a cast adjustment nut
The external thread with a cast nut speeds up and facilitates height adjustment, which significantly reduces the time needed to strike the slab formwork.
10 cm hand protection zone
The safety zone protects hands from the unexpected fall of the prop, minimizing the risk of injuries during work.
Hot-dip galvanized prop
Full hot-dip galvanizing of the inner and outer tube extends the service life of the prop and its resistance to difficult weather conditions.
Popular sizes
The prop is available in popular sizes of 3 m, 3.5 m, 4 m, and 5 m.
Are you interested in the product? Contact us now!
Make a call
Write on WhatsApp
Are you interested in purchasing equipment?
Contact us using phone or WhatsApp.
Call us
+48 570 555 579Write on WhatsApp
Send a message
Ecoprop Indexes
712100E300
ECOPROP 300 PROP
9.4
712100E350
ECOPROP 350 PROP
10.5
712100E400
ECOPROP 400 PROP
13.3
712100E500
ECOPROP 500 PROP
16
Parameter
ECOPROP 300
ECOPROP 350
ECOPROP 400
ECOPROP 500
Working height of the prop [cm]
300
350
400
500
Allowable load [kN]
15.9
14.2
11
6.3
Failure load [kN]
23.9
21.3
16.5
9.4
