Load capacity 60 kN/m²
The permissible pressure is as much as 60 kN/m².
BAUFRAME wall formwork 60 kN
Universal wall formwork for medium and large investments. It withstands concrete pressure up to 60 kN/m². The wide availability of panel sizes and universal accessories makes the formwork ideally suited to all types of volumetric projects.
6 m in height
It allows walls up to 6 m to be made.
Compatible with Rasto
It can be connected with other formworks of the Rasto type.
Switch between pieces of information by clicking on the tabs.

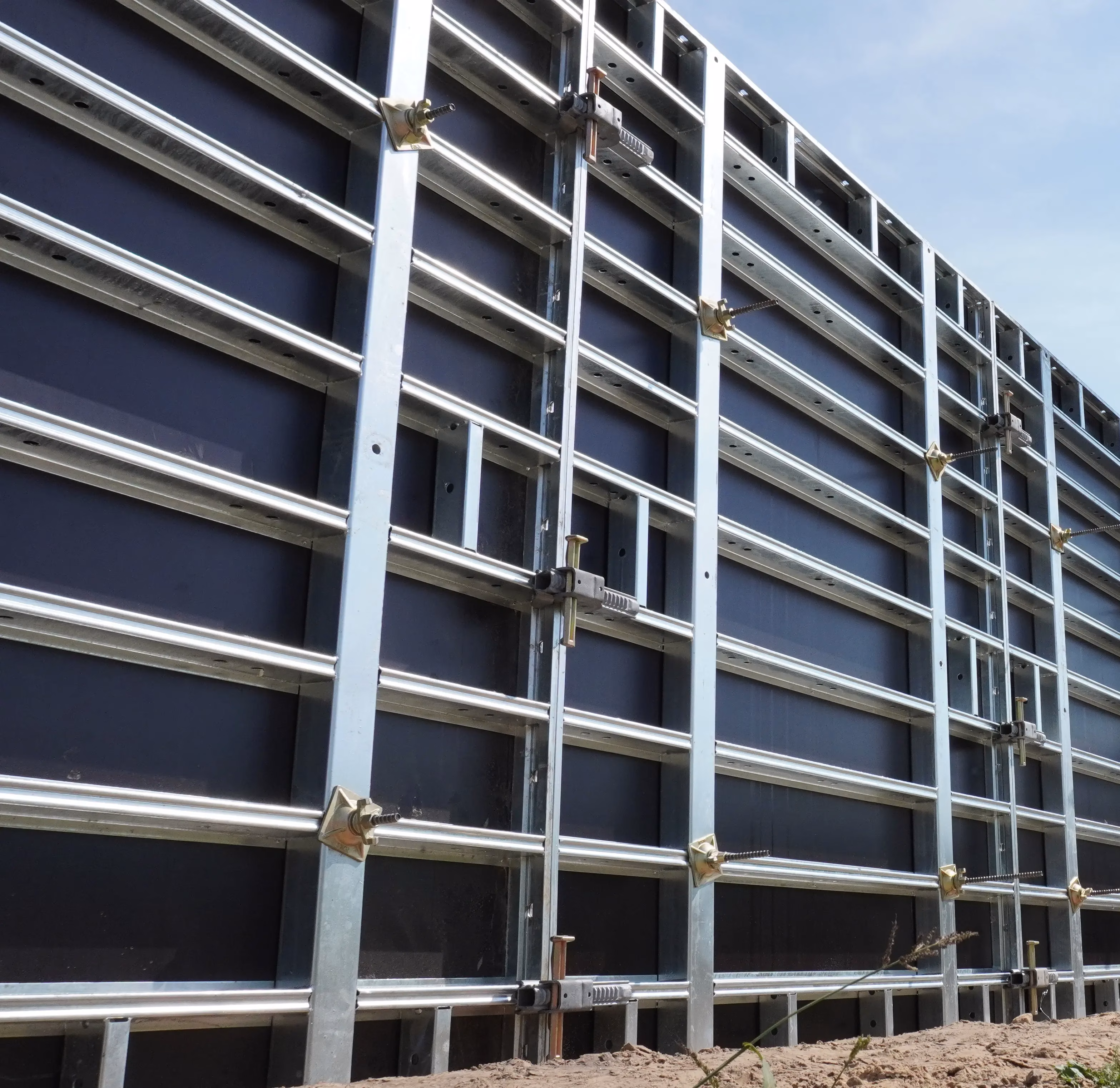

Universal formwork for volumetric projects
Formwork system BAUFRAME is a modern and easy-to-use wall formwork with a strength of 60 kN/m². Parabolic holes for through-ties make it easier to pass the tie to the next panel and protect the facing from damage during assembly and disassembly. Thanks to the variety of sizes, the formworks can be adapted to any building height. The profile structure and universal wedge clamps allow smooth connection of panels with a height offset, adapting to uneven terrain. Possibility of connection with formworks of the Rasto type.
Technical specifications
Panel widths
25/30/45/50/55/60/65/75/90/120/180/240 cm
Panel heights
90/150/270/300 cm
Angle range
60° to 150°
Frame
steel profile, 12 cm thick
Galvanizing
fully hot-dip galvanized
Sheathing
high-quality 15 mm birch plywood
Max. concrete pressure
60 kN/m²
Compatibility
Bauframe ALU, Bauschal, Rasto, MidiBox, Rhino
Standard connectors
Baukrane wedge locks
Application
Reinforced concrete walls, vertical partitions, columns and reinforced concrete cores, mass foundations and foundation footings
Are you interested in BAUFRAME formwork? Contact us using phone or WhatsApp.
Make a call
Write on WhatsApp
What distinguishes
BAUFRAME from other formwork?
Steel support plate protect the plywood
Specially designed steel support plate directly protect the playwood from impacts by the tie rod.

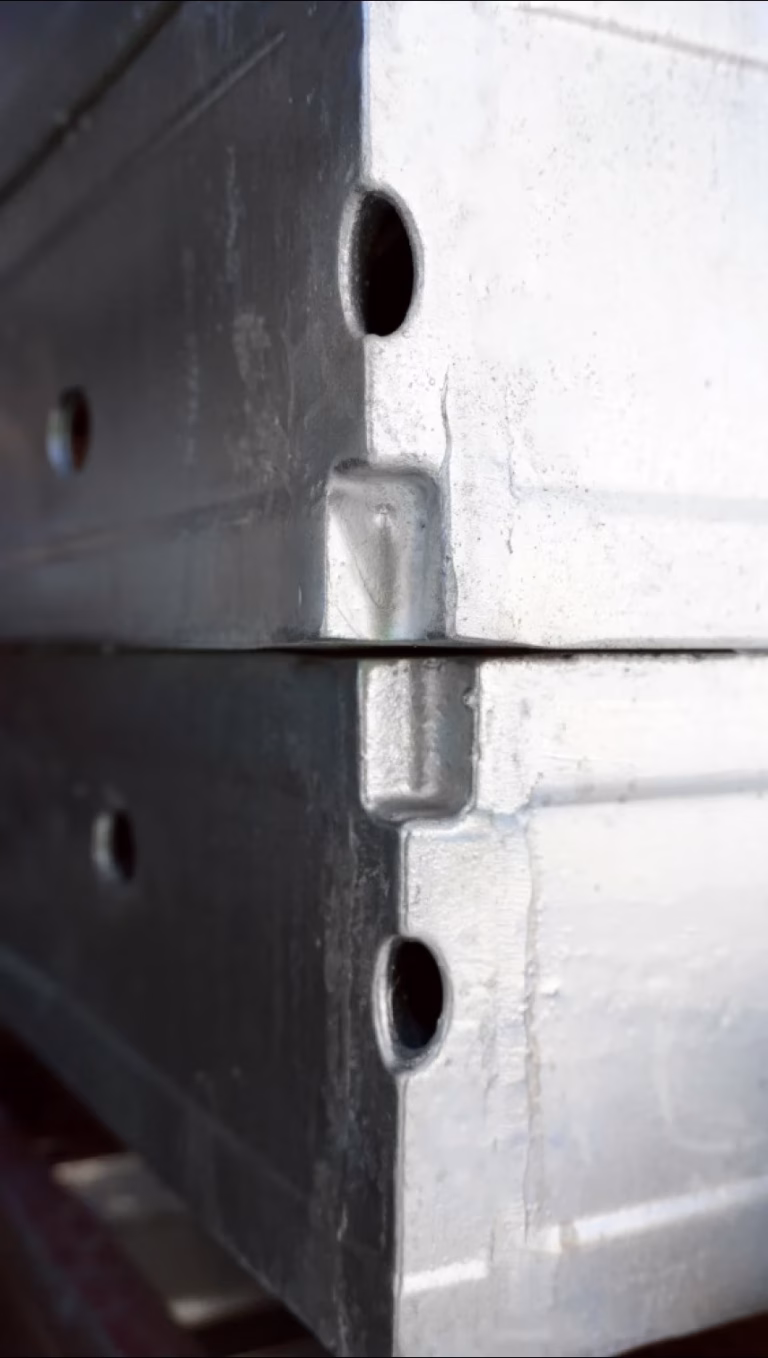

Reinforced corners
They protect the formwork profile even more, increasing its resistance to the pressure of the concrete mix. The maximum strength is as much as 60 kN/m².

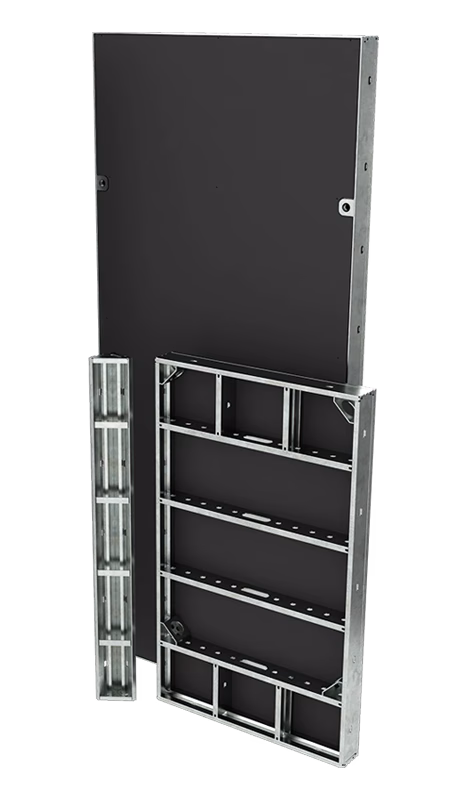

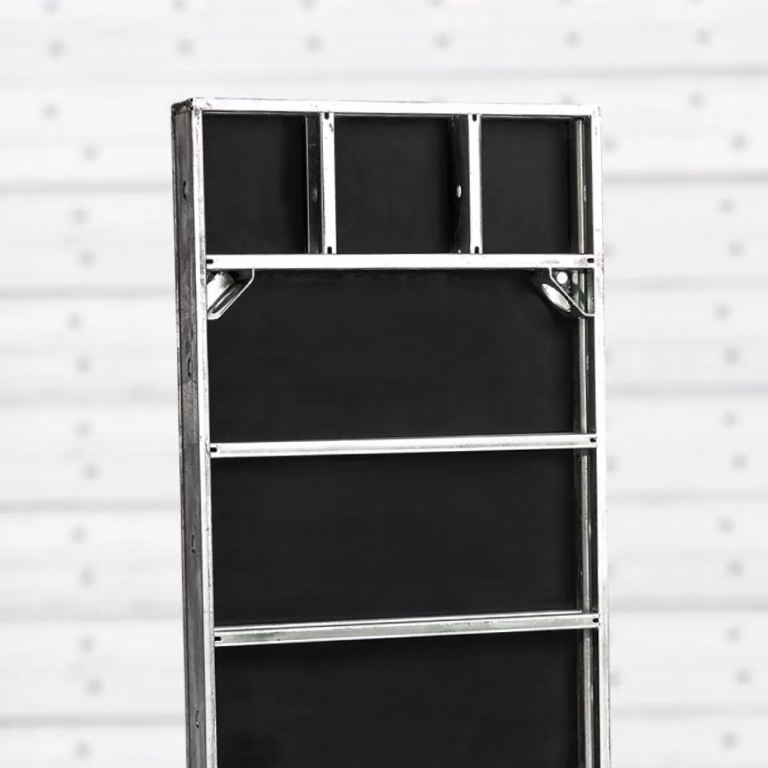

Inserts protecting the frame
At both ends of the panels, we added inserts to further increase the strength of the frame profile. Additional protection when carrying the entire set without the need to disconnect it or during stripping by lift or crane.
Available ALU and VZ variants

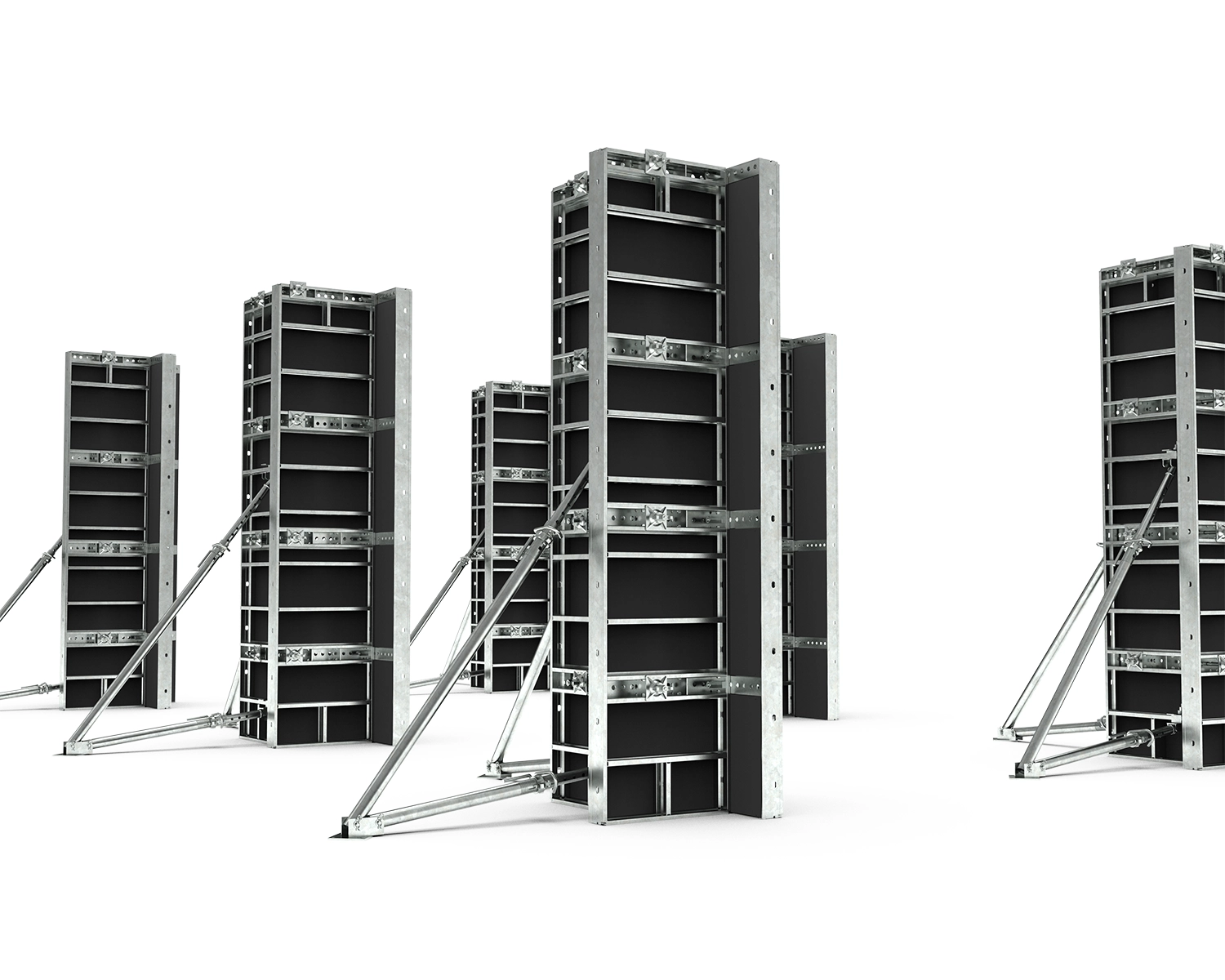

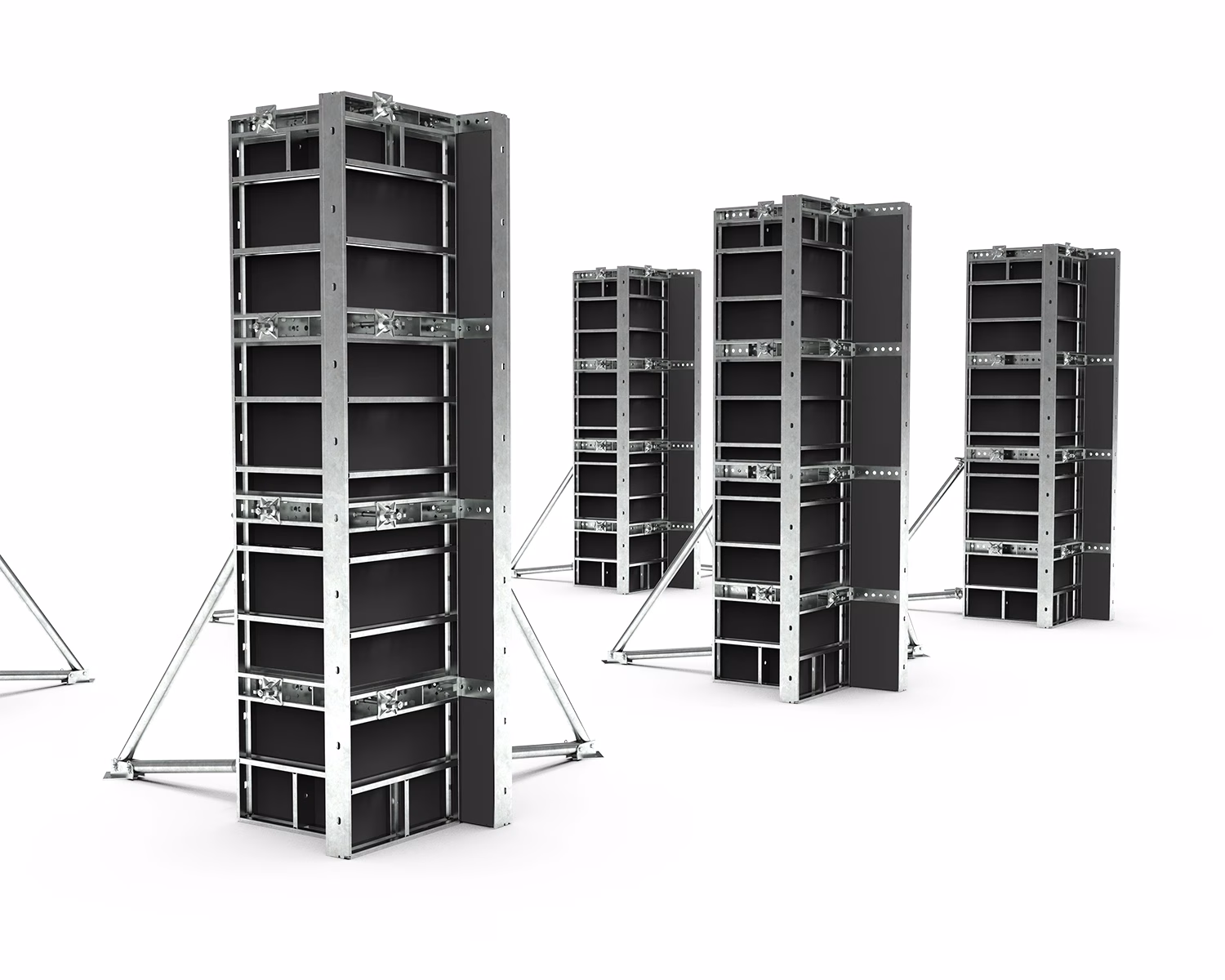

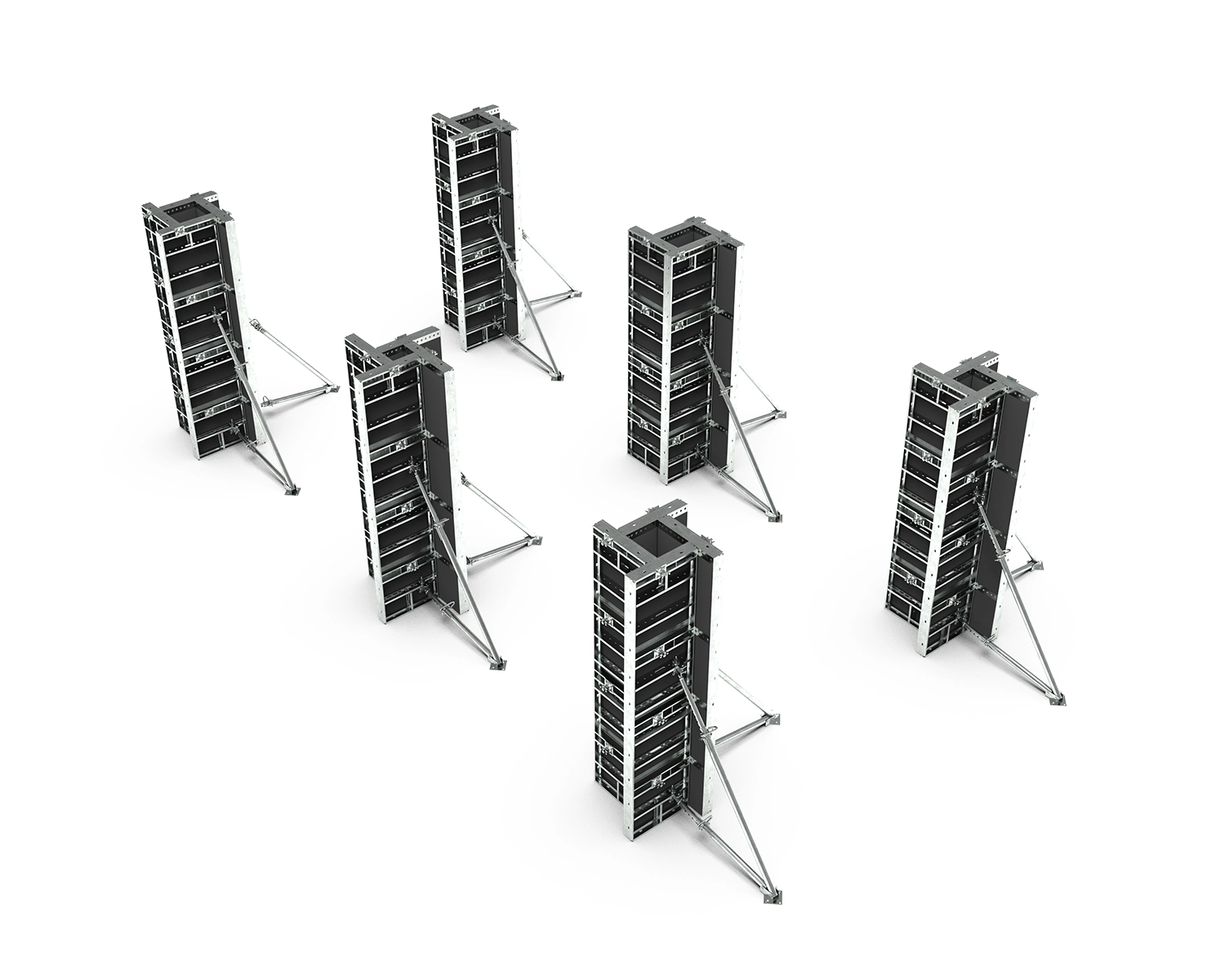

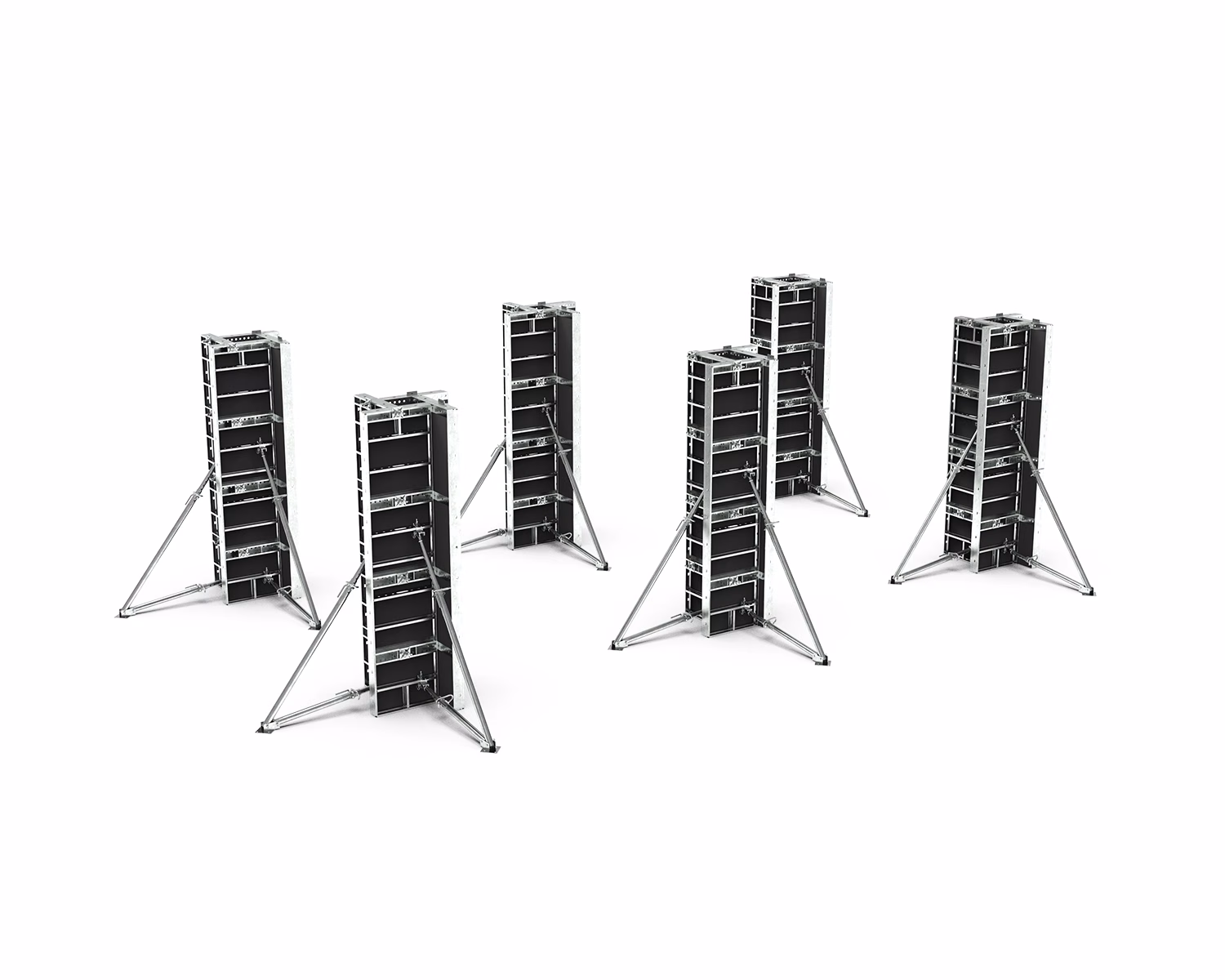

BAUFRAME VZ multi-hole panels are ideally suited for making columns with different cross-sections. The BAUFRAME ALU variant is made of a rigid and hardened aluminum profile. Thanks to its low weight, it is ideal in conditions where it is difficult to operate heavy equipment for transferring formwork panels.

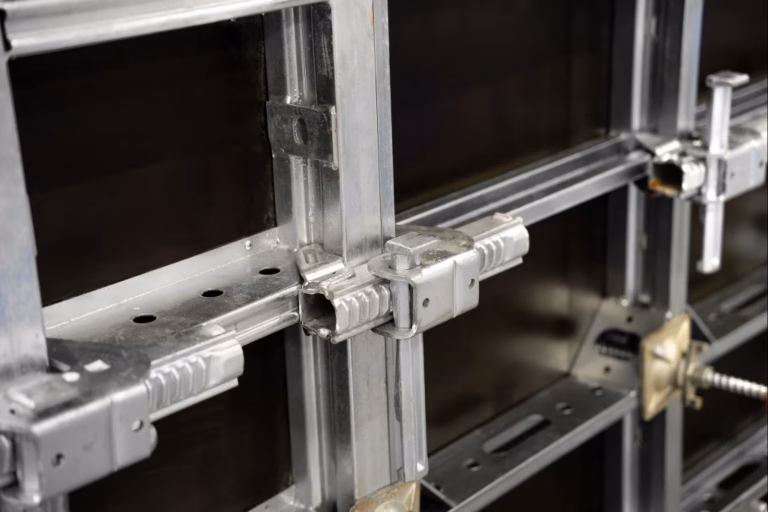

Universal accessories
You will secure the system with universal Baukrane accessories or others compatible with Rasto. Fewer dedicated accessories mean fewer problems on the construction site and easier completion of equipment.

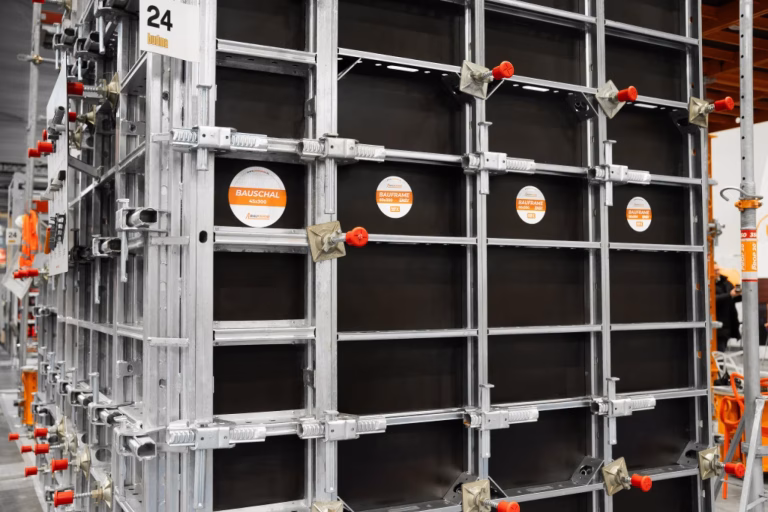

Compatible with Rasto
You can connect Bauframe with the Bauframe ALU variant, the heavy Bauschal system, but also with other systems in the Rasto profile. You work with equipment you know, so installation errors are less likely. Projects are completed faster and more cheaply.
Are you interested in the product? Contact us now!
Make a call
Write on WhatsApp
Example assemblies

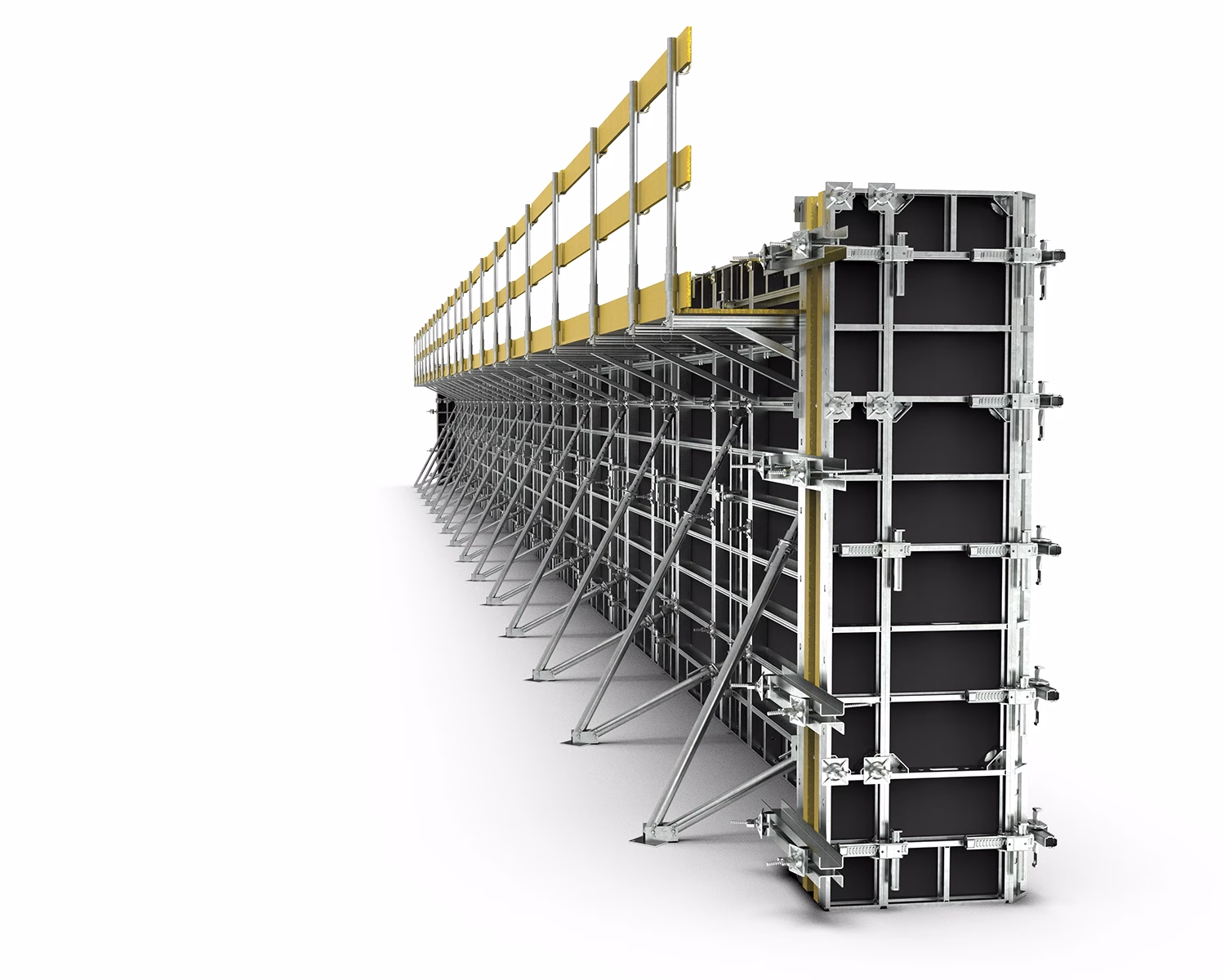

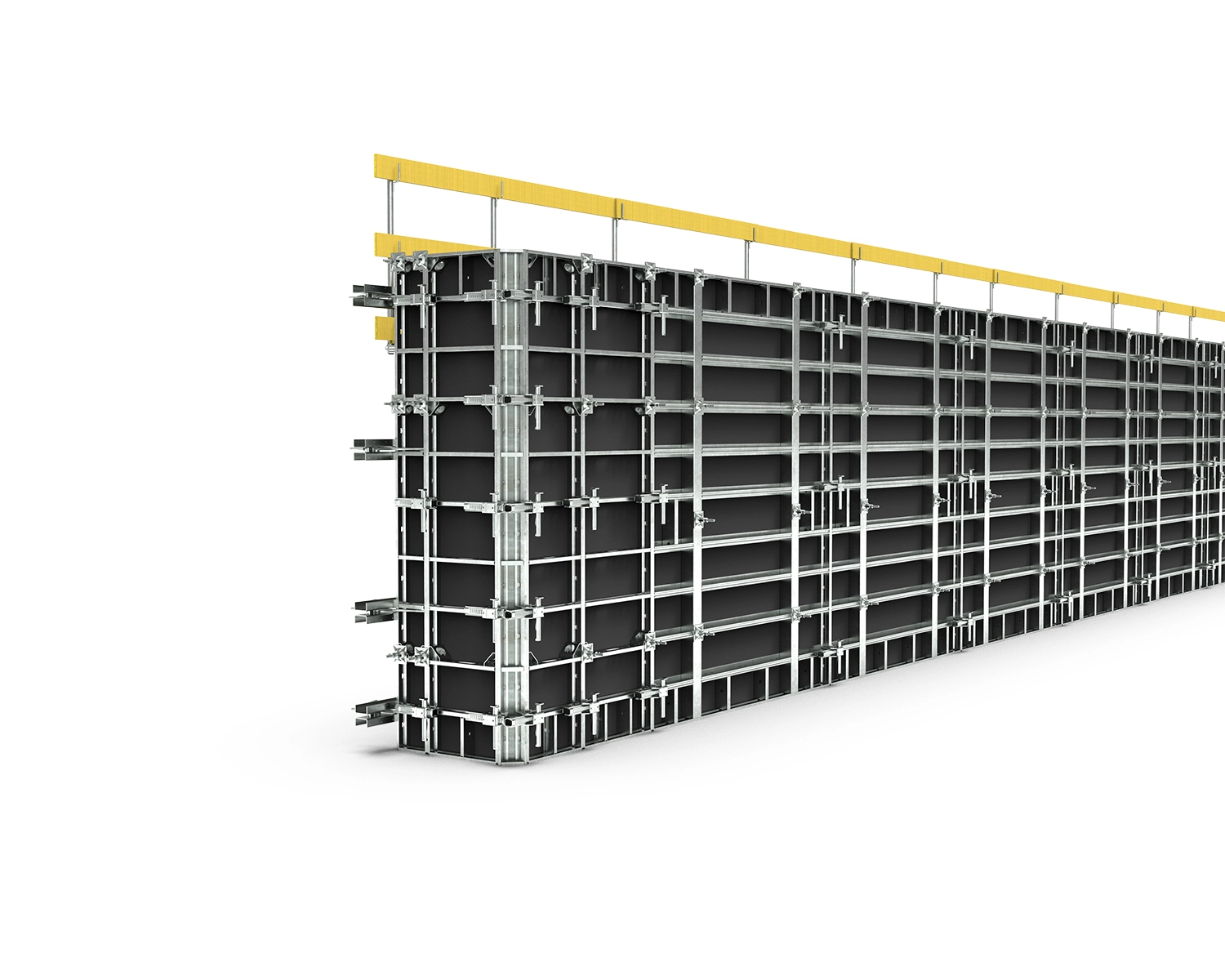

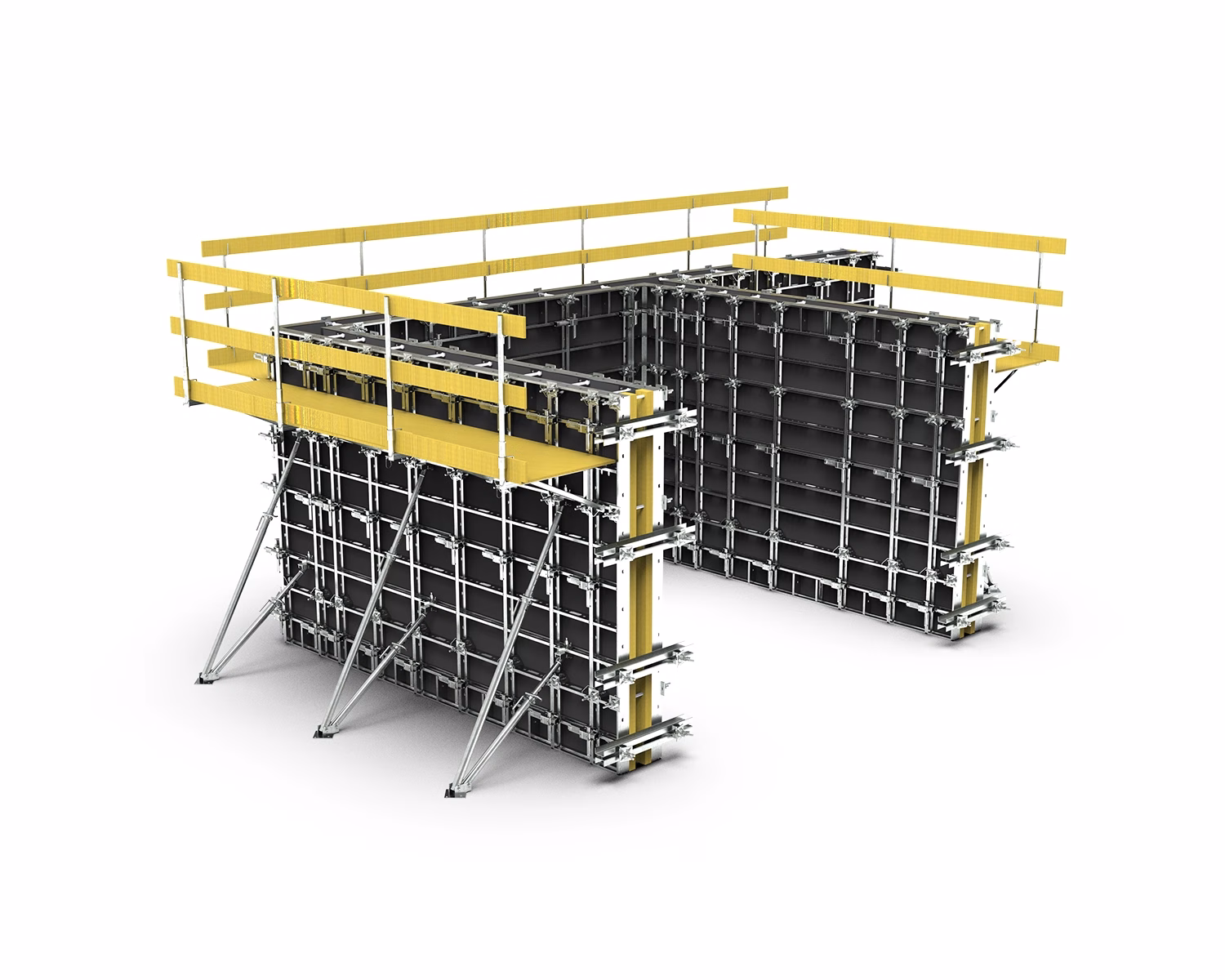

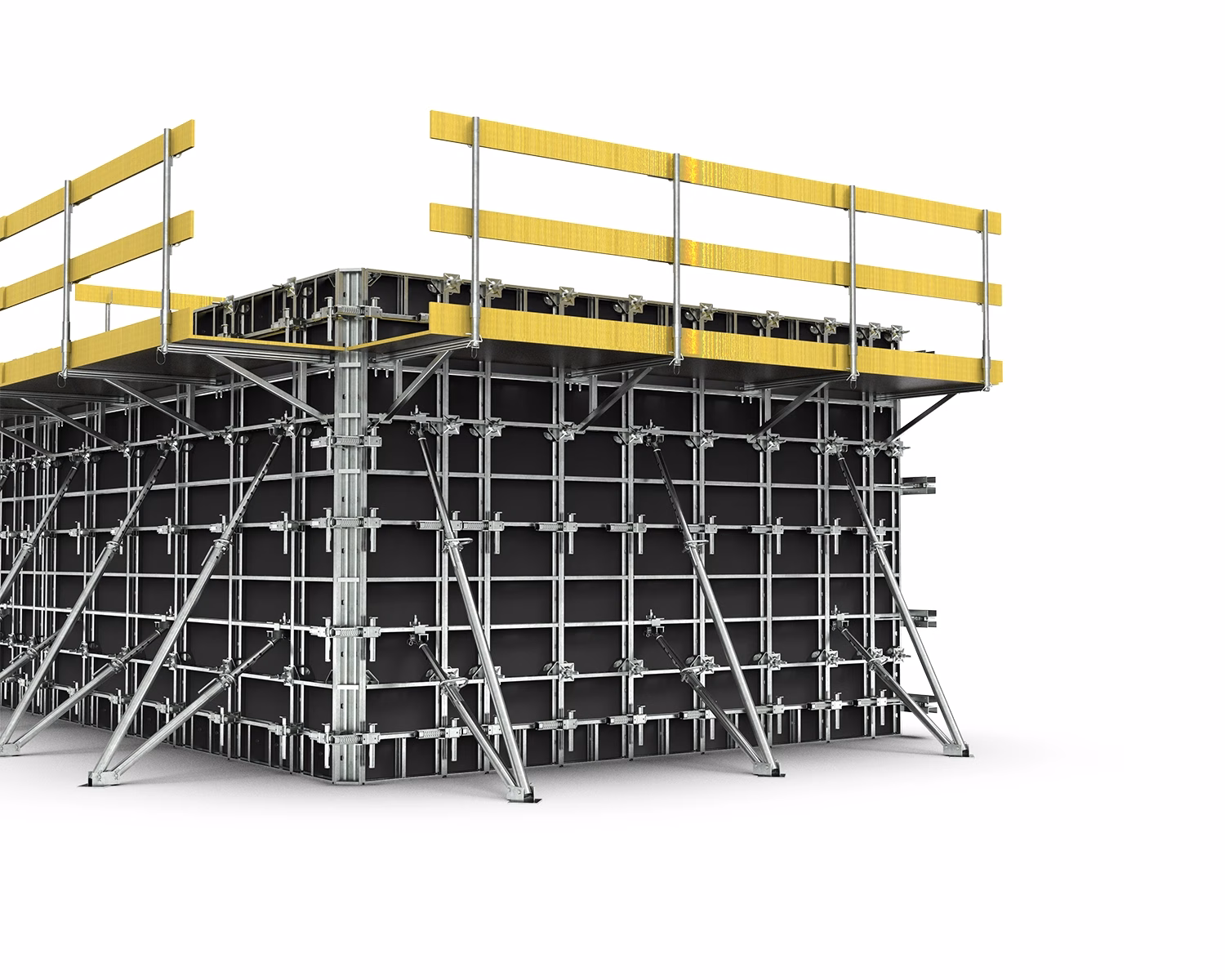

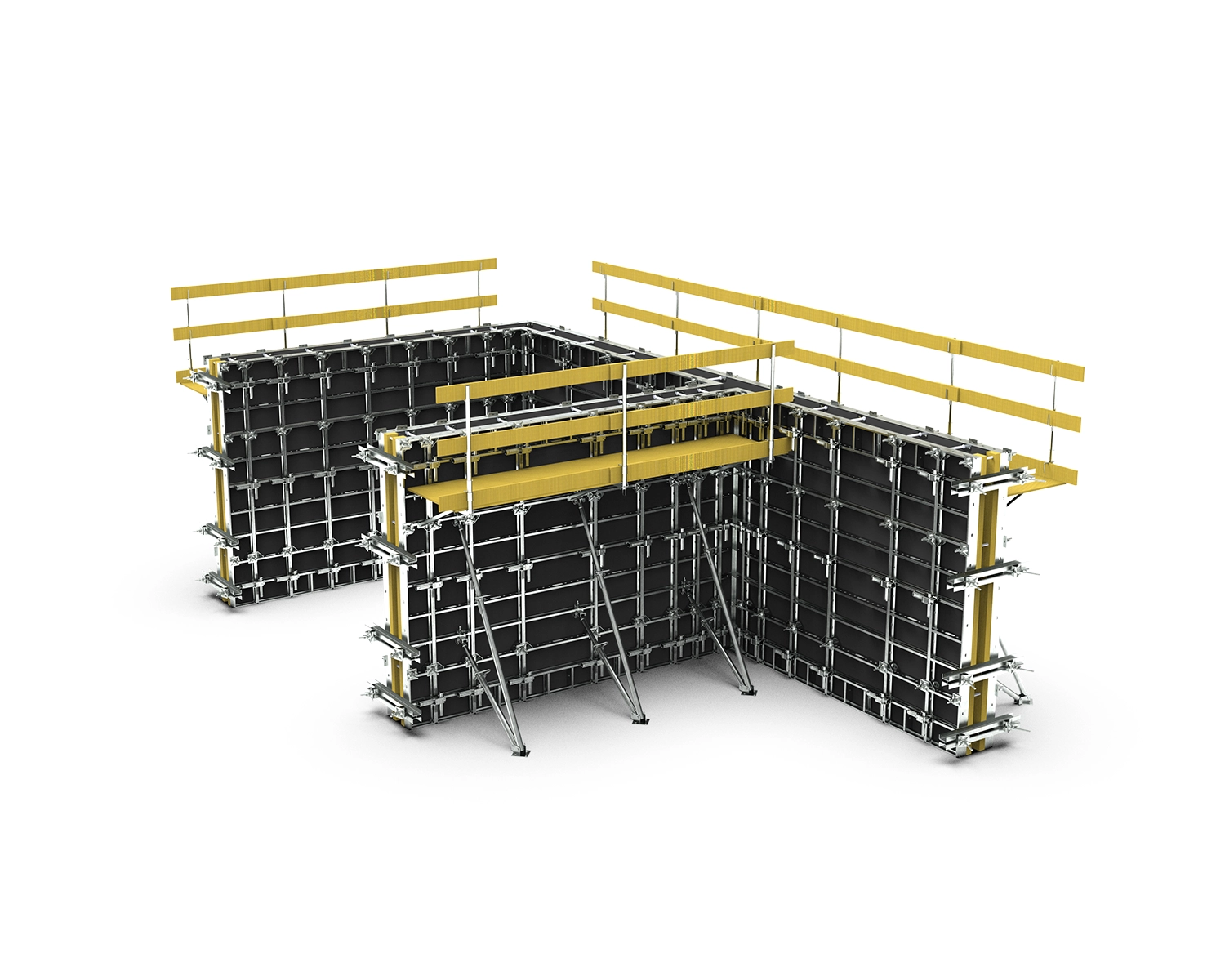

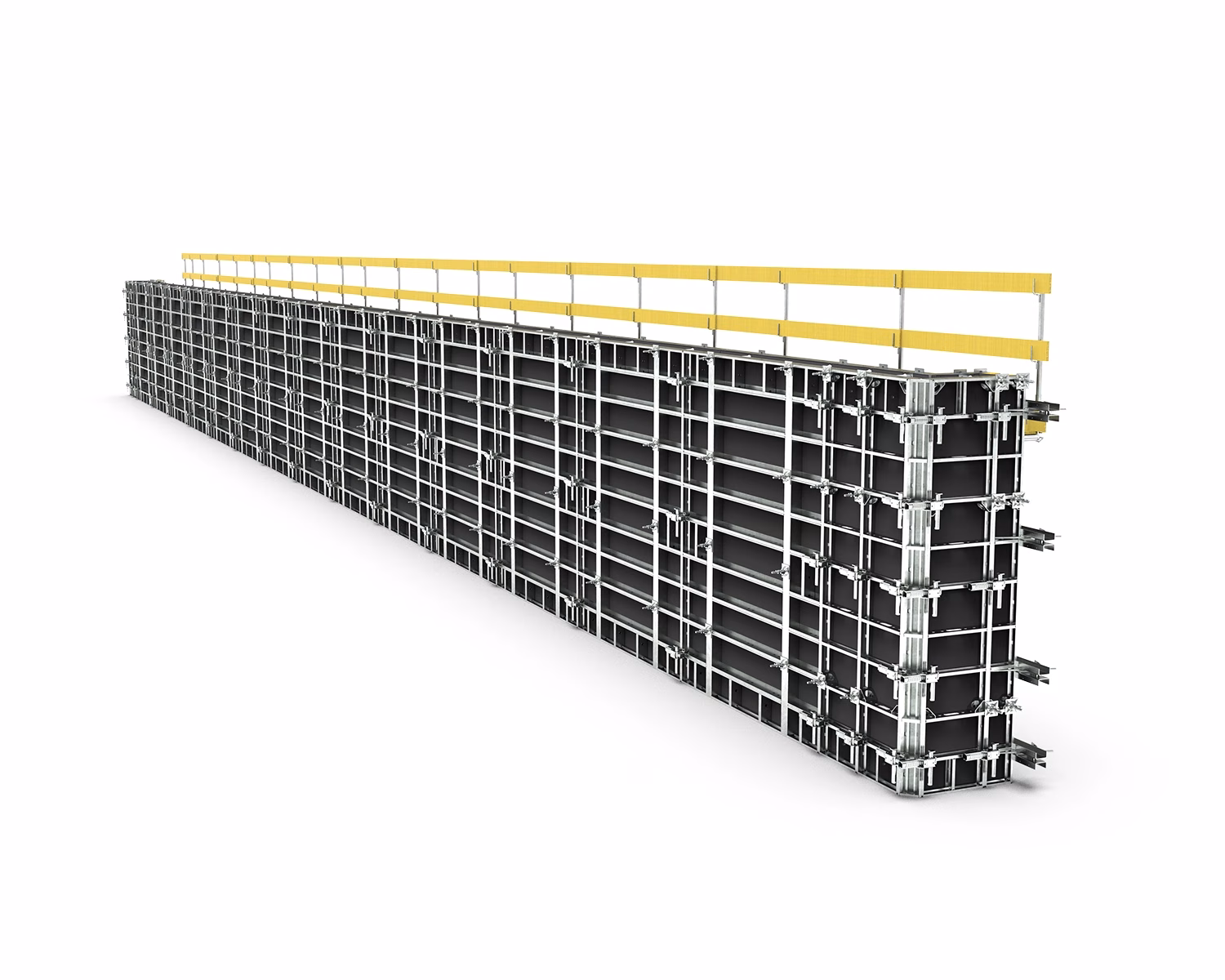

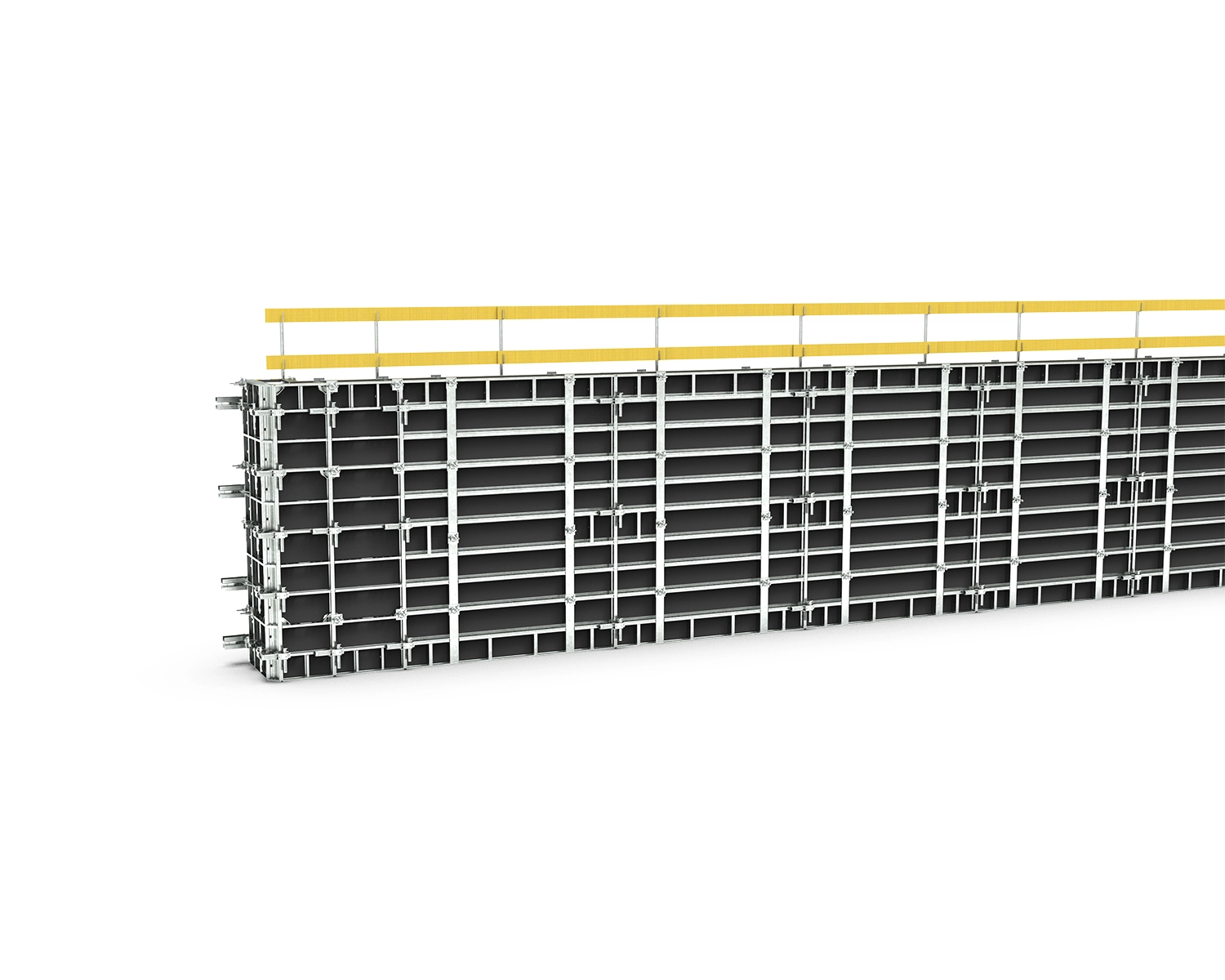

Length 3600, wall thickness 25 cm, alignment push-pull props + working platform.

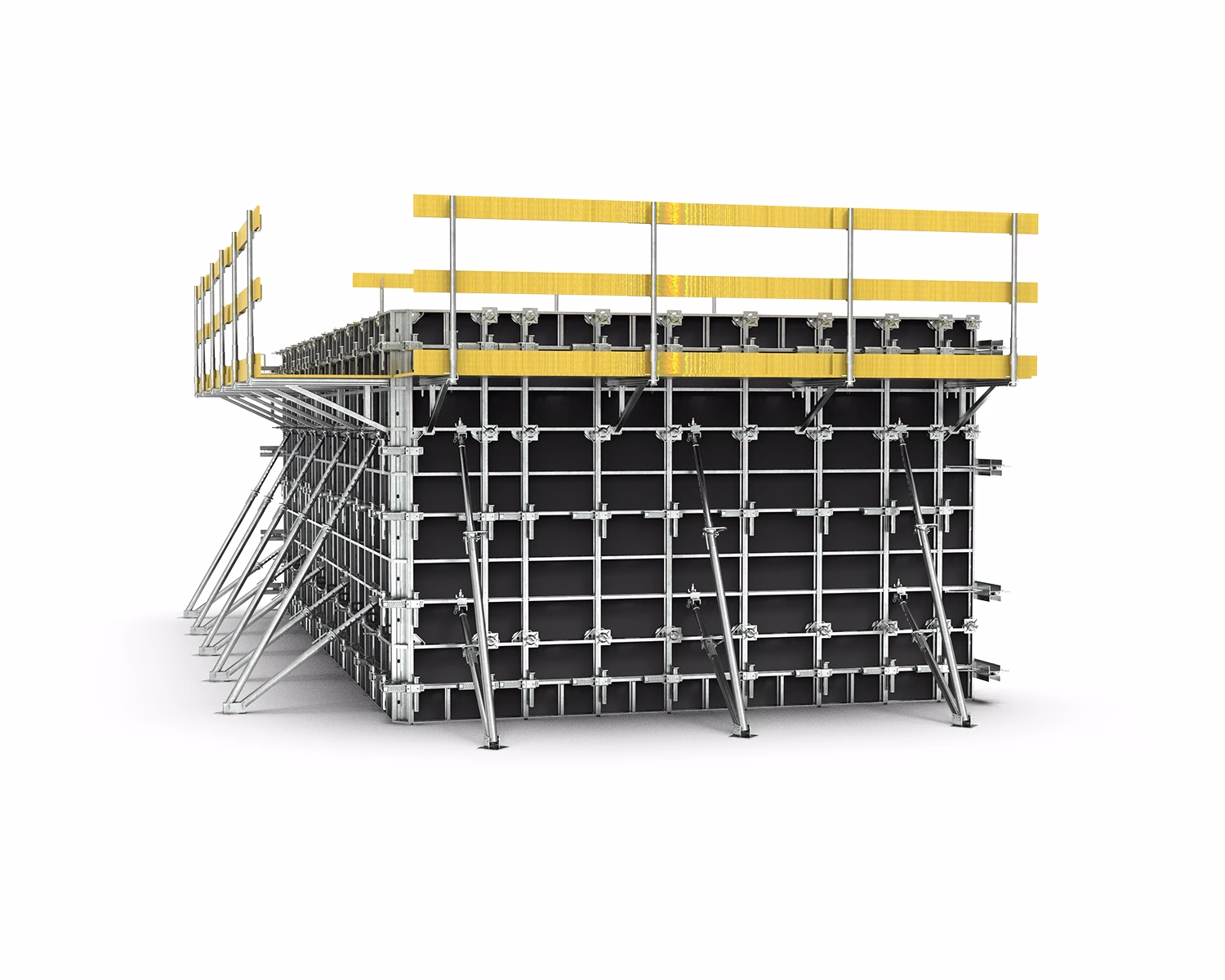

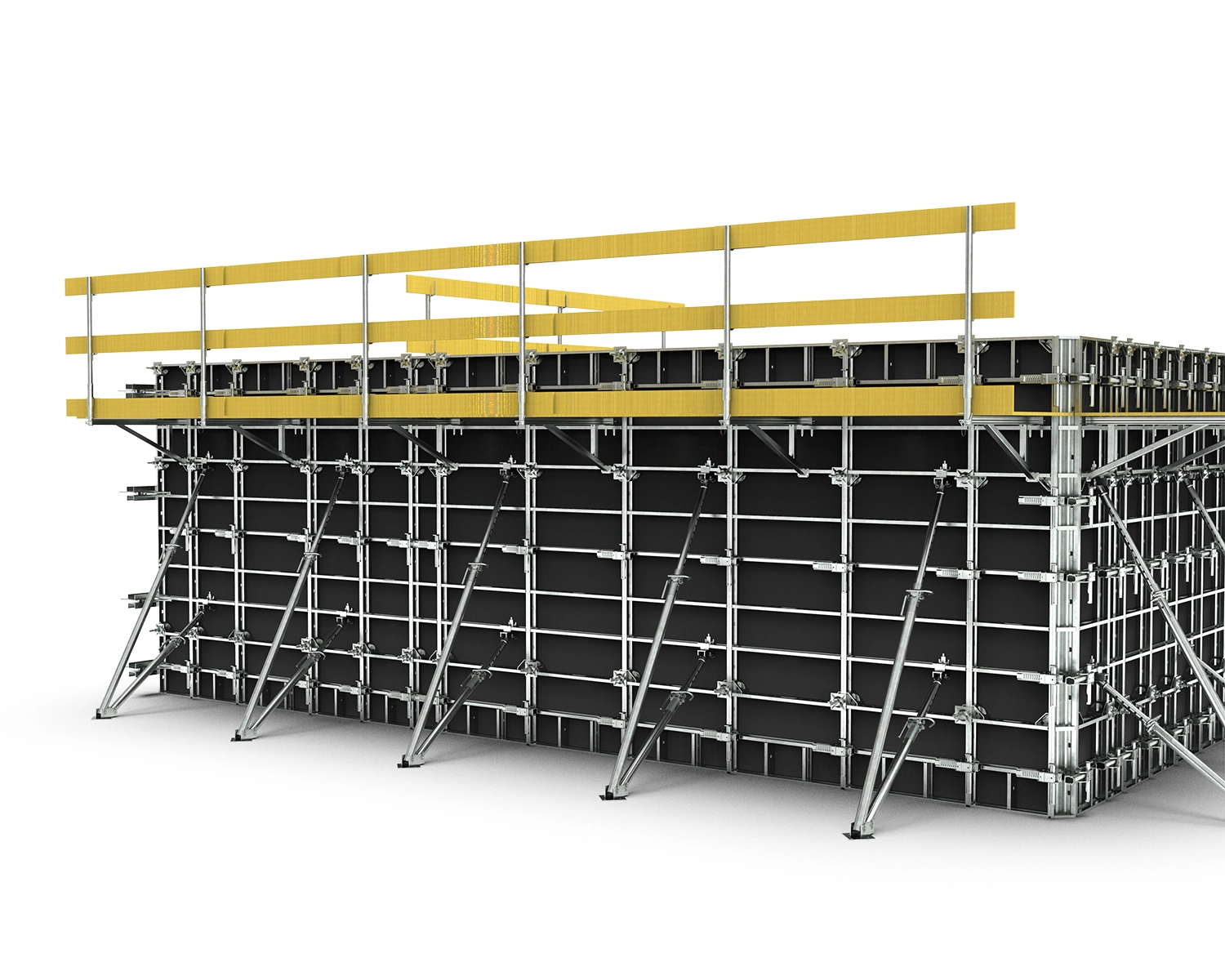

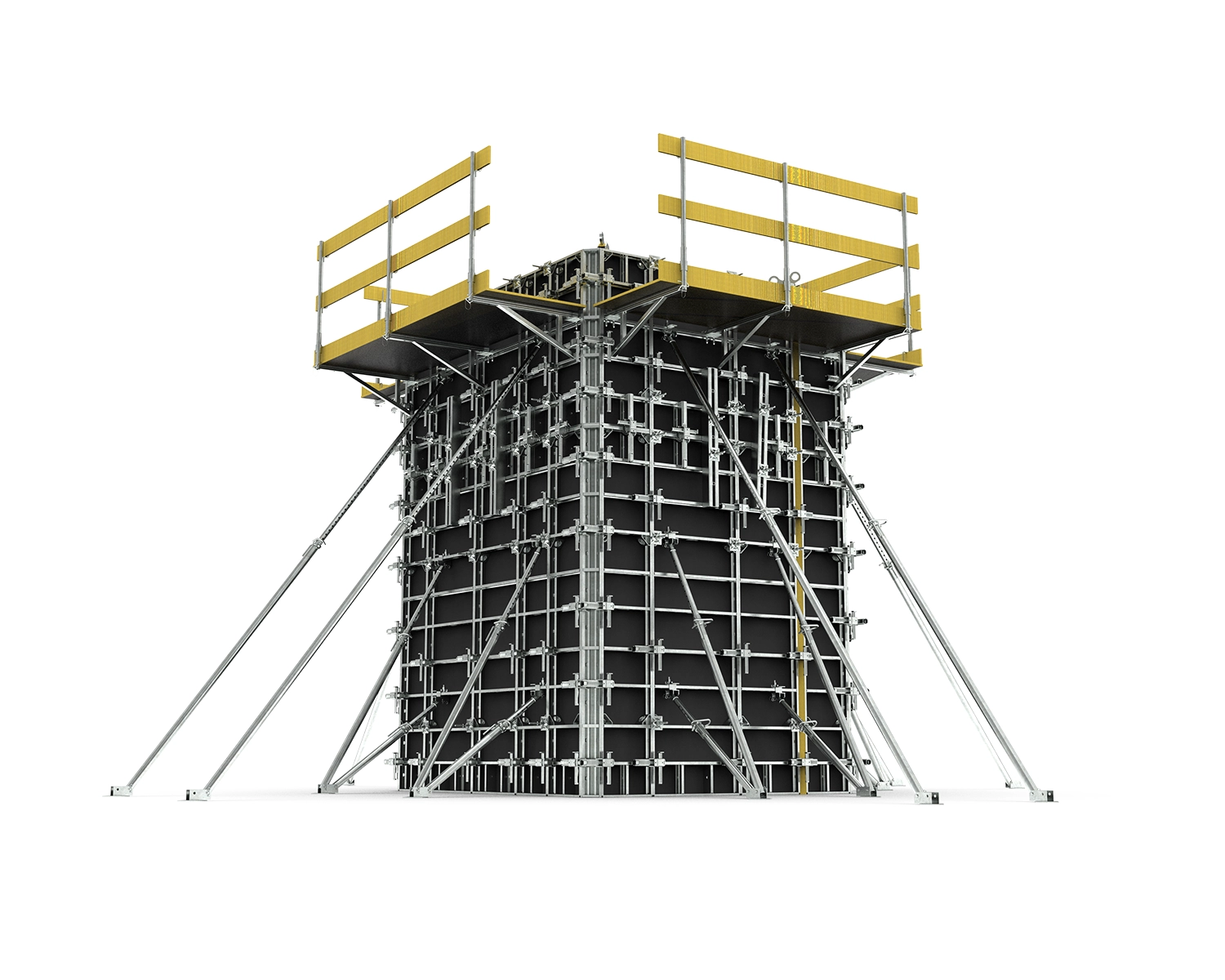

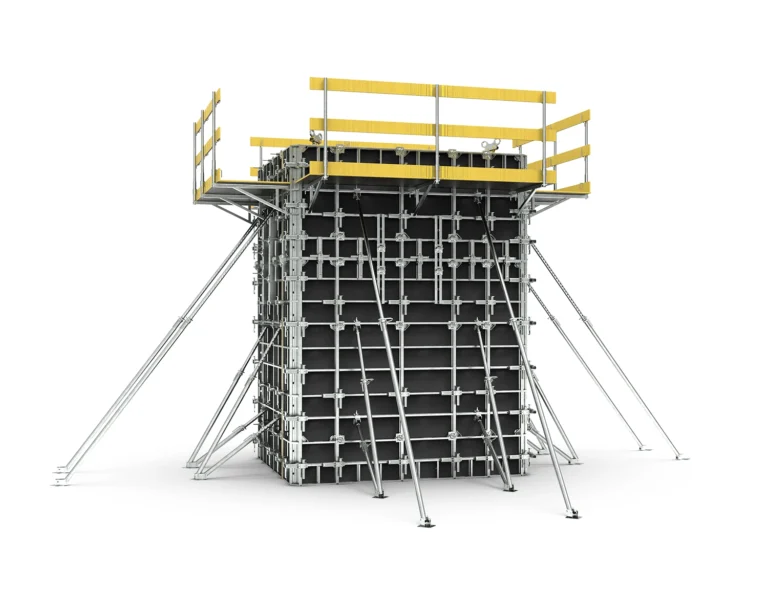

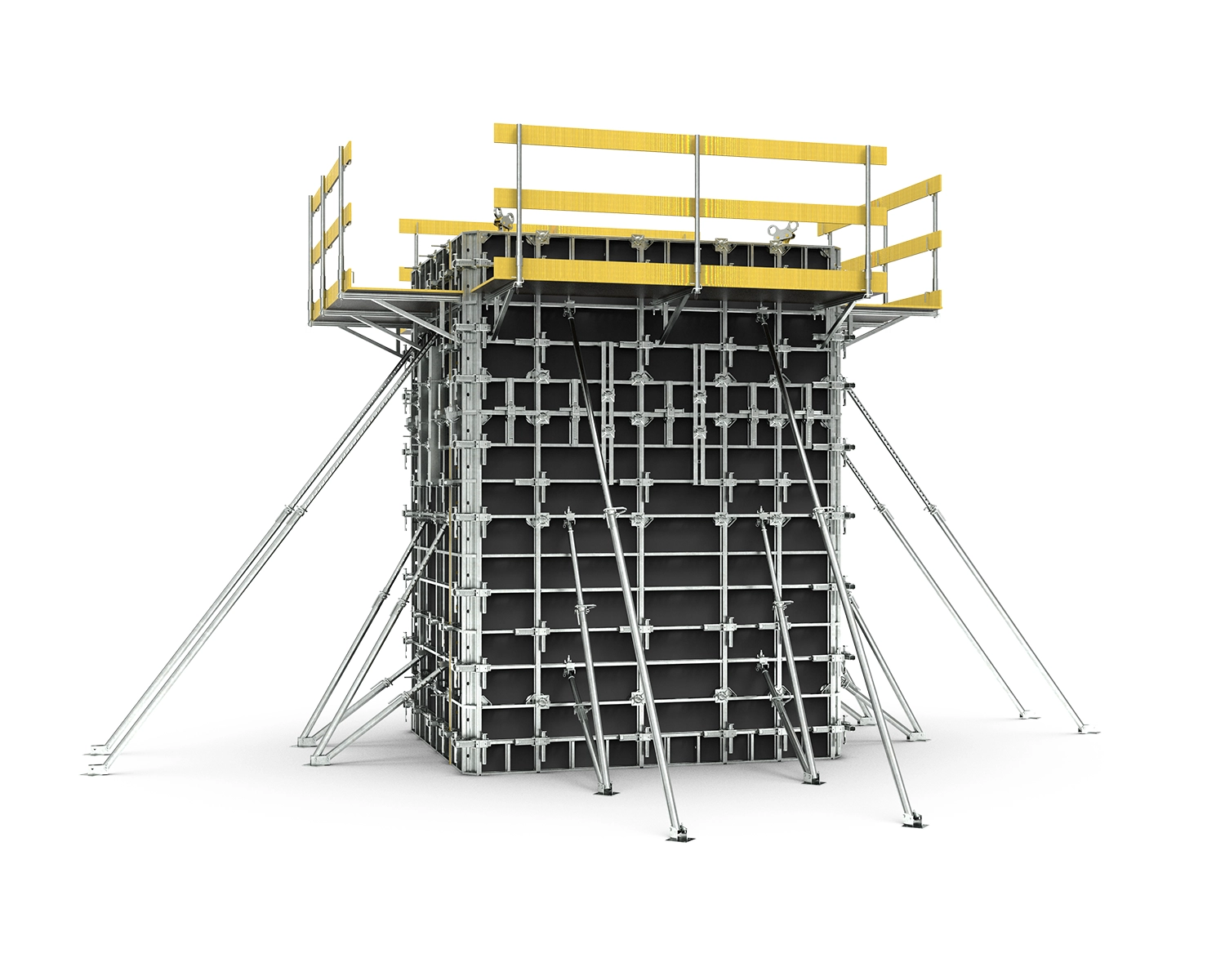

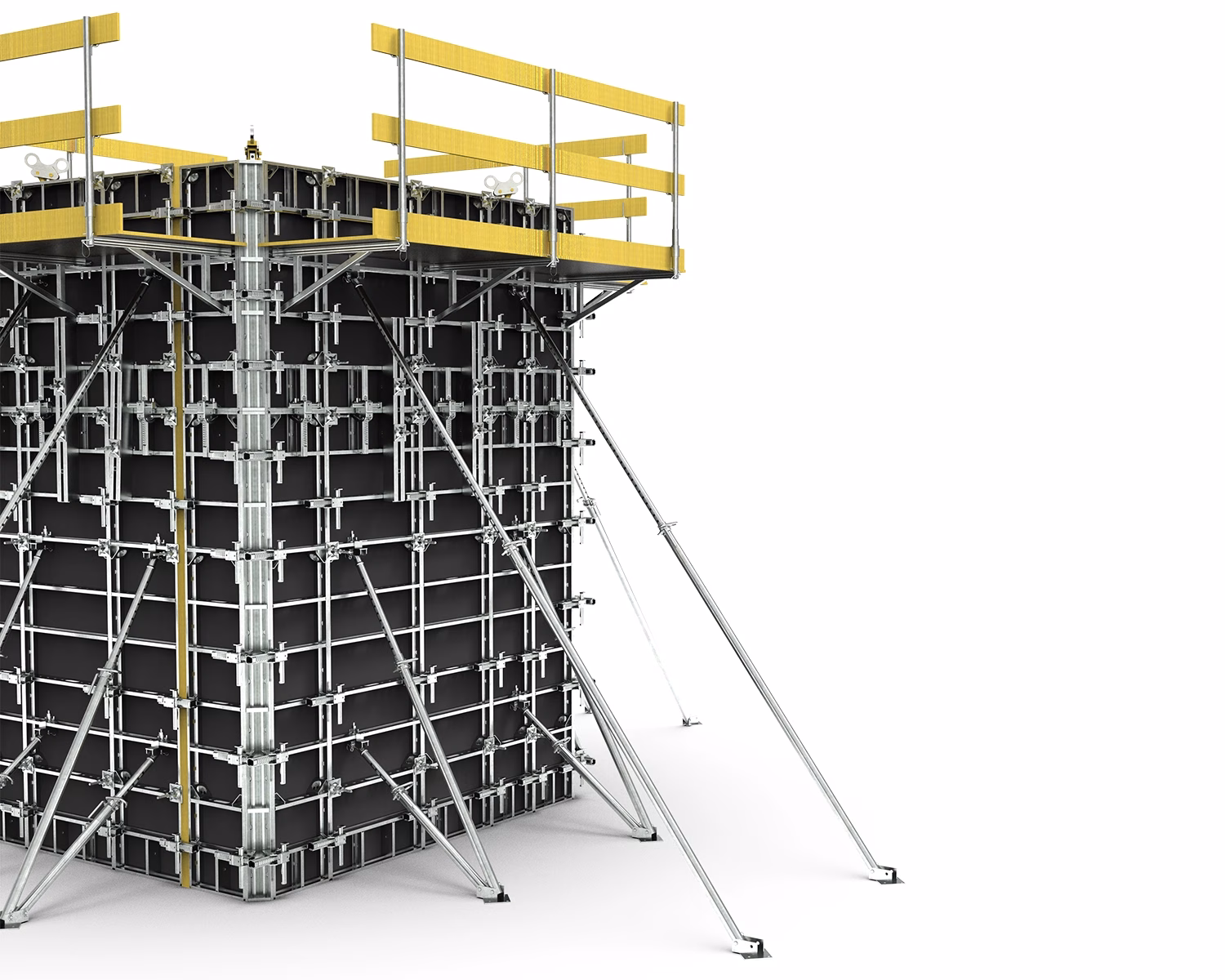

Shaft height 4.5 m, internal stripping corners 3 m + 1.5 m.
Height 3m, alignment push-pull props, use of multi-hole 70×300 VZ panels.
Height 3m, 1.5 m alignment push-pull props, use of various panel sizes 30/40/55/60/90 x 300.
Are you interested in purchasing equipment?
Contact us using phone or WhatsApp.
Call us
+48 570 555 579Write on WhatsApp
Send a message
Index
BAUFRAME
7241240300
BAUFRAME panel 240×300
240
300
344.85
7241180300
BAUFRAME panel 180×300
180
300
275.23
7241120300
BAUFRAME panel 120×300
120
300
175.69
7241190300
BAUFRAME panel 90×300 VZ
90
300
140.48
7241090300
BAUFRAME panel 90×300
90
300
90.45
7241075300
BAUFRAME panel 75×300
75
300
80.1
7241070300
BAUFRAME panel 70×300 VZ
70
300
113.4
7241065300
BAUFRAME panel 65×300
65
300
73.42
7241060300
BAUFRAME panel 60×300
60
300
70.0
7241055300
BAUFRAME panel 55×300
55
300
66.74
7241400300
BAUFRAME external corner 0×300
0
300
7241400270
BAUFRAME external corner 0×270
0
270
7241400150
BAUFRAME external corner 0×150
0
150
7241400090
BAUFRAME external corner 0×90
0
90
7241330300
BAUFRAME internal corner 30×30×300
30
300
81.2
7241330270
BAUFRAME internal corner 30×30×270
30
270
72.2
7241330150
BAUFRAME internal corner 30×30×150
30
150
42.46
7241330090
BAUFRAME internal corner 30×30×90
30
90
27.58
7242230300
BAUFRAME ALU internal corner 30×30×300
30
300
44.74
7242230270
BAUFRAME ALU internal corner 30×30×270
30
270
40.26
7270005300
Supplementary insert 5×300
21.45
7270005270
Supplementary insert 5×270
18.92
7270005150
Supplementary insert 5×150
11.66
7271000002
Baukrane wedge lock
4.2
7271000003
Baukrane UNI wedge lock
5.5
7271000090
Corner lock
6.5
7270000120
Centering tie 120
0.79
7270015200
Centering tie 200
0.9
7270000030
Rigid alignment clamp 30
0.71
7270000050
Rigid alignment clamp 50
1.02
7250025300
Radial strip 25×300
25
300
44.5
7250025270
Radial strip 25×270
25
270
39
7250025150
Radial strip 25×150
25
150
24
7250020300
Radial strip 20×300
20
300
41.8
7250020270
Radial strip 20×270
20
270
36.6
7250020150
Radial strip 20×150
20
150
22.6
7250015300
Radial strip 15×300
15
300
39.2
7250015270
Radial strip 15×270
15
270
35.2
7250015150
Radial strip 15×150
15
150
21.2
7270000008
Tie beam
1.6
7100004075
Baukrane support trestle
245.0
7100004076
Baukrane support trestle extension
61.0
7100004077
Baukrane support trestle connecting beam
57.0
