Load capacity 80 kN/m²
The permissible concrete pressure is as much as 80 kN/m².
BAUSCHAL wall formwork 80 kN
Heavy wall formwork for demanding volumetric projects.
A strength of 80 kN/m² makes it possible to build even the thickest walls. The formwork is compatible with other panels of the Rasto type.
Full hot-dip galvanizing
The formwork is fully protected with galvanization.
Compatible with Rasto
The formwork can be connected with other panels of the Rasto type.
Switch between pieces of information by clicking on the tabs.

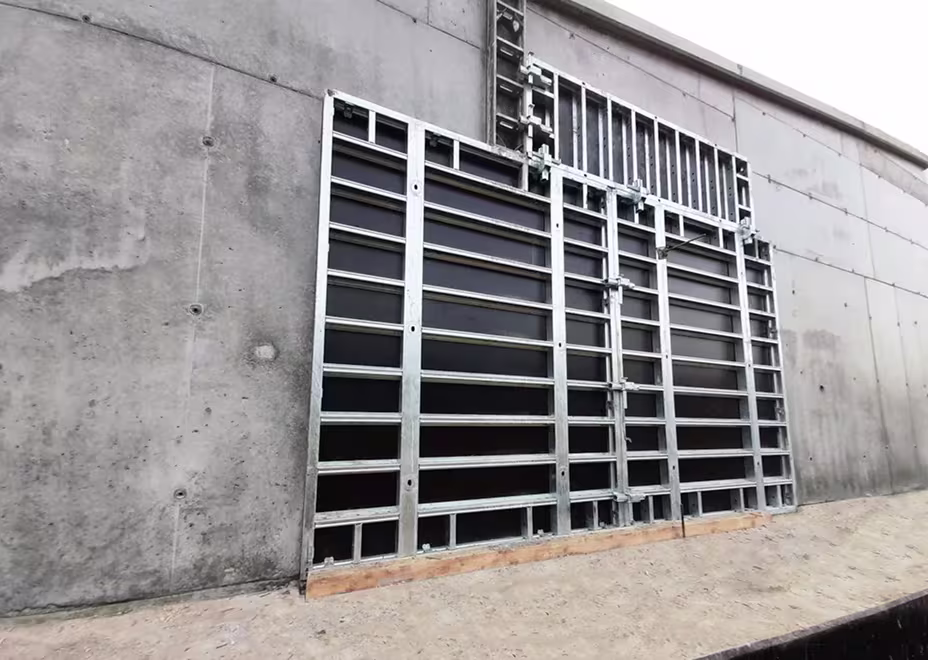

Formwork for demanding projects
Bauschal is a heavy formwork system with a strength of 80 kN/m². Universal brackets facilitate transport by crane on the construction site. The system has a full range of elements for making straight walls, semicircular columns, and elevator shafts. Ideal for making reinforced concrete walls in residential and industrial construction, vertical partitions in engineering construction, reinforced concrete columns and cores, massive foundations and footing foundations.
Technical specifications
Panel widths
30/45/50/55/60/75/90/100/120/240 cm
Panel heights
150/270/300 cm
Internal corner
30×30 cm
Frame
steel profile, 12 cm thick
Sheathing
21 mm birch plywood
Galvanizing
fully hot-dip galvanized
Max. concrete pressure
80 kN/m²
Standard connectors
Baukrane wedge locks
Compatibility
Bauframe, Bauframe ALU, Rasto, MidiBox, Rhino
Application
Reinforced concrete walls, vertical partitions, columns and reinforced concrete cores, mass foundations and foundation footings
Are you interested in BAUSCHAL? Contact us using phone or WhatsApp.
Make a call
Write on WhatsApp
How does BAUSCHAL stand out from other formwork systems?
Through-holes for tie rods in the panel profiles
Steel panels equipped with through-holes made in profiles measuring 60×50 mm and 17 mm thick protect the sheathing from damage by the tie rod during assembly and disassembly.
Universal accessories
You can secure the system using universal Baukrane accessories or others compatible with Rasto. A smaller number of dedicated accessories means fewer problems on the construction site and easier equipment completion.
Elements for making an elevator shaft
The formwork contains the elements necessary to make an elevator shaft. The corner structure allows its width to be reduced by about 3 cm, which as a result makes it possible to move the internal formwork away from the completed wall by a full 6 cm.
Reinforced frame and internal profiles
The frame and internal profiles are made of high-grade steel, additionally reinforced to carry the greatest loads. The whole is protected with hot-dip galvanizing to maximize the service life of the formwork.
Load capacity 80 kN/m²
The high strength and weight of the individual panels guarantee certainty and safety during the concreting of the thickest walls.
Compatible with Rasto and Bauframe
The possibility of connecting with Bauframe and Rasto systems allows faster and more economical project execution, minimizing assembly errors.
Are you interested in the product? Contact us now!
Make a call
Write on WhatsApp
Example assemblies

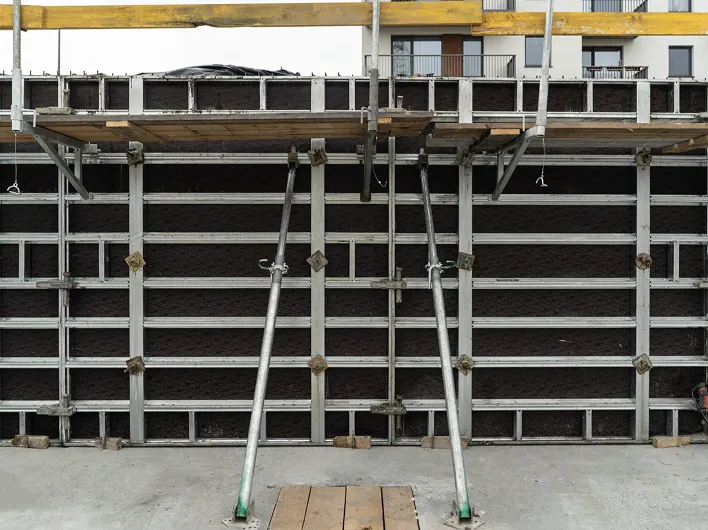

Height 3 m, use of Mamut panels, working platform and alignment push-pull props.
Are you interested in purchasing equipment?
Contact us using phone or WhatsApp.
Call us
+48 570 555 579Write on WhatsApp
Send a message
Bauschal formwork Indexes
7245240300
BAUSCHAL panel 240×300
240
300
397
7245120300
BAUSCHAL panel 120×300
120
300
220.4
7245100300
BAUSCHAL panel 100×300
100
300
195.6
7244190300
BAUSCHAL panel 90×300 VZ
90
300
155.44
7245090300
BAUSCHAL panel 90×300
90
300
146.6
7245075300
BAUSCHAL panel 75×300
75
300
125.8
7245060300
BAUSCHAL panel 60×300
60
300
110.2
7245055300
BAUSCHAL panel 55×300
55
300
104.2
7245050300
BAUSCHAL panel 50×300
50
300
97.07
7245045300
BAUSCHAL panel 45×300
45
300
93.6
7222B00300
BAUFRAME external corner 0×300
0
300
31.1
7222B00270
BAUFRAME external corner 0×270
0
270
28.02
7241400150
BAUFRAME external corner 0×150
0
150
15.68
7241400090
BAUFRAME external corner 0×90
0
90
9.52
7246030150
BAUSCHAL internal corner 30×30×150
30
150
61.43
7246030270
BAUSCHAL internal corner 30×30×270
30
270
99.53
7246030300
BAUSCHAL internal corner 30×30×300
30
300
114.2
7241515300
BAUFRAME hinged corner 15×15×300
15
300
74.8
7241515270
BAUFRAME hinged corner 15×15×270
15
270
67.36
7241515150
BAUFRAME hinged corner 15×15×150
15
150
37.62
7271000002
Baukrane wedge lock
4.2
7271000003
Baukrane UNI wedge lock
5.5
7271000090
Corner lock
6.5
7270020200
Bauschal centering tie 20
0.52
7270000030
Rigid alignment clamp 30
0.71
7270000050
Rigid alignment clamp 50
1.02
7270015075
DW-15 tie rod 75 cm
1.12
7270015100
DW-15 tie rod 100 cm
1.5
7270015150
DW-15 tie rod 150 cm
2.25
7270115200
DW-15 tie rod 200 cm
3
7250025300
Radial strip 25×300
25
300
44.5
7250025270
Radial strip 25×270
25
270
39
7250025150
Radial strip 25×150
25
150
24
7250020300
Radial strip 20×300
20
300
41.8
7250020270
Radial strip 20×270
20
270
36.6
7250020150
Radial strip 20×150
20
150
22.6
7250015300
Radial strip 15×300
15
300
39.2
7250015270
Radial strip 15×270
15
270
35.2
7250015150
Radial strip 15×150
15
150
21.2
7270000008
Tie beam
1.6
