For slabs, stairs, openings and working platforms
Skynet universal edge protection system
Skynet is a system of temporary protection for edges, construction openings, stairwells, access routes and other hazardous areas on construction sites. Universal for multiple applications.
Compatible with safety nets from other systems
Adaptable to irregular edges
Compatible with Rasto and Tekko type formwork
Switch between pieces of information by clicking on the tabs About product and Indexes and components
Basic information
Standard
PN-EN 13374+A1:2009-02
Protection class
Class A
Main guardrail height
1,10 m
Post height
1,22 m
Adjustable guardrails
0,60–0,90 / 1,00–1,50 / 1,50–2,40 / 2,50–3,50 m
Post extensions
300 / 500 mm
Safety mesh panels
1,30 / 2,40 m
Max. post spacing with mesh panels
1,20 / 2,30 m
Stairwell post
adjustable from 2.35 to 3.56 m
Steel components
hot-dip galvanized
Compatibility
mesh panels from other manufacturers, Tekko- and Rasto-type formwork systems
Delivery and order terms
Shipping to
Across Poland and EU countries
Delivery method
Full container and truckload shipments, delivered directly to the construction site or the customer’s warehouse
Lead time
24-48 hours for products available from stock
Minimum order quantity
We provide project-specific quotations for complete formwork systems
Offer for contractors and wholesalers
Special terms for contractors and wholesalers – contact us for a sales quote
Do you need a quote for a specific edge protection system?
Make a call
Write on WhatsApp

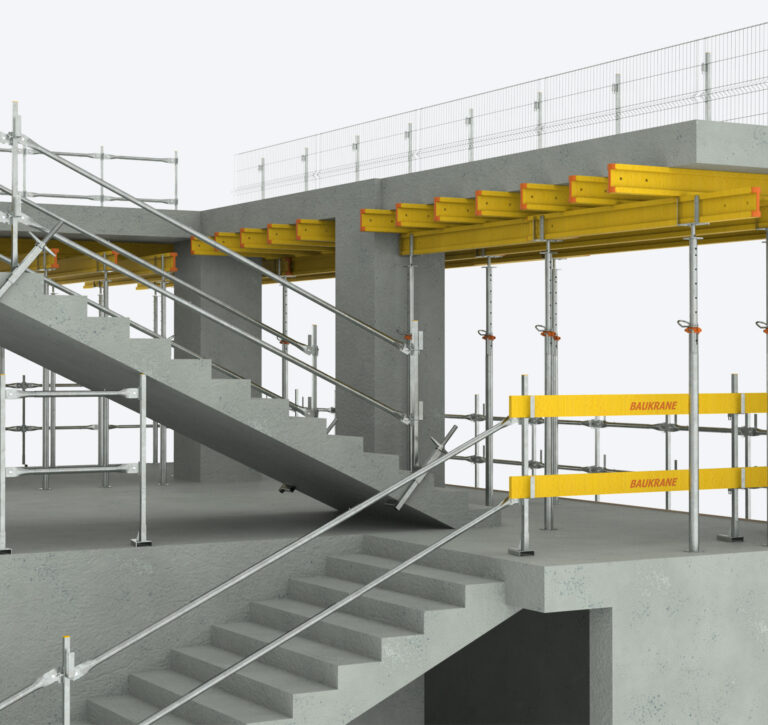

Universal edge protection system for construction sites
The system offers various posts and brackets, as well as three types of protective guardrails: safety nets, adjustable guardrails and boards. This allows the protection to be adapted to the work area and the components already available on the construction site.
The system brackets also allow SKYNET components to be used to protect working platforms on Baukrane formwork. A properly configured protective barrier meets the requirements of the PN-EN 13374 standard for temporary edge protection systems.
What makes the Skynet edge protection system stand out?
One system for multiple applications
SKYNET can be used to protect slab edges, construction openings, stairwells, working platforms and other hazardous areas. Adjustable components also allow barriers to be installed on stairs and inclined sections.
Automatic post locking
The post locks automatically when inserted into the socket of the mounting bracket. A click and a visible pin make it possible to quickly check whether the connection is correct. Removing the post requires pressing the button that releases the lock.
Three ways to create a protective barrier
Safety nets, adjustable guardrails or boards can be used to create the protection. SKYNET has been designed so that, with the use of appropriate mounting accessories, edges can be protected with components already available on the construction site.
Compatible with safety nets from other systems
Safety nets from other systems can be attached to the SKYNET post. This allows you to use safety equipment you already have without having to purchase new nets. The net is mounted in the post sockets, while the locking wedge prevents it from sliding out.

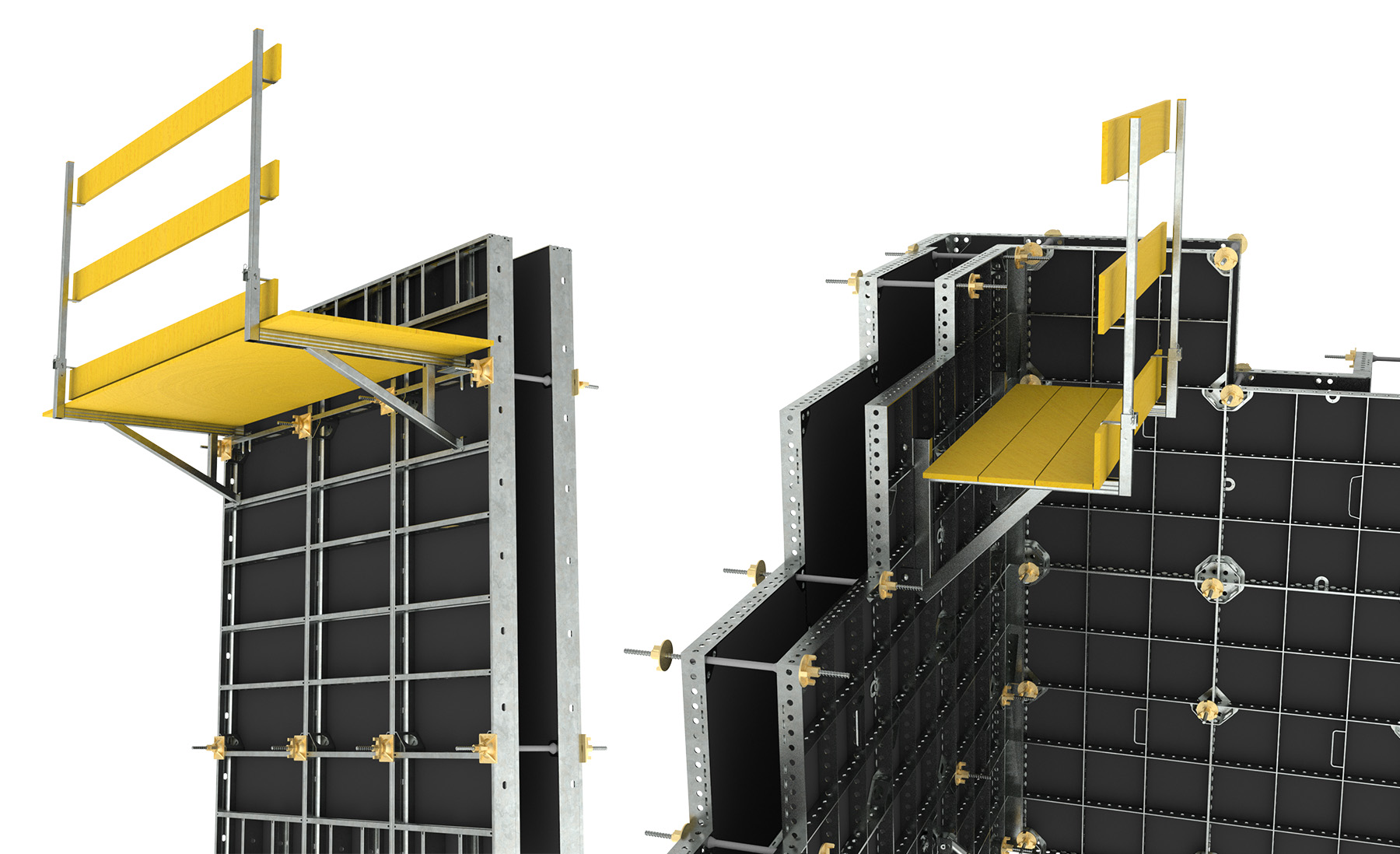

Integration with formwork
The system brackets allow SKYNET components to be used to protect working platforms on Baukrane formwork. This speeds up barrier installation and reduces the need to purchase specially dedicated formwork components.
Protection for stairs, ramps and inclined edges
Angle-adjustable brackets and solutions for inclined barriers make it possible to protect stairwells, ramps and other inclined edges. This means that one system can be used in various areas of the construction site, including locations where a standard straight barrier is not sufficient.
Guardrails adapted to the actual edge
Adjustable telescopic guardrails allow the protection length to be adapted to irregular edges. Instead of cutting boards to a specific size each time, use telescopic guardrails that can be adjusted quickly and easily to fit the edge.
Ask for a quote for the Skynet edge protection system – for your construction project or wholesale offer
We will determine the required number of components, prepare a quotation, and confirm availability within 24 hours. A complete system is available for purchase.
Make a call
Write on WhatsApp
Skynet item codes
7400000102
POST SKYNET 01
3,55
7400000103
POST SKYNET 02
4,2
7400000104
POST SKYNET 03
4,16
7400000105
STAIRCASE BARRIER
21,2
7400000106
POST EXTENSION 200
1,6
7400000107
POST EXTENSION 500
3,03
7400000108
BARRIER SLIDER
0,99
7400000109
TOE BOARD HOLDER
0,5
7400000111
SCREW GRIP SKYNET
2,1
7400000112
SIDE GRIP SKYNET
2,27
