Load capacity 200 kN

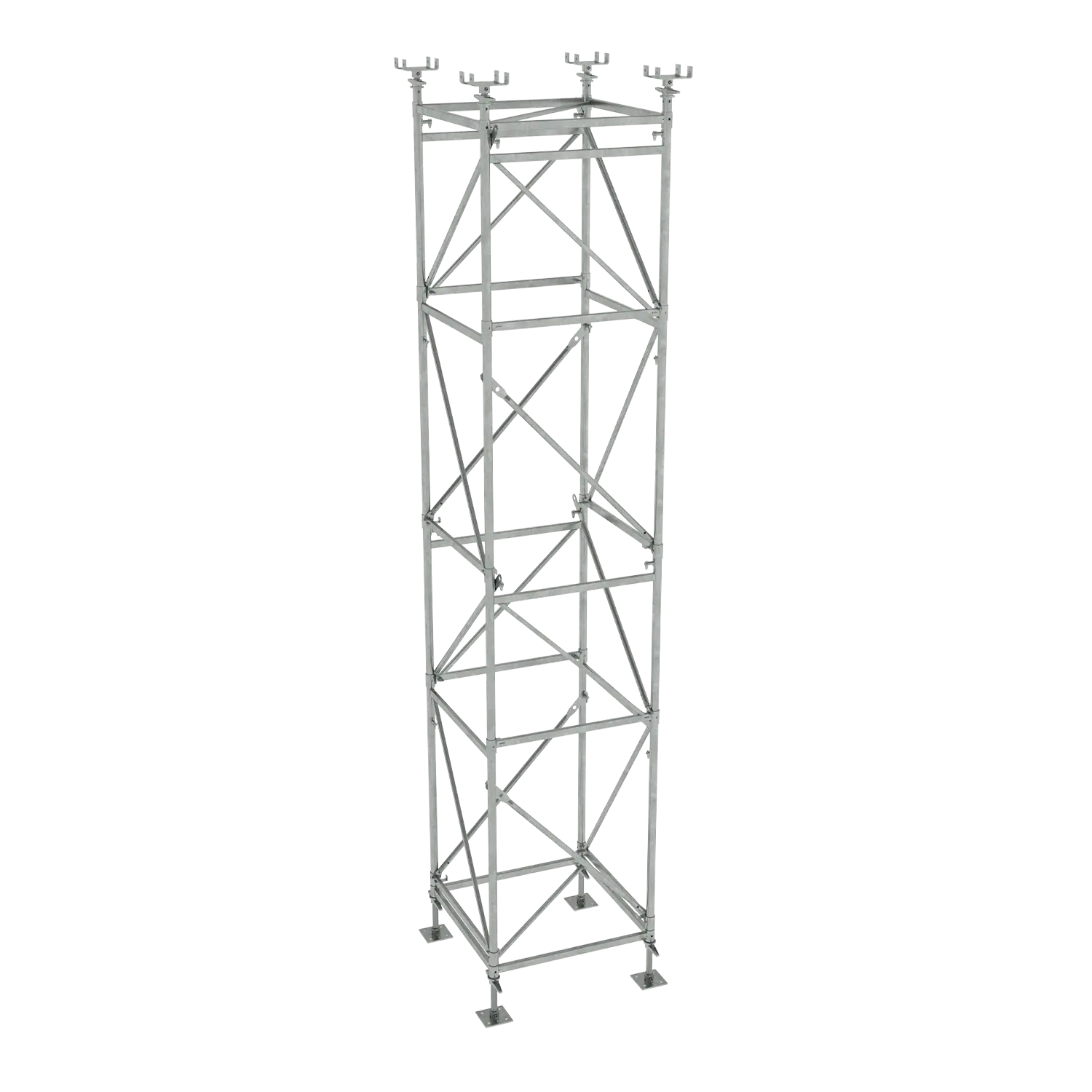

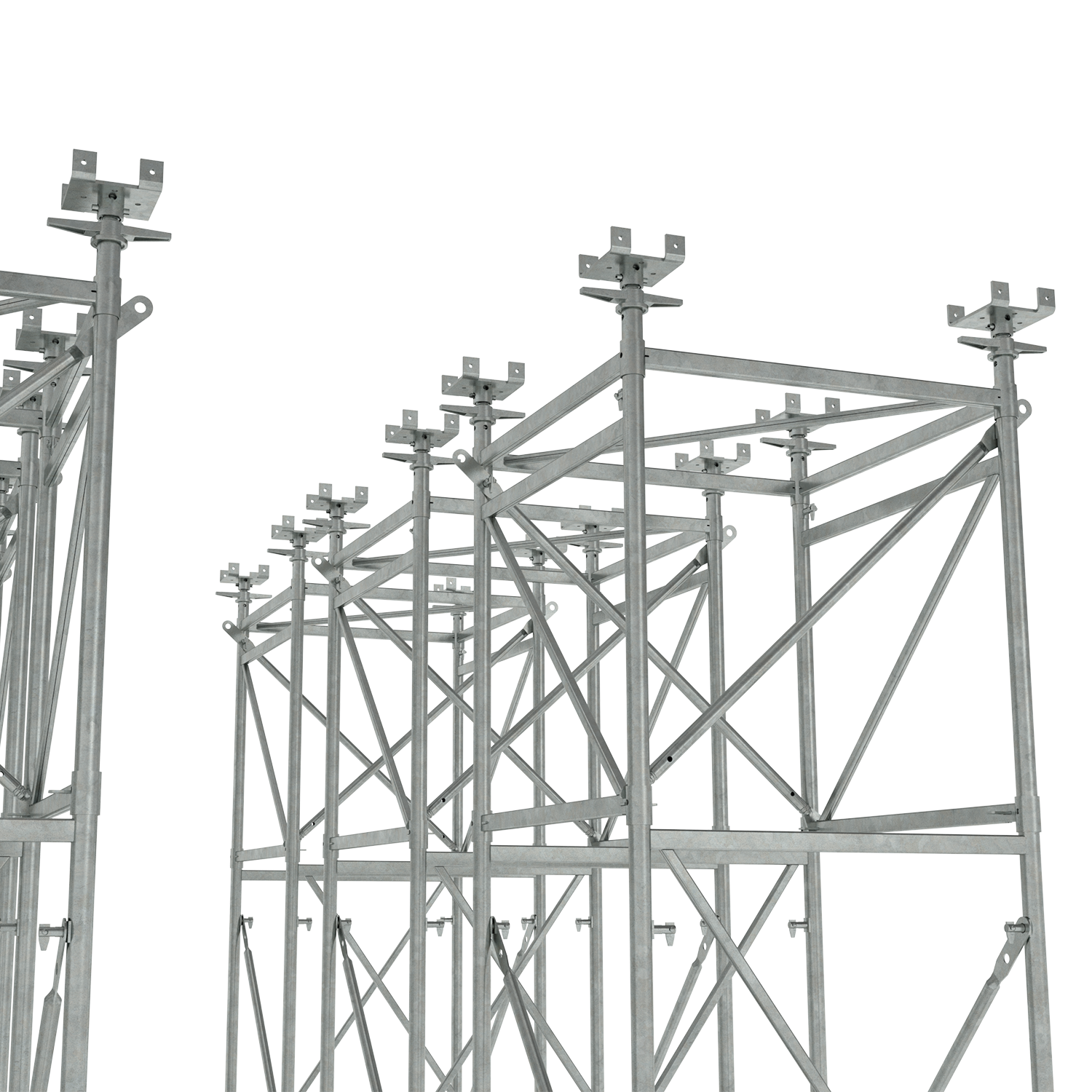

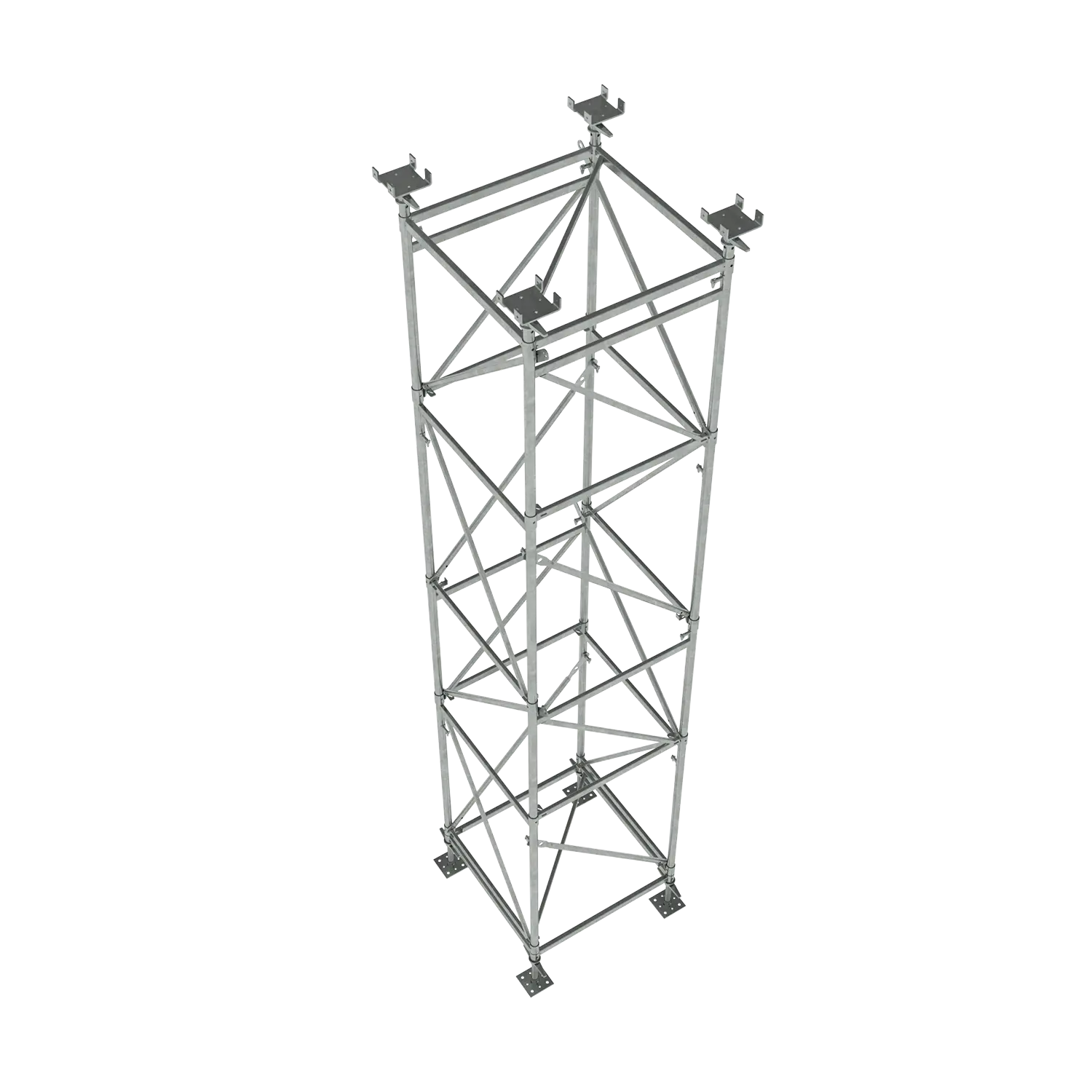

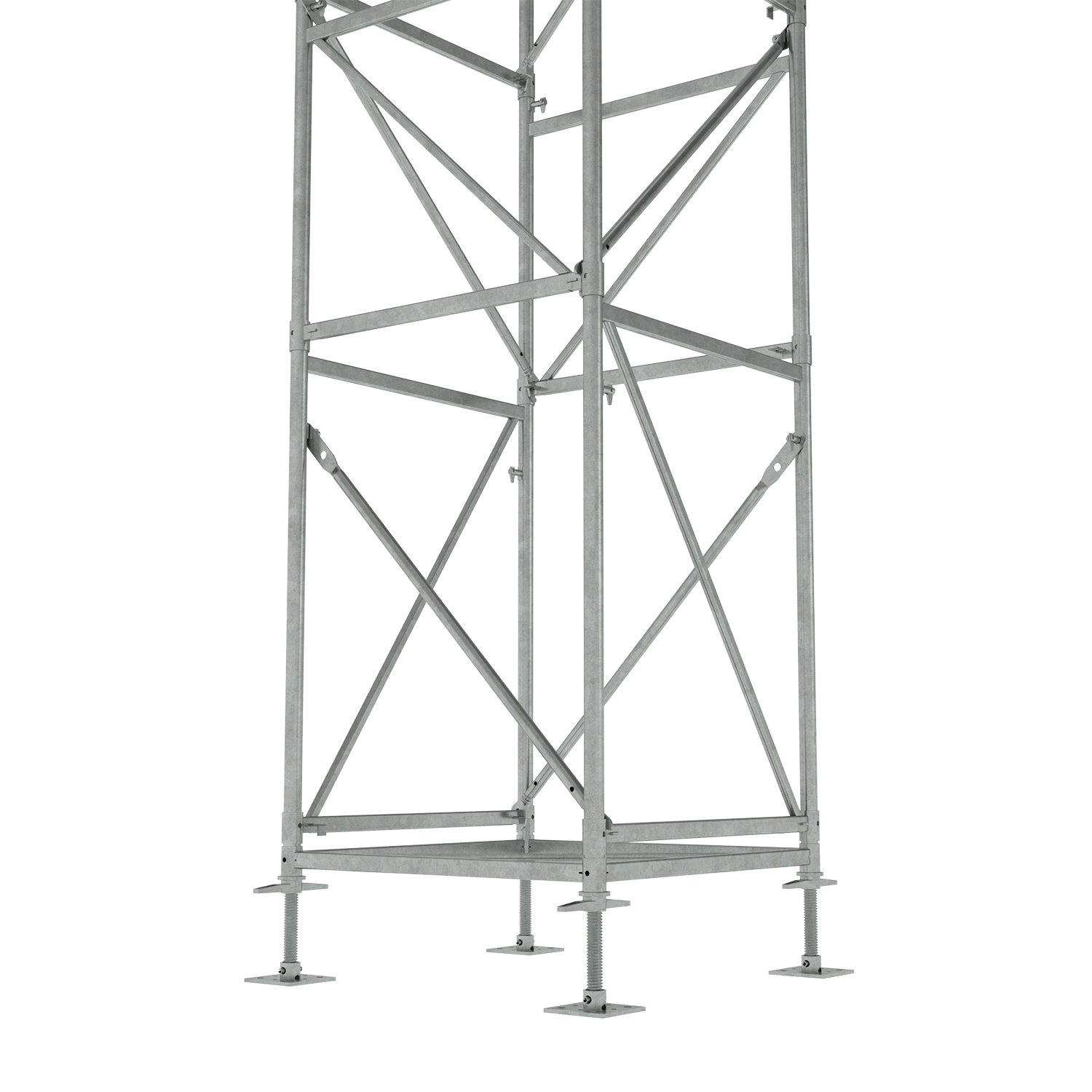

BTU-50 shoring towers for slab support
Modular shoring tower system for supporting thick industrial slabs, bridge structures and other constructions with high point loads. A load capacity of 200 kN per tower, using just six components and a 1 × 1 m footprint, allows faster work with fewer workers.
Height up to 20 m
Compliance with DIN 4421
Switch between information by clicking the tabs.
Basic information
Width
1.00 x 1.00 m
Height
od 1.42 do 20.10 m
Compliant with
DIN 4421
Max. concrete pressure
200 kN per tower
Protection
Hot-dip galvanization
Application
Bridges and viaducts, industrial facilities, engineering structures, large-area buildings.
Delivery and order terms
Shipping to
All of Poland and EU countries
Delivery method
Full container and truck loads, delivered directly to the construction site or the customer’s warehouse
Lead time
24–48 hours for items available from stock
Minimum order
Complete shoring tower systems are quoted based on the project. Purchase or rental available for large projects only
Offer for contractors and wholesalers
Special terms for contractors and wholesalers – ask for a sales or rental offer
Do you need a quote for a specific number of shoring towers?
Make a call
Write on WhatsApp

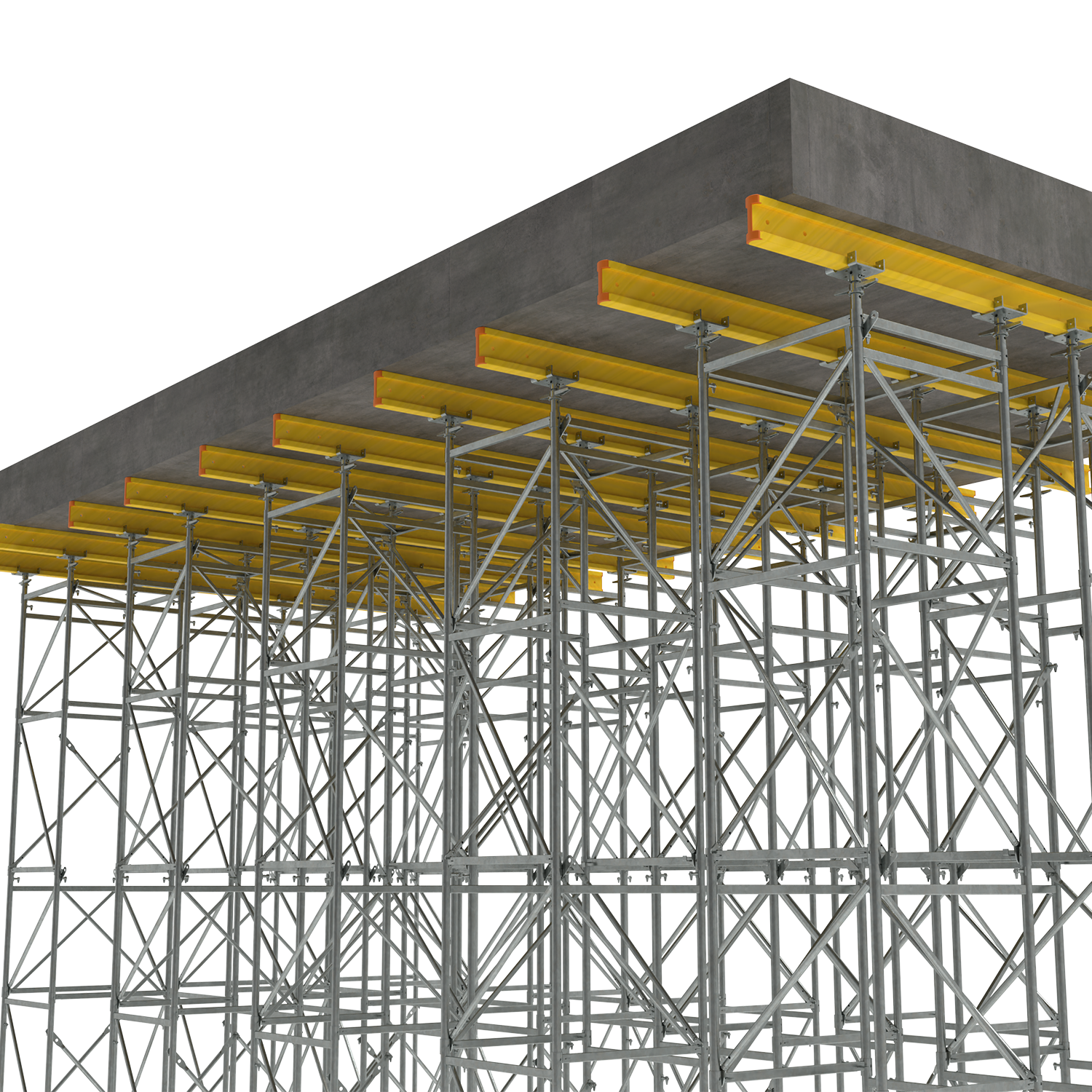

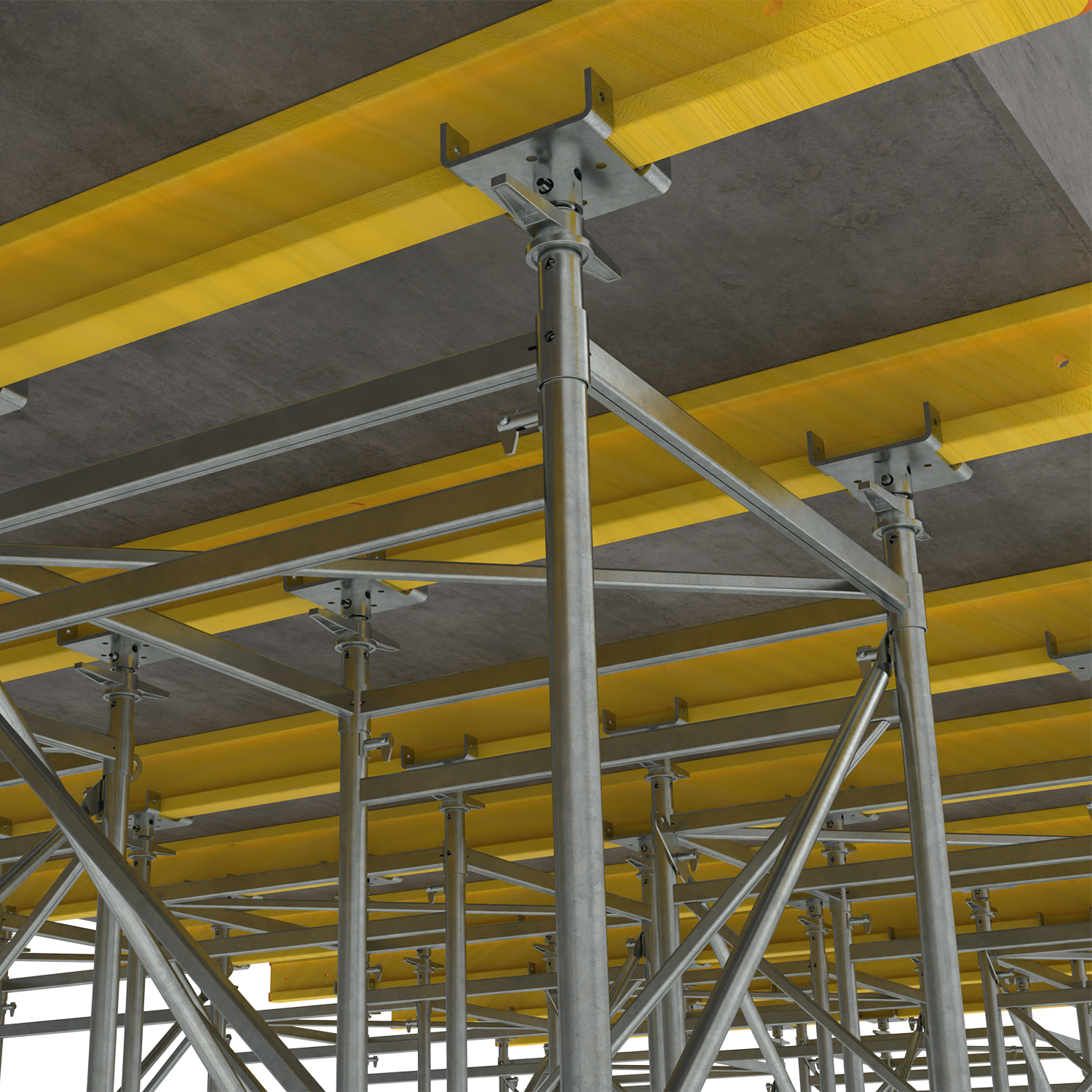

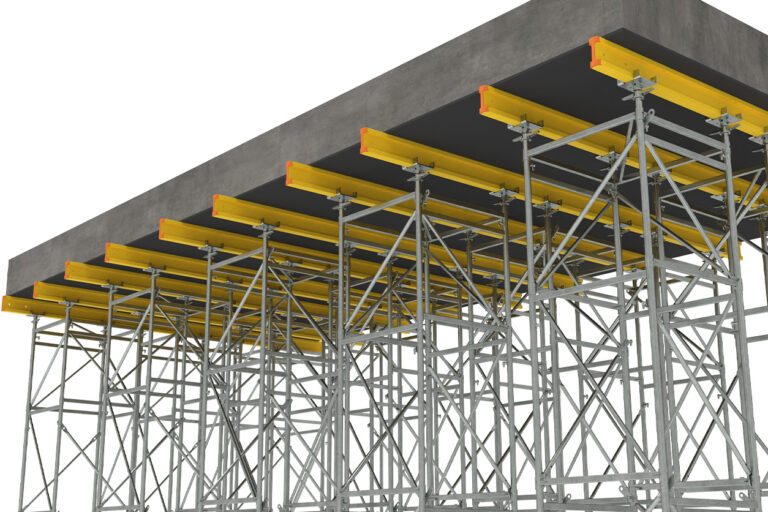

Modular BTU-50 shoring tower system for heavy slab construction
The BTU-50 system is a shoring tower solution designed to support slabs with high concentrated loads, used in the construction of bridges, industrial halls and other engineering structures. Six repetitive, hot-dip galvanized components form a stable structure up to 20 m high, which can be assembled by one worker without specialist training. Once assembled, the tower can be moved by crane without dismantling, both vertically and horizontally, reducing relocation time to just a few minutes.
What makes the BTU-50 shoring tower stand out?
Load capacity up to 200 kN per tower
The BTU-50 can carry loads of up to 200 kN per tower with a footprint of just 1 × 1 m (50 kN per base when used in scaffolding group III in accordance with DIN 4421). This allows high point loads to be transferred to the ground without the need for a denser shoring layout. On bridge projects or when constructing thick industrial slabs, this means fewer towers and less supporting equipment.
Crane relocation without dismantling
An assembled BTU-50 tower up to 10 m high can be lifted by a tower crane and moved to the next concreting area. This eliminates the need for time-consuming dismantling and reassembly every time the tower is repositioned, saving hours of crane and labour time.
Quick and easy assembly
The BTU-50 system is based on just two standard frame sizes. Assembly is intuitive and does not require extensive training. A single worker can assemble the components of one tower. In times of labour shortages, this is a real advantage, allowing the rest of the crew to focus on reinforcement or concreting work.
Compliance with DIN 4421
The BTU-50 meets the requirements of DIN 4421 in all three load classes – I, II and III. On demanding engineering projects where compliance with standards is essential, its verified performance parameters allow the BTU-50 to be used on site with confidence.
Hot-dip galvanized protection
All components of the BTU-50 system are hot-dip galvanized. The zinc coating protects the steel against corrosion, which is especially important on construction sites. After the formwork work is completed, the components are easier to clean, and the equipment can be reused on the next project without the need for refurbishment or replacement.
Ask for a quote for BTU-50 shoring towers – for your construction project or wholesale offer.
We’ll select the required number of components, prepare a quotation and confirm availability within 24 hours. The complete system is available for purchase (large construction projects only).
Make a call
Write on WhatsApp
Ask for a quote for BTU-50 shoring towers – for your construction project or wholesale offer.
We’ll select the required number of components, prepare a quotation and confirm availability within 24 hours. The complete system is available for purchase (large construction projects only).
Call us
+48 786 100 358Write on WhatsApp
Send a message
Indexes of the BTU-50 shoring tower
7120118163
End frame 10
15.67
7120057162
Base frame 133
18.85
7120057173
Base frame 100
15.88
7120148574
Brace
2.8
7120148552
Screw jack base 38/52
8.34
7120148530
Screw jack head 38/52
8.2
7120057161
BTU-50 transport lock
0.05
7460000145
Scaffold tube 48.3 mm 1.00 m
3.6
7400483150
Scaffold tube 48.3 mm 1.50 m
5.4
7400483200
Scaffold tube 48.3 mm 2.00 m
7.5
