Load capacity 50 kN/m²
The permissible pressure is as much as 50 kN/m2.
Bautekk 50 kN light wall formwork
Lightweight formwork for foundations and walls.
Withstands a pressure of 50 kN/m² from liquid concrete mix. Ideal for constructing walls up to 3 m high, footings, and foundation walls.
Up to 3 m in height
Walls up to 3 meters high can be formworked.
Compatibility with Tekko
The panels can be connected with other Tekko-type formwork.
A short note that you can switch to the second tab.
Bautekk formwork
for walls and foundations

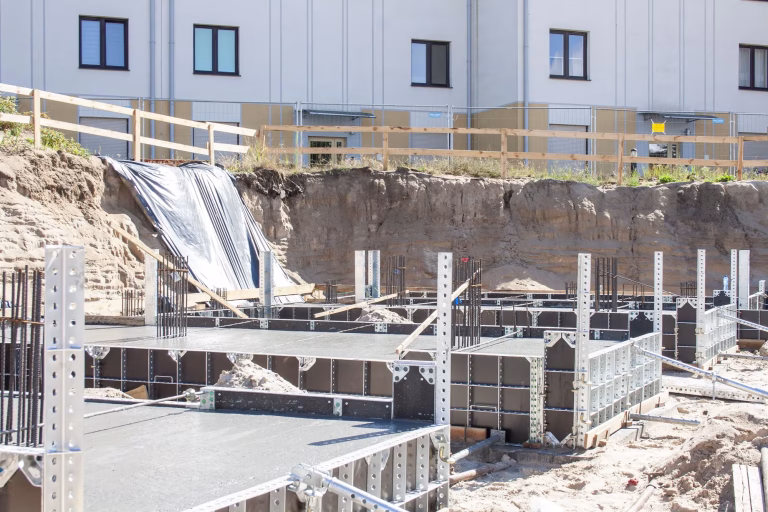

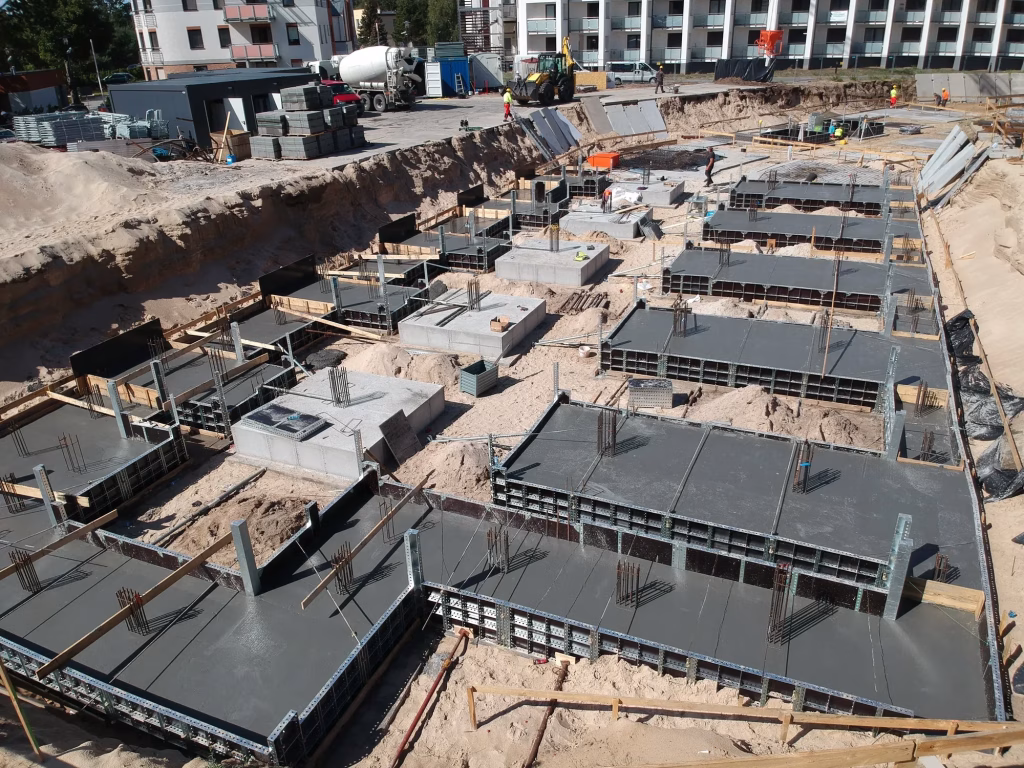

BAUTEKK is a wall formwork system that is ideal for small and medium-sized construction sites. The low weight of the individual panels allows the elements to be moved and assembled without the use of heavy equipment. Despite its lightweight construction, it withstands concrete pressure of 50 kN/m². Ideal for constructing footings and foundation walls, foundation and fence beams, foundation bases, chambers, manholes, tanks, floor joists and floor ribs, floor rings, columns, and reinforced concrete cores.
Technical Information
Panel Width
10/20/25/30/45/50/60/70/75/90
Panel height
90/120/150
Internal corner
15×15 / 20×20 cm
Articulated corner
8 x 8 cm
Frame
8 cm thick steel profile
Shuttering skin
12 mm birch plywood
Max. concrete pressure
50 kN / m²
Standard connectors
Bautekk clamp
Compatibility
Tekko, Pionbox, Budouni, Minibox
Application
Strip footings and foundation walls, sill and fence beams, pad footings, chambers, manholes, tanks, beams and slab ribs, slab ring beams, columns and reinforced concrete cores
Are you interested in Bautekk formwork? Contact us now!
Make a call
Write on WhatsApp
What sets BAUTEKK apart from other formwork systems?
Easy to transport and install
You don’t need heavy or specialized equipment for transport and installation. Two people can carry a single panel, and simple Bautekk connectors are all that’s needed to join them together. Easy installation and removal mean the concrete work is completed faster.

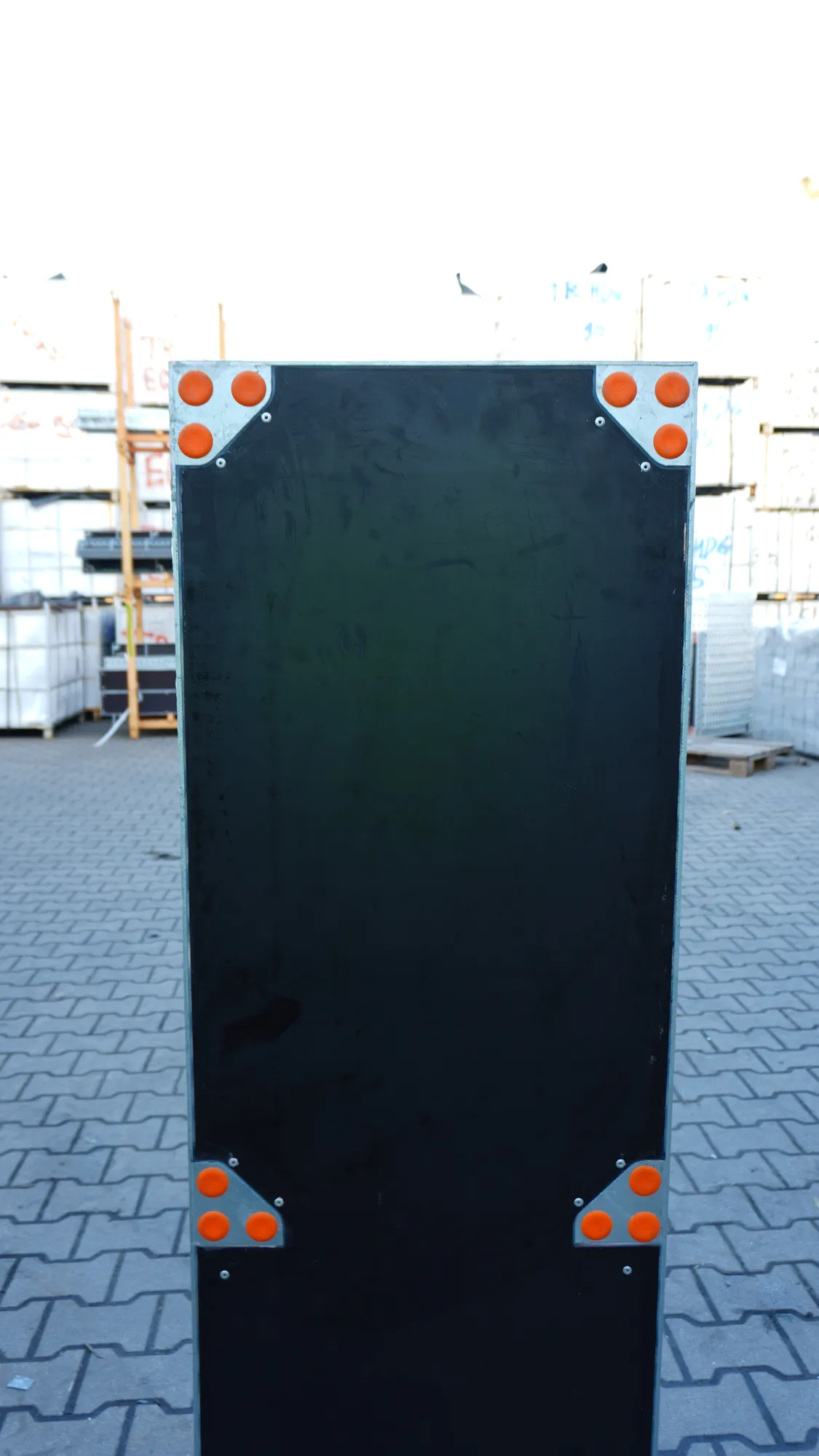

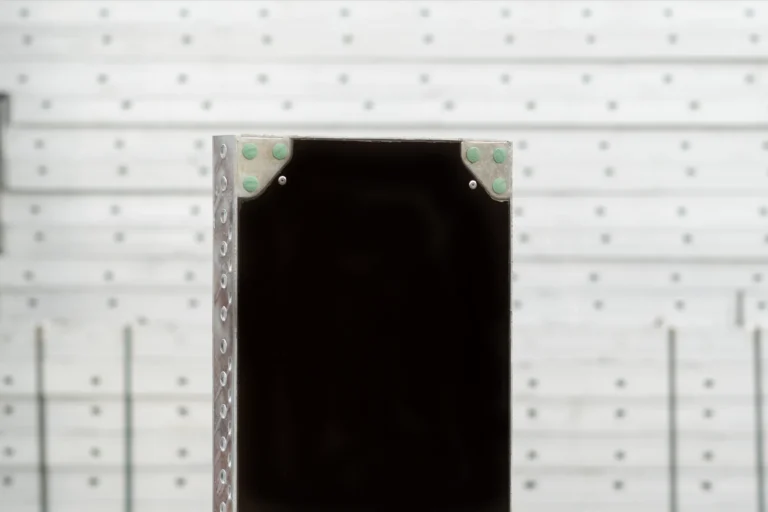

Steel hooves
They protect the plywood from impacts caused by the tie rod as we pull it toward the opposite panel. This significantly extends its service life and increases the formwork’s usable life on the construction site.

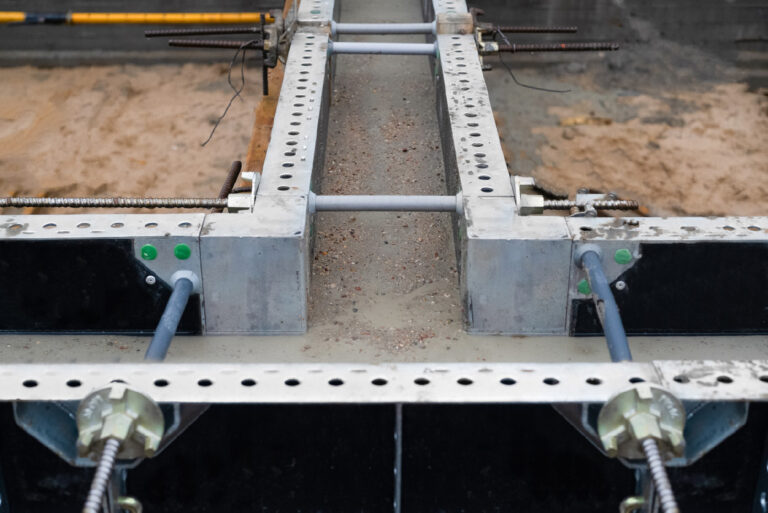

3 through-holes
Three through-holes for tie rods allow you to connect form panels wherever and however you want, even right next to the foundation.

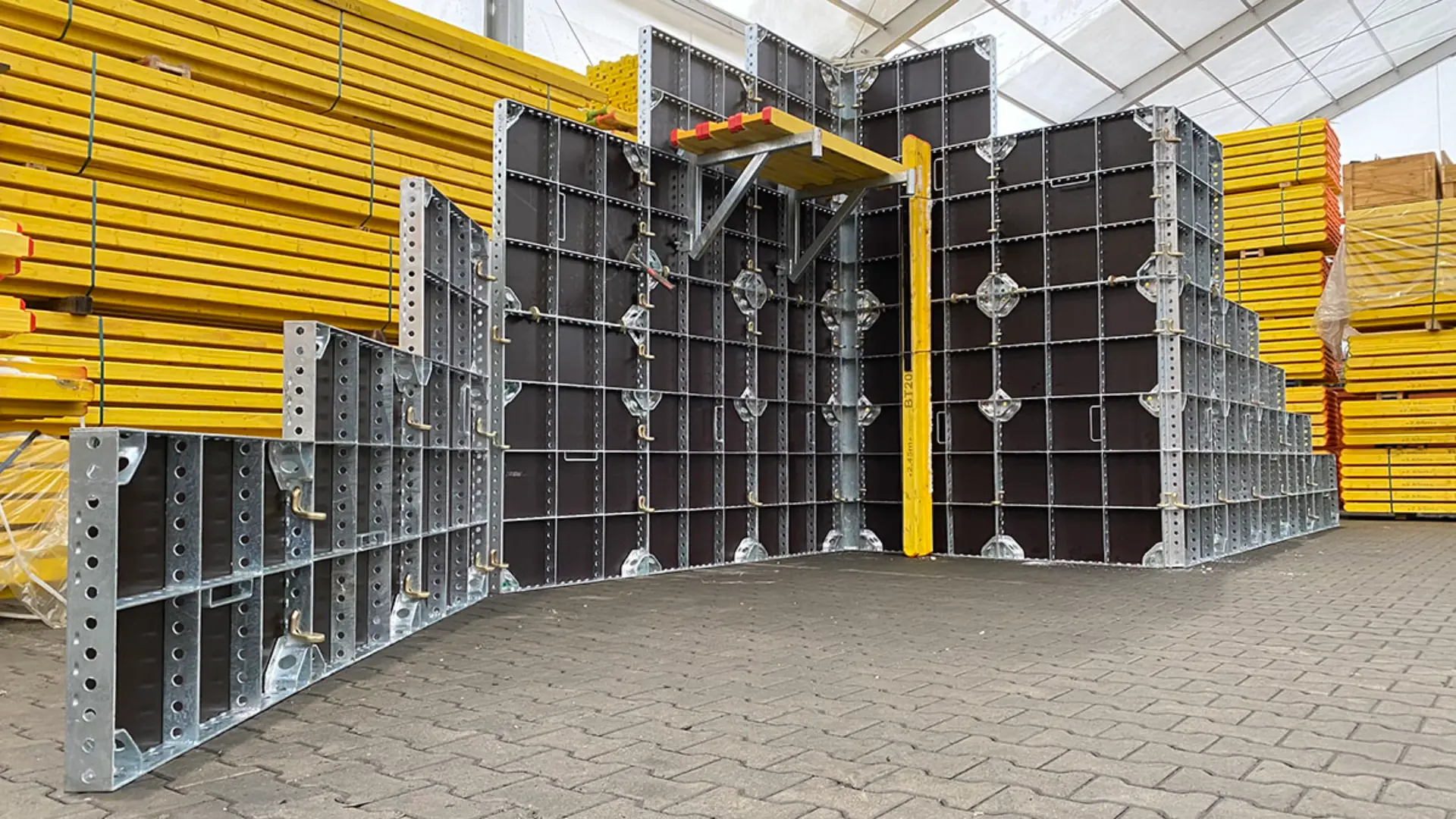

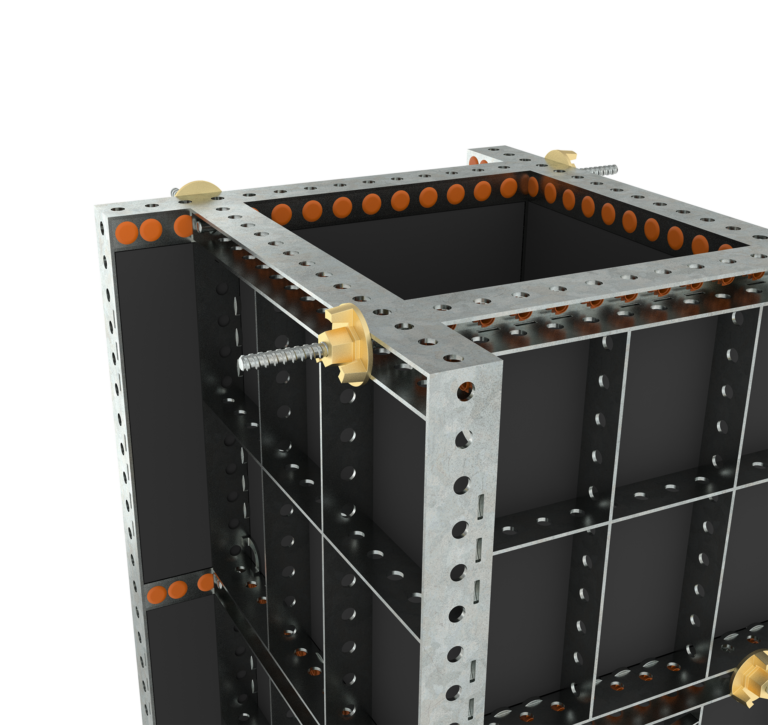

Formwork tailored to the project
Multi-opening formwork panels allow you to create formwork assemblies of various shapes and sizes. The hinged corner joint lets you form walls with different angles. You can easily adapt the formwork to various projects.

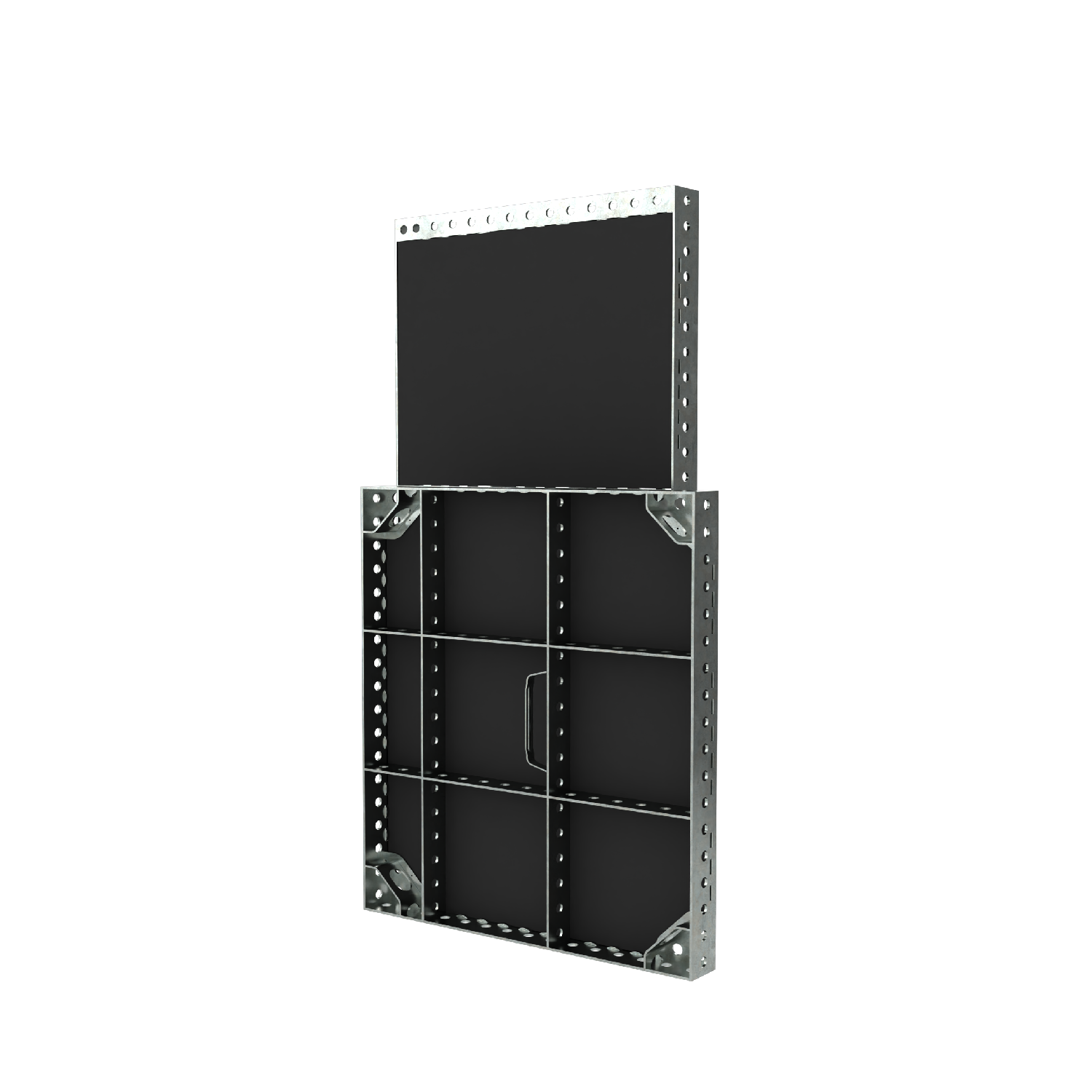

Compatible with Tekko
You can combine Bautekk formwork panels with any other Tekko-type formwork. Use the formwork you already have and pair it with new Bautekk panels.

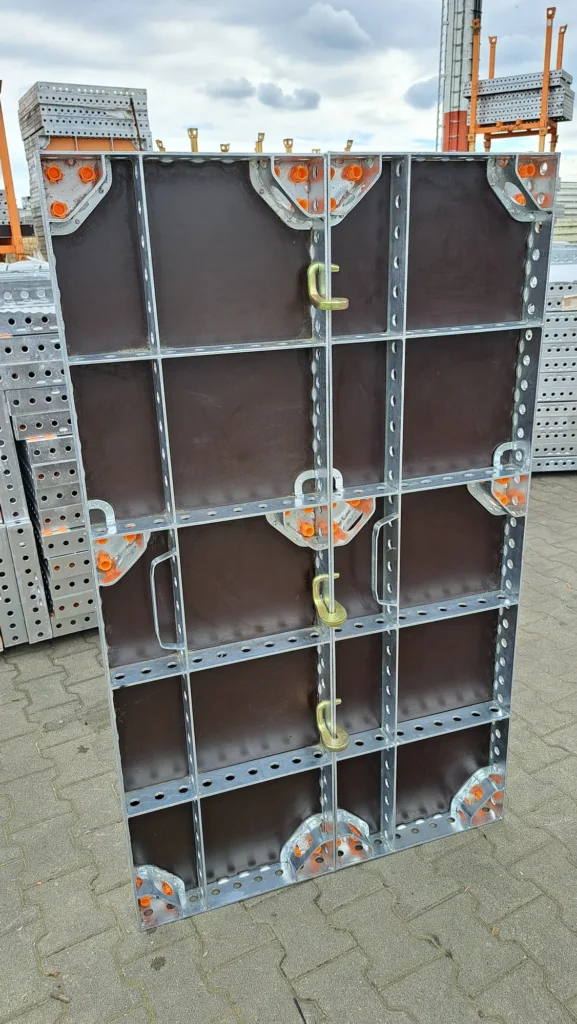

12mm birch plywood
High-quality plywood ensures a longer service life for the formwork. We use only birch plywood, which is durable and moisture-resistant.
Are you interested in the product? Contact us now!
Make a call
Write on WhatsApp
Are you interested in purchasing equipment?
Contact us using phone or WhatsApp.
Call us
+48 786 100 358Write on WhatsApp
Send a message
Sample phrases

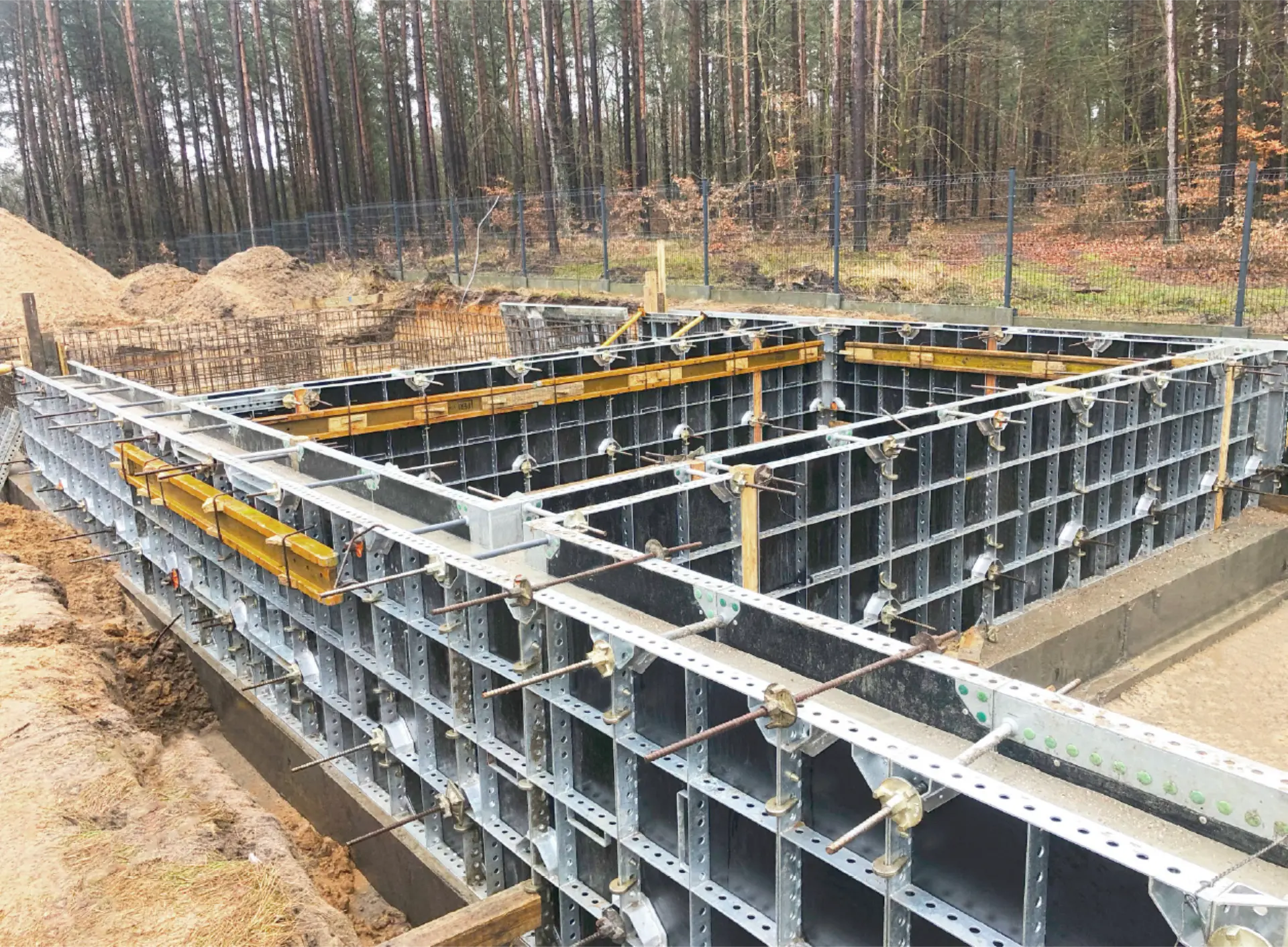

Height: 3 m; 90×150 panels were used, along with BT struts and girder clamps.
Indexes Bautekk
72100S1090
BAUTEKK panel 10×90
10
90
6.96
72100S2090
BAUTEKK panel 20×90
20
90
8.89
72100S2590
BAUTEKK panel 25×90
25
90
11.3
72100S3090
BAUTEKK panel 30×90
30
90
14.49
72100S4590
BAUTEKK panel 45×90
45
90
17.68
72100S5090
BAUTEKK panel 50×90
50
90
18.77
72100S6090
BAUTEKK panel 60×90
60
90
20.52
72100S7590
BAUTEKK panel 75×90
75
90
25.22
72100S9090
BAUTEKK panel 90×90
90
90
27.84
7210S10120
BAUTEKK panel 10×120
10
120
9.07
72130B0150
BAUTEKK external corner 0×150
0
150
10
72130B0120
BAUTEKK external corner 0×120
0
120
8
721300B0090
BAUTEKK external corner 0×90
0
90
6
721300B0060
BAUTEKK external corner 0×60
0
60
5
7210B15150
BAUTEKK internal corner 15×15×150
15
150
25
7210B15120
BAUTEKK internal corner 15×15×120
15
120
21
72100B1590
BAUTEKK internal corner 15×15×90
15
90
16
72100B1560
BAUTEKK internal corner 15×15×60
15
60
12
7210B20150
BAUTEKK internal corner 20×20×150
20
150
28
7210B20120
BAUTEKK internal corner 20×20×120
20
120
24
7270B00001
Bautekk connector
0.6
7270B00004
Bautekk tensioning pin Ø15mm
1.5
7270B00002
Bautekk wedge
0.15
7000000070
Nut Ø70
0.5
7000000100
Nut Ø100
0.8
7000120120
Hinged nut 113×113 square
1.1
7270B00003
Bautekk pin
0.15
7270B00005
Bautekk double pin
0.15
72700B0021
Bautekk corner clamp
0.4
7270015075
DW-15 tie rod 75cm
1.12
