Concrete washer “barrel”

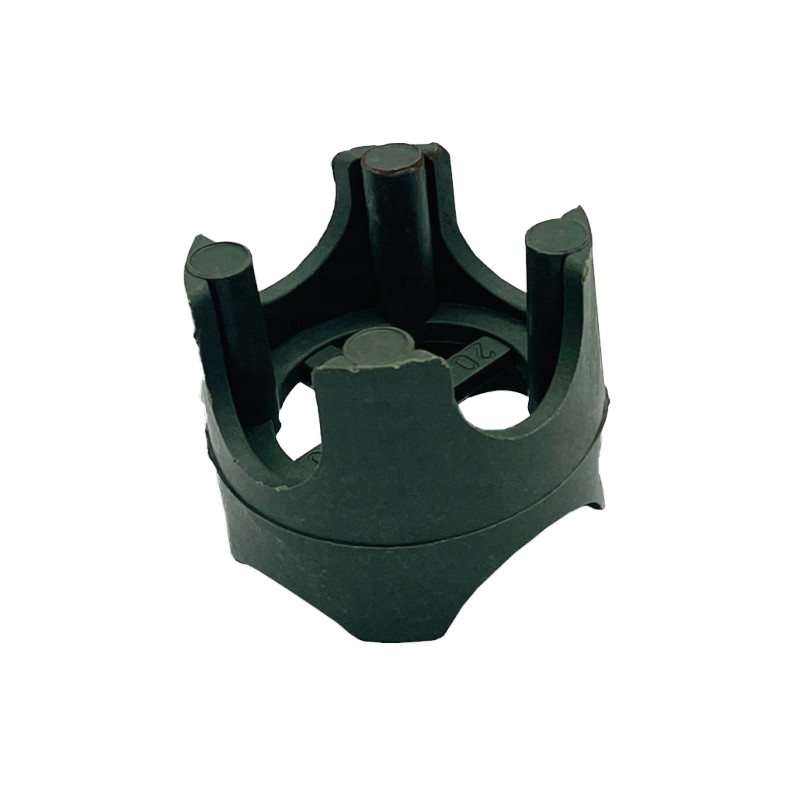

The “Barrel” Reinforcement Spacer is a universal point spacer made of coloured polystyrene, designed mainly for supporting horizontal reinforcement in formwork. Its characteristic barrel-shaped profile with moulded grooves allows several different concrete cover thicknesses to be achieved with a single element, depending on how the reinforcing bar is positioned. The spacer provides stable support and helps prevent reinforcement movement during concreting, while its open structure allows the concrete mix to flow freely and fully surround the reinforcing bars. Its lightweight and simple design make it quick to distribute over large areas. Approximate consumption is around 6–8 pieces per m² of formwork area.

Applications of the “Barrel” Reinforcement Spacer

The “Barrel” Reinforcement Spacer is suitable wherever point support and repeatable concrete cover are required. Suitable for:

• supporting and stabilizing horizontal reinforcement in slabs, floor structures and foundations,
• achieving different concrete cover thicknesses by positioning the reinforcing bar in different grooves,
• reinforcement layouts requiring point spacers instead of continuous spacer bars,
• complementing concrete and plastic spacer systems over larger areas,
• reinforced concrete structures requiring stable positioning of bottom reinforcement.

Technical parameters

• Product type: plastic point spacer / universal reinforcement spacer
• Application: mainly for horizontal reinforcement
• Material: coloured polystyrene
• Available concrete cover ranges:
  • 15 / 20 / 25 mm
  • 20 / 25 / 30 / 35 mm
  • 35 / 40 / 50 mm
• Approximate consumption: 6–8 pieces/m² of formwork area
• Design: open structure allowing unrestricted concrete flow and full concrete coverage of reinforcement
