Plastic line spacer AL

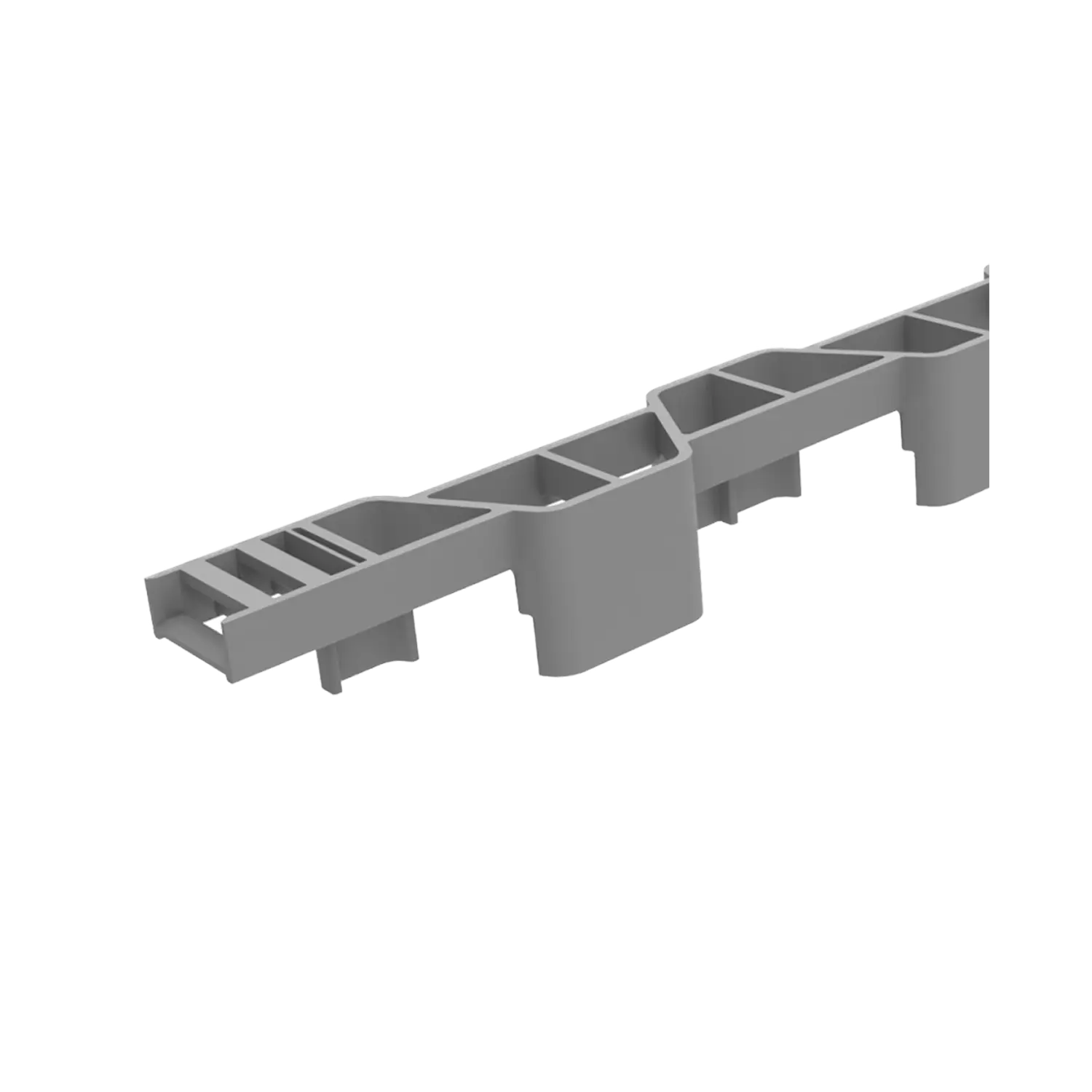

The AL Slab Spacer Bar is a linear spacer designed to support the bottom reinforcement layer in precast and cast-in-place reinforced concrete structures. Made of polyethylene (PE), it withstands contact with fresh concrete and typical installation loads on construction sites. Side openings allow the concrete mix to flow freely around the spacer, helping maintain uniform concrete cover along the entire reinforcement line. Its stable geometry provides a consistent support height, enabling precise positioning of reinforcement according to the design and reducing the risk of local deformation. The push-fit connection system allows multiple spacer bars to be joined quickly into long continuous sections without tools or additional accessories, speeding up reinforcement work on large slab and floor areas.

Applications of the AL Slab Spacer Bar

The AL Slab Spacer Bar is suitable wherever stable linear support of the bottom reinforcement layer and uniform concrete cover are required. Suitable for:

• supporting the bottom reinforcement layer in cast-in-place slabs and reinforced concrete plates,
• supporting reinforcement in precast slabs and beams,
• floor slabs, foundation slabs, balconies and terraces,
• industrial floors and ground-bearing slabs,
• engineering structures and bridge decks with large reinforcement areas,
• use as a horizontal spacer beneath bottom reinforcement.

Technical parameters

• Material: polyethylene (PE)
• Product type: linear reinforcement spacer / slab spacer bar
• Application: support of the bottom reinforcement layer in reinforced concrete structures
• Connection method: push-fit system – quick sequential connection without tools
• Design: side openings allowing unrestricted concrete flow and correct concrete cover
• Available heights:
  • 25 mm
  • 30 mm
  • 35 mm
  • 40 mm
  • 50 mm
• Applications: residential, industrial and civil engineering construction
