PVC Tube cone

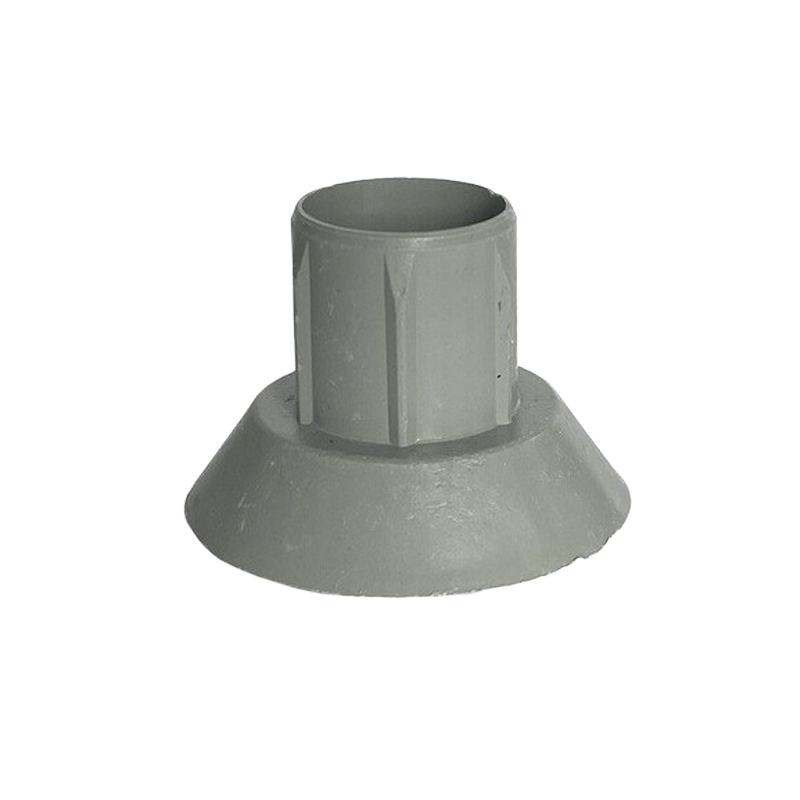

The PVC Plastic Cone 22/10 is a stop cone installed at the ends of Ø22 mm spacer tubes used in wall formwork. It provides stable support for the spacer tube and tie rod, helping to position and stiffen the formwork panels correctly. Its enlarged contact surface distributes pressure over a wider area, reducing the risk of dents and damage to plywood or panel facings. The cone also protects the tie rod from contact with fresh concrete, making later dismantling and reuse easier. Made of durable PVC, it is resistant to typical weather conditions and construction chemicals. After stripping the formwork, the cone can be removed easily and the remaining opening can be sealed with a concrete plug.

Applications of the PVC Plastic Cone 22/10

The PVC Plastic Cone 22/10 is suitable as part of the tie-rod system in wall formwork using spacer tubes. Suitable for:

• stabilizing Ø22 mm spacer tubes between formwork panels,
• maintaining the correct position of tie rods in reinforced concrete walls,
• protecting tie rods from concrete contamination during pouring,
• distributing pressure from the spacer tube and tie rod over a larger formwork surface,
• wall formwork systems using Ø22 mm spacer tubes.

Technical parameters

• Material: PVC resistant to weather conditions and typical construction chemicals
• Application: Ø22 mm spacer tubes
• Function: stop and sealing element at the ends of spacer tubes
• Contact surface: enlarged to reduce the risk of damage to the formwork lining
• Packaging: 500 pieces
• Available variants: for Ø22 mm and Ø26 mm spacer tubes
