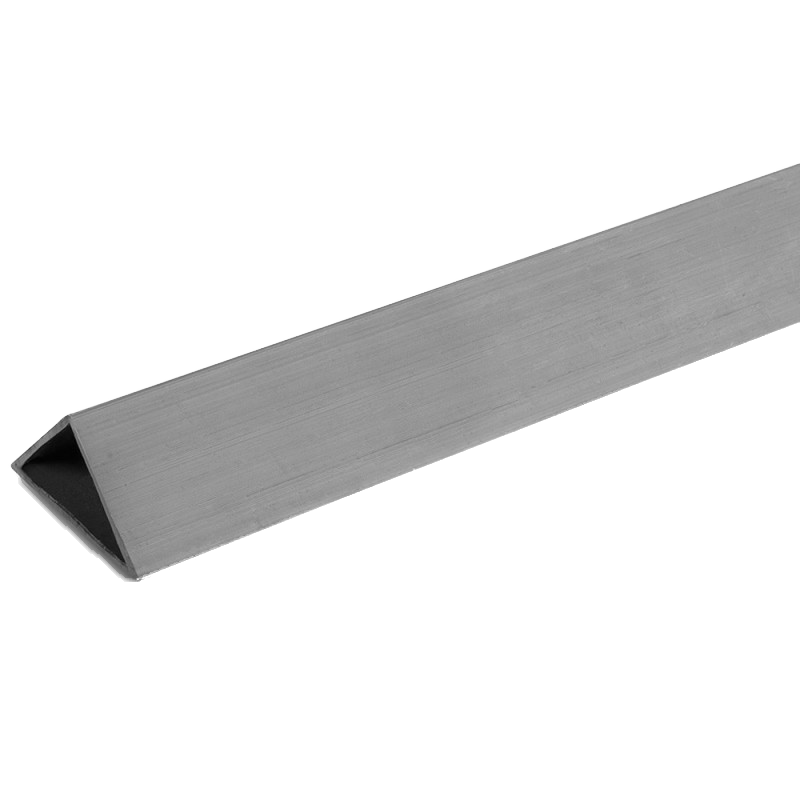

Triangular Plastic Strip

The Triangular Chamfer Strip is a chamfering element designed to shape and protect concrete edges, providing a clean finish while reducing the risk of chipping and damage to corners. Made of polyethylene resistant to damage during installation and concreting, it maintains a stable shape in the formwork and creates an even 45° chamfer. Mounting holes allow quick and precise fixing before concreting. The product is intended for single use and remains a sacrificial element after the concrete has been cast.

Applications of the Triangular Chamfer Strip

The Triangular Chamfer Strip is suitable wherever durable and aesthetically finished concrete edges are required. Suitable for:

• forming chamfered edges on columns, walls and low concrete walls,
• reducing the risk of chipping and damage to sharp concrete edges,
• foundation and plinth formwork,
• chamfering edges of visible reinforced concrete elements,
• applications requiring a clean and uniform finish of concrete corners and edges.

Technical parameters

• Application: chamfering / sacrificial element for shaping concrete edges
• Material: polyethylene resistant to damage during installation and concreting
• Chamfer angle: 45°
• Length of each strip: 2.5 m
• Available dimensions and packaging:
  • 10/10 – 100 m (40 strips × 2.5 m)
  • 15/15 – 100 m (40 strips × 2.5 m)
  • 20/20 – 100 m (40 strips × 2.5 m)
  • 25/25 – 100 m (40 strips × 2.5 m)
  • 30/30 – 50 m (20 strips × 2.5 m)
• Available variants: standard version and tongue version for increased stability in formwork
