Wavy anchor

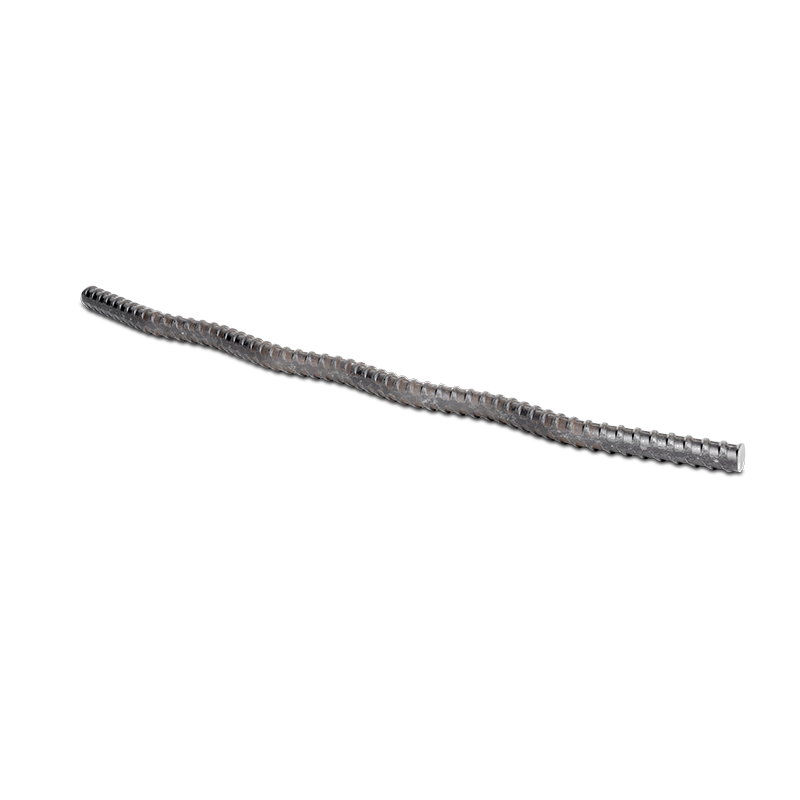

The Wave Anchor is a sacrificial steel anchoring element made of weldable B15 bar with a wave-shaped profile, designed for anchoring single-sided formwork, wall and foundation formwork, and working platforms. The wave-shaped profile increases the contact area with concrete and extends the anchoring zone, reducing the risk of pull-out under high loads and fresh concrete pressure. Its 55 cm length allows secure anchoring in foundation walls, massive concrete elements and foundation footings without the need for additional extensions. The weldable B15 bar can be bent and welded to adapt the anchor shape to specific installation requirements. The anchor is compatible with FCB and FCMB system cones, simplifying installation and later formwork removal. Once the concrete has cured, the cone can be removed while the anchor remains permanently embedded in the structure as a sacrificial element.

Applications of the Wave Anchor

The Wave Anchor is suitable wherever secure anchoring of elements installed on one side of a concrete structure is required. Suitable for:

• fixing single-sided wall and foundation formwork,
• fixing slipform systems,
• anchoring and suspending working platforms and service platforms,
• temporary fixing of auxiliary components to concrete structures,
• applications requiring a sacrificial anchor that can be bent and welded.

Technical parameters

• Material: weldable B15 bar
• Bar profile: wave-shaped
• Anchor length: 55 cm
• Unit weight: 0.85 kg
• Type: sacrificial anchor for permanent anchoring in concrete
• Can be bent: yes
• Can be welded: yes
• Compatibility: FCB and FCMB system cones
