Load capacity 14 kN
Ecoprop economical slab prop for everyday use on site
Slab prop for contractors who need a simple, adjustable and safe solution for typical reinforced concrete works. Easy to use and available in popular lengths of 3.0 / 3.5 / 4.0 / 5.0 m. The external thread with a cast adjustment nut and 10 cm hand protection zone make everyday work easier and reduce the time required for setting and lowering the props. The galvanized construction provides better corrosion protection than standard painted props.
Full hot-dip galvanizing
Smooth height adjustment
For small and medium-sized construction projects
Switch between sections by clicking on the tabs.
Technical specifications
Prop type
300
350
400
500
Outer tube diameter [mm]
60.0
60.0
60.0
60.0
Outer tube wall thickness [mm]
1.8
1.8
2.0
2.0
Inner tube diameter [mm]
50.0
50.0
50.0
50.0
Inner tube wall thickness [mm]
1.8
1.8
2.2
2.2
Base plate thickness [mm]
5.0
5.0
5.0
5.0
Foot plate dimensions [mm]
120×120
120×120
120×120
120×120
Minimum working length [mm]
1750.0
2100.0
2210.0
2800.0
Maximum working length [mm]
3000.0
3500.0
4000.0
5000.0
Weight [kg]
9.4
10.5
13.3
16.0
Delivery and order terms
Shipping to
Poland and EU countries
Delivery method
Full container and pallet loads, delivered directly to the construction site or the customer’s warehouse
Lead time
24–48 hours for items available from stock
Minimum order
1 full pallet / min. 45-55 pcs. depending on the prop height. The number of props is selected according to the project
Offer for contractors and wholesalers
Special terms for contractors and wholesalers – ask for a sales offer
Need a quote for a specific number of props?
Make a call
Write on WhatsApp
Who is the Ecoprop for?
Contractor
Ecoprop is a good choice for single-family homes, smaller buildings and repetitive slab work where you need a prop that is simple to use, easy to handle and more durable than a painted alternative, without investing in equipment designed for the most demanding projects. Smooth height adjustment and the hand protection zone make everyday work on site easier, while the popular 3–5 m length range allows the prop to be adapted to different slab heights.
Distributor and wholesaler
Ecoprop is aimed at small and medium-sized contractors looking for an economical alternative to lightweight powder-coated props. The available length variants cover the most commonly ordered sizes, while the product complements traditional beam-based slab formwork systems well. It is a practical entry-level product for the slab prop category or a useful addition to an existing product range.
How does Ecoprop stand out from other props?

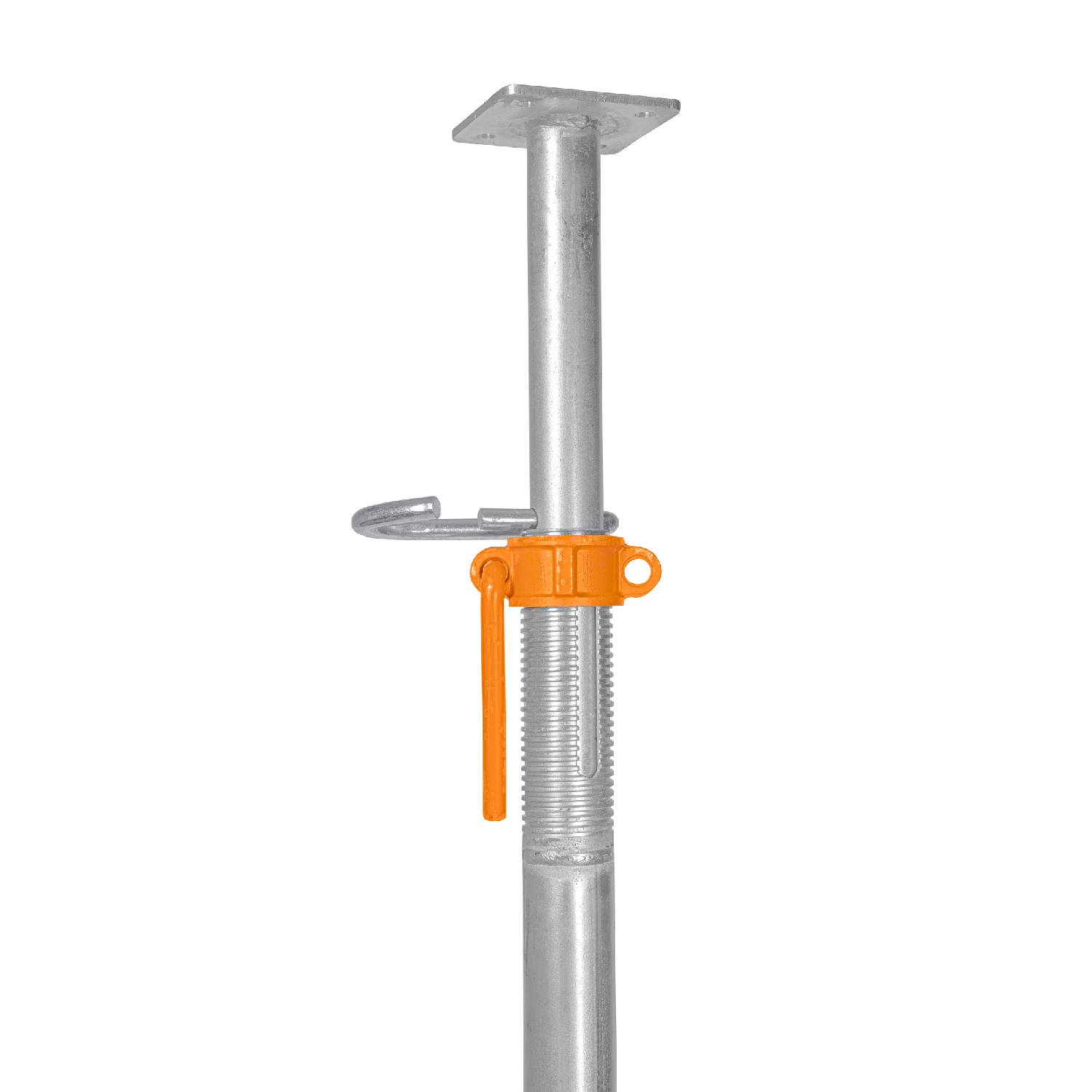

External thread with a cast adjustment nut
The external thread with a cast nut speeds up and facilitates height adjustment, which significantly reduces the time needed to strike the slab formwork.
10 cm hand protection zone
The safety zone protects hands from the unexpected fall of the prop, minimizing the risk of injuries during work.
Hot-dip galvanized prop
Full hot-dip galvanizing of the inner and outer tube extends the service life of the prop and its resistance to difficult weather conditions.
Popular sizes
The prop is available in popular sizes of 3 m, 3.5 m, 4 m, and 5 m.
Ask about the Ecoprop slab prop – quote in 15 minutes
Tell us how many props you need and what height you require. We’ll call you back with the price and current stock availability.
Make a call
Write on WhatsApp
Ask about the Ecoprop slab prop – quote in 15 minutes
Tell us how many props you need and what height you require. We’ll call you back with the price and current stock availability.
Make a call
+48 786 100 358Write a message
Send a message
Indexes of the Ecoprop slab prop
712100E300
ECOPROP 300 PROP
9.4
712100E350
ECOPROP 350 PROP
10.5
712100E400
ECOPROP 400 PROP
13.3
712100E500
ECOPROP 500 PROP
16
Permissible load [kN]
Parameter
ECOPROP 300
ECOPROP 350
ECOPROP 400
ECOPROP 500
Working height of the prop [cm]
300
350
400
500
Allowable load [kN]
15.9
14.2
11
6.3
Failure load [kN]
23.9
21.3
16.5
9.4

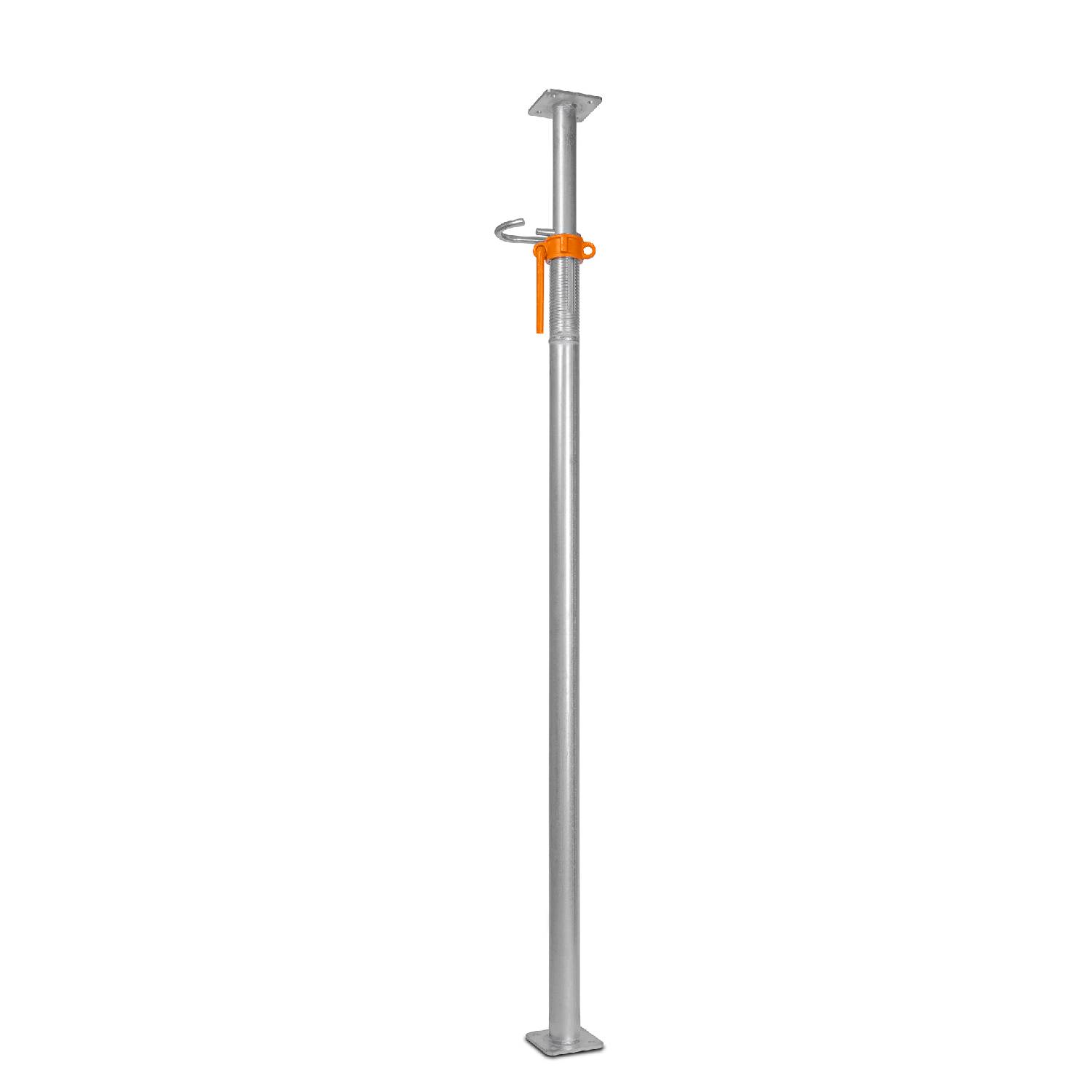

Photo gallery of the Ecoprop slab prop
